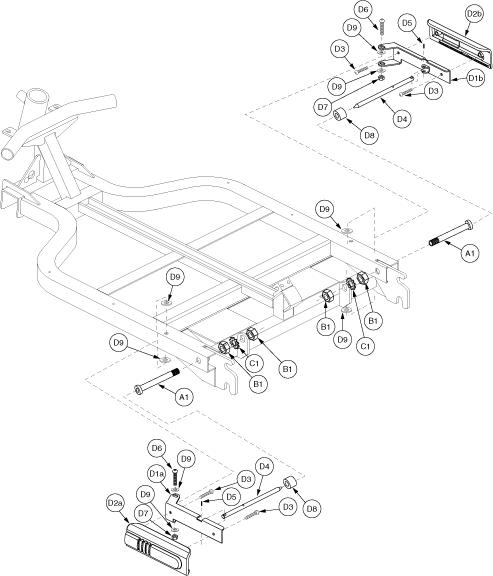

Pride Revo (SC64) - Frame Assemblies - Battery Lock


Pos.
MPN
Details
A1
DWR9995B027

GUIDE TUBE, BATTERY LOCK-UP, SC63/64, B-9995-027

---
B1
NUTJAM1024

NUT, JAM, BLACK ZINC, M10-1.5

---
C1
WASLOCK1044

WASHER, EXTERNAL TOOTH, M10, LOCK

---
D1a - D9
FRMASMB6300

FRAME, ASSY, BATTERY LOCK-UP, LEFT SIDE, SC63/64

---
D1a
DWR9995C008

FRAME, BATTERY LOCK-UP, WELDMENT, LEFT, SC63/64, C-9995-008

---
D2a
DWR9995C013

BATTERY, RELEASE HANDLE, SC63/64, LEFT BATTERY BOX, C-9995-013

---
D1b - D9
FRMASMB6299

FRAME, ASSY, BATTERY LOCK-UP, RIGHT SIDE, SC63/64

---
D1b
DWR9995C010

FRAME, BATTERY LOCK-UP, WELDMENT, RIGHT, SC63/64, C-9995-010

---
D2b
DWR9995C014

BATTERY, RELEASE HANDLE, SC63/64, RIGHT BATTERY BOX, C-9995-014

---
D3
SCRASBH1103

SCREW, BHSCS, BLACK ZINC, M4-.7 X 8MM

---
D4
DWR9995B017

PIN, DETENT, BATTERY LOCK-UP, SC63/64, B-9995-017

---
D5
INDPART2323

ROLL PIN, 4MM X 14MM

---
D6
SCRASBH1069

SCREW, BHSCS, BLACK ZINC, M6-1.0 X 50MM, GRADE 8.8

---
D7
NUTNYLK1019

Monster Scooter Parts

M6-1.0 Black Lock Nut (NUTNYLK1019)

$0.99
View details
D8
DWR9995B029

SPACER, LOCK-UP HANDLE, M7.3 ID X 24.7MM OD X 15.2MM THK, SC63/64, B-9995-029

---
D9
DWR9995A002

SPACER, LOCK-UP HANDLE, M6.5 ID X 14MM OD X 1.0MM THK, SC63/64, A-9995-002

---
