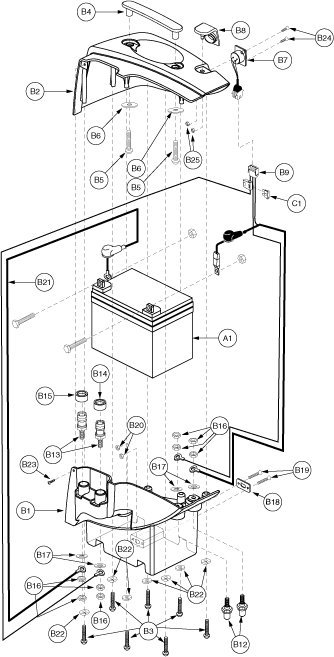

BATTERY, ASSY, BOX, 32 AMP, RIGHT, W/OFFBOARD CHARGER PORT, SC63/64
Universal Power Group
U1 (32 Ah) 12 Volt D5870 Gel Mobility Scooter and Power Chair Battery
ELECTRONIC, ASSY, BATTERY BOX, 32 AMP, RIGHT, W/OFFBOARD CHARGER PORT, SC63/64, W/O BATTERY
BATTERY, BASE, SC63/64, RIGHT BATTERY BOX
BATTERY, COVER, TOP, SC63/64, RIGHT BATTERY BOX, E-9995-012
SCREW, PPH, BLACK ZINC, M4-.7 X 15MM
BATTERY, HANDLE, SC63/SC64, BATTERY BOX, C-9995-012
SCREW, PTH, BLACK ZINC, M6-1.0 X 15MM, GRADE 8.8
WASHER, FENDER, M6
ELECTRONIC, HARNESS, OFF-BOARD CHARGER PORT, SC63/64, H-9995-011
COVER, CHARGER PORT, SC63/64, C-9995-015
ELECTRONIC, HARNESS, BATTERY BOX #1, 10 AMP, B- WIRE, W/FUSE LINK, SC63/64, H-9995-015
REUSABLE FASTENER, HOOK, 25MM W X 85MM L
REUSABLE FASTENER, LOOP, 25MM W X 85MM L
CONTACT, BATTERY, MALE, SC63/64, B-9995-019
CONTACT, BATTERY, FEMALE, SC63/64, B-9995-020
COVER, BATTERY CONNECTOR, RED, POSITIVE, SC63/64, A-9995-006
COVER, BATTERY CONNECTOR, BLACK, NEGATIVE, SC63/64, A-9995-006
NUT, JAM, ZINC, M6-1.0
WASHER, BATTERY CONTACT, COPPER W/TIN PLATING, 5.94MM ID X 15.88MM OD X 1.63MM THK, A-9995-009
FRAME, LOCK PLATE, BATTERY LOCK UP, SC63/64, B-9995-018
SCREW, SHFH, BLACK ZINC, M3.5-.6 X 10MM
Pride Mobility
NUT, HEX, THIN, M3.5X0.6, ISO 4035, CL 04, ZINC (NUTJAM1020)
ELECTRONIC, HARNESS, 6", W/2 WIRE CORD, BATTERY BOX #1, B+WIRE, SC63/64, H-9995-002
Monster Scooter Parts
Hub Assembly Washer Lock for the Jazzy Select (WASLOCK1045)
SCREW, PFH, BLACK ZINC, M4 X 10MM, THREAD CUTTING
SCREW, PFH, BZ, M3-.5 X 10MM
NUT, NYLOCK, BLACK ZINC, M3-.5
Pride Mobility
ELECTRONIC,FUSE,10 AMP,ATO (AUTOMOTIVE TYPE),(LITTELFUSE: 257010)
