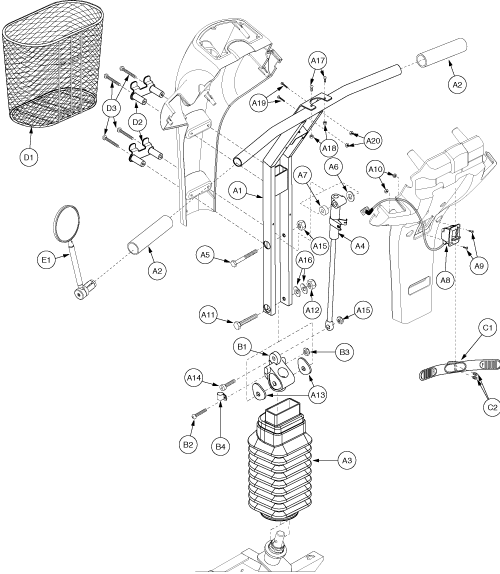

TILLER, ASSY, INFINITE ADJUSTMENT, LEGEND 2000
TILLER, WELDMENT 4WHEEL
HAND GRIP, BLACK, FOAM, 5-9/16"L, SMOOTH
TILLER, BOOT, RUBBER, BLACK, 9 RING, RECTANGULAR TOP
Monster Scooter Parts
Tiller Actuator for the Pride Celebrity XL, Hurricane, Legend, Legend XL, and Maxima (INDPART2050)
SCREW, HHCS, ZINC, 5/16-18 X 2.00", GRADE 5
SPACER, NYLON, 5/16"ID X 3/4"OD X 3/16"TH
SPACER, NYLON, 5/16"ID X 3/4"OD X 1/2"TH
LEVER, ASSY, TILLER, INFINITE ADJUSTMENT, W/11" CABLE & SPRING CLIP
NUT, NYLOCK, ZINC, 8-32
SCREW, HHCS, BLACK ZINC, M8-1.25 X 58MM, G5
NUT, NYLOCK, BLACK ZINC, M8-1.25
WASHER, TILLER BLOCK, .344"ID X .125 THICK, IRREGULAR SHAPE, A-9900-005
SCREW, SHCS, 5/16-18 X 1 1/4" BO
Pride Mobility
WASHER, REGULAR SPRING LOCK, .375 ID X .68 OD X .094 THK, ASME B18.21.1, STEEL, ZINC (WASLOCK1002)
SCREW, PPH, 6-32 X 1/2", G5
NUT, NYLOCK, 6-32
NUT, NYLOCK, ZINC, M3-.5
TILLER, ASSY, INFINITE ADJUSTMENT TILLER BLOCK
TILLER, BLOCK, PIVOT, BRONZE, W/BORED TILLER STOPS, C-9900-028
Pride Mobility
SCREW, BUTTON HEAD, .250-20 X 1.25, ASTM F835, BZ (SCRASBH1005)
NUT, NYLOCK, ZINC, 1/4-20
LEVER, ASSY, THROTTLE CONTROL, 7", SOFT-GRIP PLASTIC
LEVER, THROTTLE CONTROL, BLACK, PLASTIC, WITH MOLDED THUMB PADS, LEGEND, SC3000/SC3400, D-9940-008
SCREW, SET, M4-.7 X 6MM
BASKET, ASSY, TILLER, LEGEND 2000, PE COATED
BASKET, OVAL, TILLER, 10 1/4" L X 14" W X 9" L, ANGLED FRONT (E-1000-113)
BRKT, BASKET, WELDMENT, LEG 2000, POWDER COAT
Monster Scooter Parts
8-32x2" Black Pan Head Self-Tapping Machine Screw (SCRPPTC1018)
MIRROR, REAR VIEW, FLEXIBLE STALK, LENS, (MR3200)
