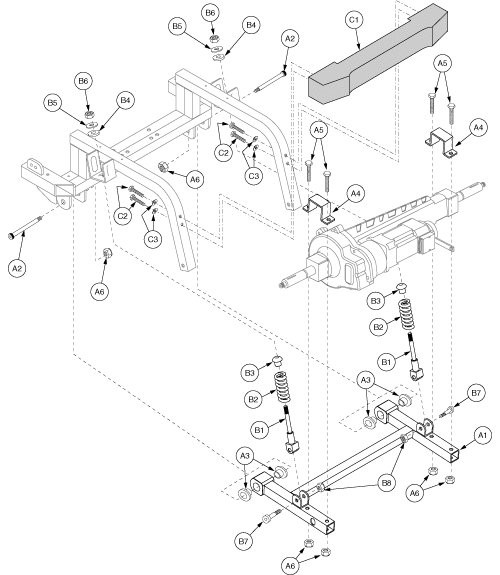

FRAME, ASSY, TRAIL ARM, LEGEND 2000

H-FRAME WELDMENT, LEGEND2000

BOLT, SHOULDER, 3/8"D 3/8-16, 1 1/2"

BUSHING, MOTOR MOUNT, OIL IMPREG. BRONZE, .75" FLANGE OD X .503" SHAFT OD X .378" ID X .5" DEPTH X .094" FLANGE DEPTH, A-9900-004

MOUNTING BRACKET, TRANSAXLE, CELEBRITY 99, A-9900-003

SCREW, HHCS, ZINC, 5/16-18 X 1.75", GRADE 5

SUSPENSION, ASSY, STRUT, LEGEND 2000

STRUT, SPRING, 5/16-24 X 4.06"

SPRING, RAW, 2.5" X .187"WIRE DIA, COMPRESSION

BALL PIVOT, SPRING ROD, A-1200-023
Pride Mobility
WASHER,DAMPER,POLYURETHANE,0.330" ID X 0.90" OD X 0.130" TH,5/16",A-1010-012 (WASDAMP1000)

WASHER, FLAT, ZINC, 1/4, 0.3125" ID X0.75" OD X 0.0625" TH

NUT, NYLOCK, 5/16-24

BOLT, SHOULDER, 3/8" X 1.00"

BUMPER, ASSY, REAR, LEGEND 2000

BUMPER, REAR, LEGEND 2000, MOLDED, E-9600-014

WASHER, LOCK, ZINC, 1/4"
