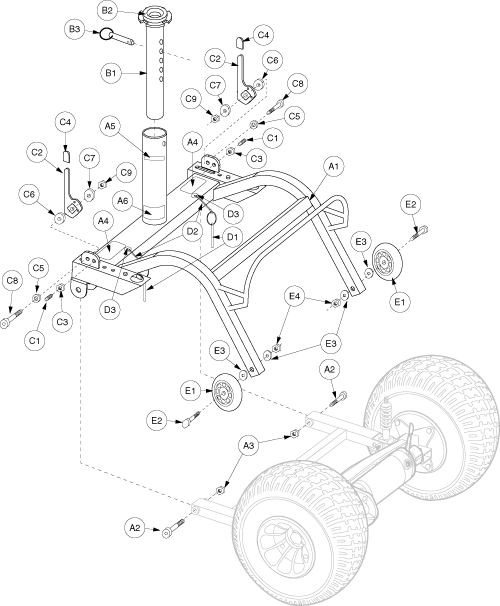

Pride Celebrity X (SC440) - Rear Frame - C-83201 - C-83301 & C-83400 - Sub.

FRAME, ASSY, REAR WELDMENT, DUAL CAM, CEL '99, W/SEAT POST

FRAME, REAR, CELEB 99, WITH SEAT POST

BOLT, SHOULDER, 1 1/2" X 3/8"

DECAL, WARNING-BOTH LOCK PINS

DECAL, PATENT PENDING, 3/8" X 2 1/4"L, L-1234-100

DECAL, SERIAL NUMBER, CELEBRITY, NON-XL

SEAT POST, ASSY, UPPER, 5 HOLE

SEAT POST, UPPER, FRAME, B-5100-009

SEAT POST, BUSHING, 1.000" ID X 1.310" OD X 2.112" TH X 2.00" FOD X 0.312"FTH, UPPER, A-5000-043

Monster Scooter Parts

3/8" x 3-3/8" Quick Release Seat Pin for Pride and Jazzy Rear Basket Assemblies

HANDLE, ASSY, CAM, PAINTED W/HARDWARE

BALLPLUNGER+FILM, 5/16-18X37/64

CAM HANDLE, STYLE#9 W/ INSERT

NUT, JAM, 5/16-18

COVER, HANDLE, CAM

WASHER, FLAT SAE, 1/4"ID 7/16"OD 1/16"T

WASHER, NYLON, 1/4"ID X 3/4"OD X 1/8"T

WASHER, FLAT, ZINC, 0.25"ID X 0.75"OD X 0.0625"TH

Pride Mobility

BOLT,SHOULDER,1/4" X 0.50" (BLTASHL1006)

NUT, NYLOCK, 10-24

DETENT RING, ASSY, 1/4" X 2", W/LANYARD

Monster Scooter Parts

1-1/2" Quick Release Pin

LANYARD, SS BALL CHAIN, #10X4.5"

RIVET, ALUM RIV/MAND, #44 1/8D X 1/4G

WHEEL, ASSY, ANTI-TIP, 3", SOLID COMPOSITE

Monster Scooter Parts

72mm Front Anti-Tip Wheel Assembly with Bearings for Jazzy & Pride Scooters & Power Chairs (WHLATIP1004)

SCREW, HHCS, 5/16-18 X 2 3/4"

WASHER, FLAT, ZINC, 1/4, 0.3125" ID X0.75" OD X 0.0625" TH

Monster Scooter Parts

5/16-18 Lock Nut (NUTNYLK1005)

FRAME, ASSY, CROSS, AXLE, WITH SUSPENSION, 99
