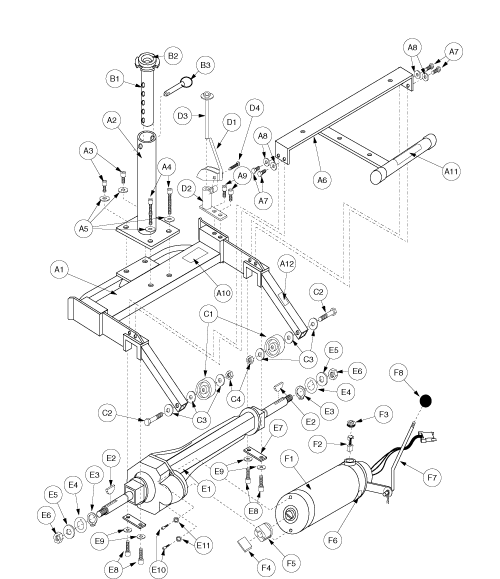

Pride Celebrity X (SC440) - Drive System - Drive Train - C-69999 - Prior


Pos.
MPN
Details
A1 - A12
FRMASMB1578

FRAME, ASSY, REAR, 3/4 WHL CELEBRITY

---
A1
FRM5001D002

FRAME, MAIN, REAR

---
A2
SET5106B000

SEAT POST, LOWER, FRAME

---
A3
BLTASHL1007

BOLT, SHOULDER, 8MM X 12MM

---
A4
BLTASHL1013

BOLT, SHOULDER, 8MM X 40MM, GRADE 5

---
A6
BRK5034C000

FRAME, SUPPORT, ELECTRONICS

---
A7
SCRHHCS1007

SCREW, HHCS, M6-1.0 X 12MM, G2

---
A8
WASLOCK1000
View details
A9
SCRSHCS1008

SCREW, SHCS, BLACK OXIDE, 1/4-20 X 1/2"

---
A10
DECINDV1007

DECAL, STOP! DISCONNECT PLUG

---
A11
DECINDV1006

DECAL, THIS IS NOT A HANDLE

---
A12
DECINDV1005

DECAL, DO NOT REMOVE ANTI-TIP

---
B1 - B3
FRMASMB1001

SEAT POST, ASSY, UPPER, 5 HOLE

---
B1
SET5109C000

SEAT POST, UPPER, FRAME, B-5100-009

---
B2
BSHFLNG1000

BUSHING, SEAT PEDESTAL, C-1000-416

---
B3
PINCOTD1006

Monster Scooter Parts

3/8" x 3-3/8" Quick Release Seat Pin for Pride and Jazzy Rear Basket Assemblies

$4.99
View details
C1 - C4
WHLASMB1239

WHEEL, ASSY, ANTI-TIP, 2"

---
C1
WHLATIP1000

WHEEL, ANTI-TIP, LEGEND/CELEBRITY

---
C2
SCRHHCS1043

SCREW, HHCS, 1/4-20 X 2.50", GRADE 5

---
C3
WASSTND1001

Pride Mobility

WASHER,FLAT,ZINC,1/4"ID X 9/16"OD X 1/16"T (WASSTND1001)

$3.29
View details
C4
NUTNYLK1003

NUT, NYLOCK, ZINC, 1/4-20

---
D1 - D4
FRMASMB1010

CAM, ASSY

---
D1
BRK5017D011

FRAME, LOCKUP, LEVER

---
D2
BRK5017D012

FRAME, LOCKUP, BASE

---
D3
IND5017D007

CAM NUT/WASHER

---
D4
SCRASBH1007

Pride Mobility

SCREW, BUTTON HEAD, .250-20 X 1.5, FT, ASTM F835, BZ (SCRASBH1007)

$3.29
View details
E1 - F8
DRVASMB1152

MOTOR, ASSY, DRIVE TRAIN, OLD STYLE LEG/CEL

---
E1 - E11
DRVASMB1002

TRANSAXLE, ASSY, COMPLETE

---
E1
DRV1001

TRANSAXLE, LONG SHAFT

---
E2
KEYSTL1006

Monster Scooter Parts

3/16" x 3/16" x 7/8" Axle Key (KEYSTL1006)

$2.25 $2.99
View details
E3
RNGRTAN1002

Pride Mobility

RING, RETAINING,3/4" (RNGRTAN1002)

$3.29
View details
E4
WASSTND1020

WASHER, ZINC, .750"ID X 1.25"OD X .030"THK, STAMPED W/KEYWAY

---
E5
WASSTND1013

WASHER, FLAT, ZINC, 9/16"ID X 1"OD X 1/16"

---
E6
NUTNJAM1001
View details
E7
AXL5014C003

TRANSAXLE PLATE

---
E8
SCRSHCS1019

SCREW, SHCS, ZINC, 5/16-18 X 1.00"

---
E9
WASLOCK1001

WASHER, LOCK, 5/16"ID X 7/16"OD X 1/16"T

---
E10
SCRSHCS1007

SCREW, SHCS, BLACK OXIDE, 1/4-20 X 1 1/4"

---
E11
WASINTH1000

WASHER, SAE, 1/4"ID, INTERNAL TOOTH

---
F1 - F8
DRVASMB1003

MOTOR, ASSY, BRAKE, SHORT CORD

---
F1
DRVMOTR1002

MOTOR, MOTOR W/SHORT CORD

---
F2
DRVBRSH1001

MOTOR, BRUSH, RELIANCE

---
F3
INDPART1103

MOTOR, BRUSH, CAP, RELIANCE

---
F4
INDPART1776

KEY, MOTOR COUPLER, 3/8" X 41/64" X 3/64", (110636YM)

---
F5
INDPART1696

MOTOR COUPLER, NYLON, (229007)

---
F6
DRV1003

TRANSAXLE, BRAKE, RELIANCE, MAGNATEK

---
F7
BRA5035A000

FREEWHEEL, ROD

---
F8
PLSKNCP1001

KNOB, 1" DIA, PLASTIC, BLACK, ROUND, FREEWHEEL

---
