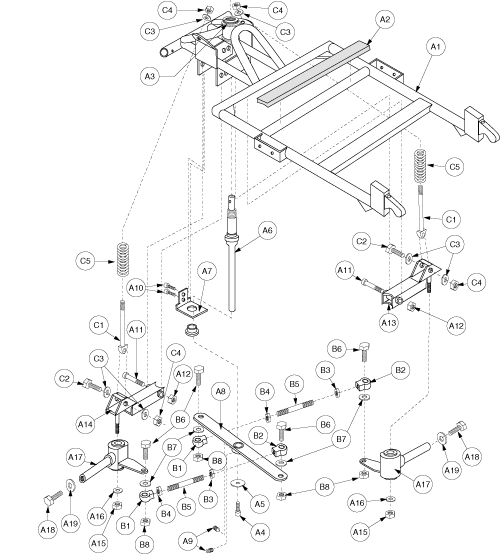

Pride Celebrity X (SC440) - Front Frame 4 Wheel - C-69999 - Prior

FRAME, ASSY, FRONT, SC440

FRAME, MAIN FRONT

SEAT, 3/4"W X 1/2"THICK

Monster Scooter Parts

Headset Steering Bearing Kit for Go-Go and Pride Mobility Scooters (HDWASMB1000)

SCREW, SHCS, BLACK OXIDE, 1/4-20 X 1/2"

Pride Mobility

WASHER, FLAT,ZINC,1/4"ID X 1"OD X 1/16"T (WASSTND1010)

AXLE, STEERING ROD, SC340

AXLE, STEERING ROD, GUIDE, SC340

FRAME, ARM, CENTER STEERING

Pride Mobility

SCREW, SET, CUP POINT, .250-20 X .25, ASTM F912, BO (SCRSETS1013)

SCREW, SHCS, 1/4-20 X 0.50", GRADE 2

BOLT, SHOULDER, 3/8-16 X 2.50", GRADE 2

NUT, NYLOCK, ZINC, 1/4-20

AXLE, XL WELDMENT, RIGHT

AXLE, XL WELDMENT, LEFT

NUT, NYLOCK, BLACK OXIDE, 5/16-18

WASHER, FLAT, ZINC, 5/16"ID X 7/8"OD X 1/16"T

FRAME, ASSY, AXLE, BLOCK, B-6000-018

SCREW, HHCS, 3/8-16 X 1.00", GRADE 2

WASHER, FLAT, ZINC, 3/8"ID X 7/8"OD X 1/16"T

ROD, 5/16-24 X 4 3/4", WITH HARDWARE

TIE ROD END, 5/16"-24, LEFT HAND THREAD

TIE ROD END, 5/16-24, THREADED, RIGHT HAND

NUT, 5/16-24

NUT, 5/16-24, LEFT HAND THREAD

TIE ROD, 5/16-24 X 4 3/4"

Pride Mobility

SCREW,HHCS,ZINC,5/16-18 X 1",GRADE 5 (SCRHHCS1009)

WASHER, FLAT, ZINC, 5/16"ID X 3/4"OD X 1/16"T

SPRING, ASSY, STRUT, NON-XL (4W)

FRAME, ASSY, STRUT, SPRING

SCREW, HHCS, 5/16-18 X 2", G2

WASHER, FLAT, ZINC, 7/16"ID X 7/8"OD X 1/16"T

Monster Scooter Parts

5/16-18 Lock Nut (NUTNYLK1005)

SPRING, ORANGE, STRUT, NON-XL
