Pos.

MPN

Details

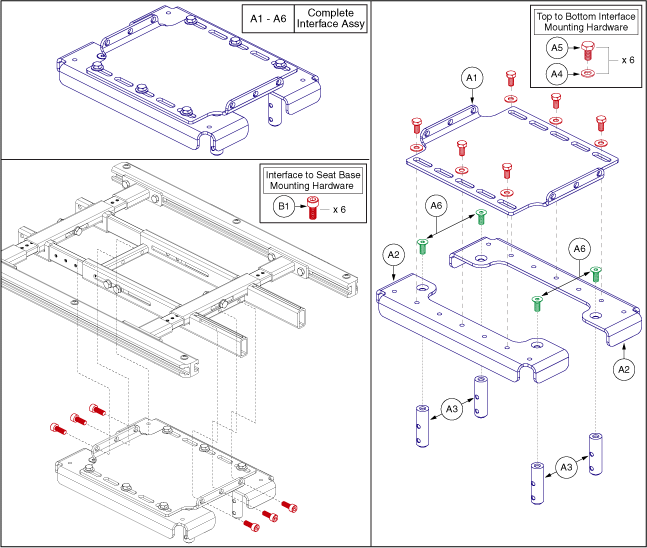

A1 - A6

SET1711139

Pride Mobility

SEAT PLATE,ASSY,SEAT ONLY INTERFACE,TRU-BALANCE 3,J6 (SET1711139)

$577.49 ~~$817.75~~

A1

MEC1710813

Pride Mobility

SEAT ONLY INTERFACE,TOP,TRU-BALANCE 3,J6 (MEC1710813)

$91.29 ~~$92.10~~

A2

MEC1710812

Pride Mobility

SEAT ONLY INTERFACE,BOTTOM,TRU-BALANCE 3,J6 (MEC1710812)

$162.79 ~~$196.38~~

A3

MEC1710811

Pride Mobility

UPRIGHT BAR,2 HOLE (MEC1710811)

$7.69 ~~$7.98~~

A4

WASMETR1136

Pride Mobility

WASHER, FLAT, 8.2 ID X 19 OD X 1.4 THK, (SEE DRAWING) (WASMETR1136)

$3.29

A5

SCRHHCS1412

Pride Mobility

SCREW, HEX HEAD, M8X1.25 X 16, ISO 4014, CL 10.9, BZ, PVTP (SCRHHCS1412)

$3.29

A6

SCRSHFH1203

Pride Mobility

SCREW, FLAT HEAD, M8X1.25 X 20, ISO 10642, CL 10.9, BZ, PVTP, C-1005-099 (SCRSHFH1203)

$3.29

B1

HDW125250

Seat Mounting Screws for the Jazzy Air Power Chair, shown in a group with varying close-ups, are essential for attaching the seat base to the power chair, featuring precise threading and sturdy design.

Monster Scooter Parts

Seat Mounting Screws for the Jazzy Air Power Chair (HDW125250)

$3.29
