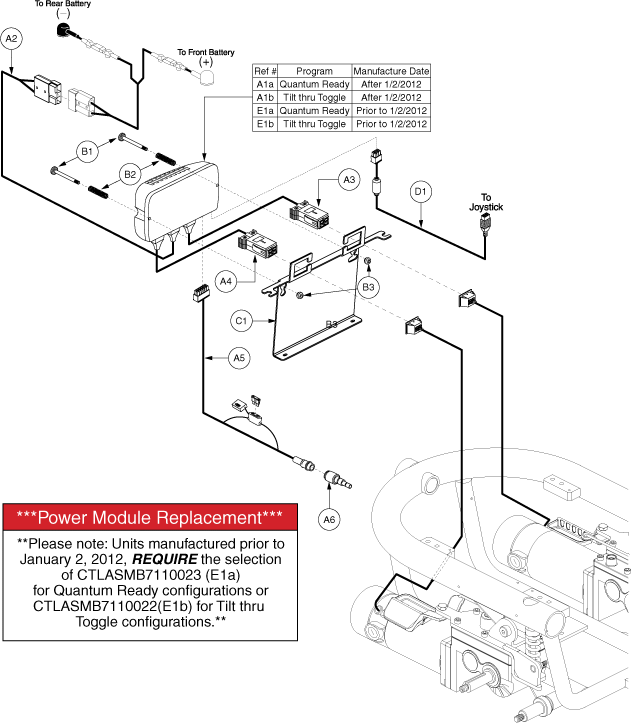

Jazzy J6 - Electronics / Module - Q -Logic - Tru -Balance Pwr. Positioning - Actr. Function Through Toggle Or Future Actr. Expansion

ELECTRONIC, ASSY, Q-LOGIC, J6, QUANTUM

Pride Mobility

ELE145398 - Q-Logic Electronics Assembly, J6, Tilt Thru Toggle

Pride Mobility

ELEASMB6968 - Q-Logic Curtis 70 Amp Controller Assembly, J6, Quantum

Pride Mobility

ELEASMB6967 - Q-Logic Curtis 70 Amp Controller Assembly, J6

Pride Mobility

DWR1056H027 - Q-Logic Curtis Power Cable Harness, Jazzy 600/Quantum 600

Pride Mobility

DWR1056H028 - Left Q-Logic Curtis Motor Controller Harness, Jazzy 600/Quantum 600

Pride Mobility

DWR1056H029 - Right Q-Logic Curtis Motor Controller Harness, Jazzy 600/Quantum 600

Pride Mobility

DWR1265H021 - Curtis Power Take Off (PTO) and Inhibit Harness

Pride Mobility

DWR1361H038 - Run Plug Harness, Sure Seal, Synergy Tilt for Quantum 4Front, Q6 Edge 2.0 & Q6 Edge HD Power Chairs

Pride Mobility

HDWASMB1059 - Quick Release Button Assembly, Power Module for Quantum 610, 600 & R4000 & R4400 Power Chairs

POWER MODULE BUTTON SCREW, B-1056-023

SPRING, COMPRESSION, BRIGHT ZINC, 1.50" FL X 0.30'' OD X 0.038" WIRE DIA X RATE:13.5LBS/IN, MUSIC WIRE, B-1054-041, (MCMASTER CARR:9434K62)

POWER MODULE BUTTON, B-1056-033

Pride Mobility

DWR1054D054 - Power Module Mounting Bracket for Quantum 610 Power Chairs

Pride Mobility

DWR1111H065 - Curtis Bus Extension Cable, 0.41m, Male/Female (17881303)

Pride Mobility

CTLASMB7110023 - Q-Logic Curtis 70 Amp Controller Assembly (FW 2.73), J6, Quantum

Pride Mobility

CTLASMB7110022 - Q-Logic Curtis 70 Amp Controller Assembly (FW 2.73), J6
