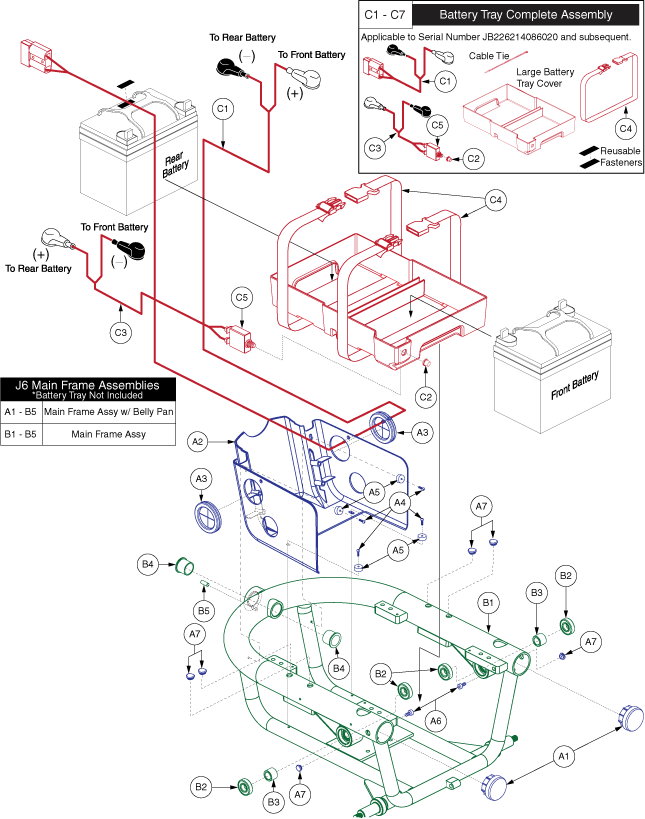

Jazzy J6 - Main Frame / Battery Tray - Main Frame, Standard

Pride Mobility

FRMASMB8469 - Main Frame Assembly

Pride Mobility

DWR1054C012 - Main Tube Cap for Quantum 610 Power Chairs

Pride Mobility

DWR1054E006 - Belly Pan Shroud for Quantum 610 Power Chairs

GROMMET, RUBBER, HOLE, B-1054-024

Pride Mobility

SCRPPH1318 - M4 x 0.7 x 16mm Pan Head Screw

SPACER, BLACK, NYLON, 4MM ID X 12.7MM OD X 8MM TH, A-1054-011

Pride Mobility

SCRSHCS1122 - Black Zinc Socket Head Screw, M8 x 1.25 x 16, ISO 4762, CL 12.9 for Quantum 600 Power Chairs

Pride Mobility

MEC131368 - 10mm Frame Plug, Proecap

Pride Mobility

FRMASMB8470 - Frame and Bearing Assembly

FRAME, WELDMENT, MAIN, E-1054-026

Pride Mobility

DWR1101A019B - Ball Bearing, 12 ID x 28 OD x 8 Thick, Double Seal (6001-2RSH) for Quantum 6000 & R4000 & R4400 Power Chairs

SPACER, STEEL, 12.5MM ID X 19MM OD X 14.5MM TH, B-1054-060

BEARING, FLANGE, OIL IMPREGNATED BRONZE, 20MM ID X 24MM OD X 20MM TH X 28MM FOD X 2MM FTH, A-1054-005

DOWEL PIN, HARDENED STEEL, M6 OD X 16MM L, A-1054-008

Pride Mobility

DGN142484 - Large Plastic Battery Tray Assembly with 50 Amp Circuit Breaker and Decals for Quantum 610 Power Chairs

Pride Mobility

DWR1054H003 - Battery to Controller Cable Assembly for Jazzy & Quantum Power Chairs

Monster Scooter Parts

INDPART2148 - Circuit Breaker Cover for the Pride Revo (SC64)

Pride Mobility

DWR1054H001 - Positive Battery Terminal to Circuit Breaker Jumper for Jazzy & Quantum Power Chairs

STRAP, BLACK, 36''L, BATTERY, THIN BUCKLE

Monster Scooter Parts

50 Amp (50A) 125/250VAC / 50VDC Push-Button Reset Circuit Breaker (LRB402307)

Pride Mobility

DWR1235L515 - Battery Warnings Decal

Pride Mobility

DWR1235L646 - Battery Connection Decal, 1.75" x 1.75", J6
