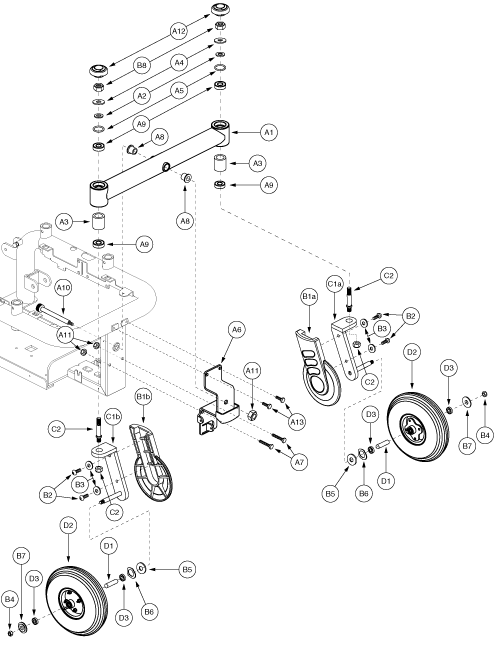

Jazzy 1101 - Articulating Beam / Casters - Single Side Fork


Pos.
MPN
Details
A1 - D3
FRMASMB4107

ARTICULATING BEAM, ASSY, STRAIGHT, W/ CASTER WHEELS, JAZZY1101/1121

---
A1 - A13
FRMASMB4108

ARTICULATING BEAM, ASSY, STRAIGHT, JAZZY1101/1121

---
A1
DWR1101E008

ARTICULATING BEAM, WELDMENT, 21"LG, STRAIGHT, 1101/1121

---
A2
DWR1101A001

SHIM, BRIGHT ZINC, STEEL, 13MM ID X 24MM OD X 2MM TH, A-1101-001

---
A3
DWR1101A002

SPACER, BRIGHT ZINC, STEEL, 14MM ID X 21MM OD X 23.16MM TH

---
A4
DWR1101A003

SPACER, BRIGHT ZINC, STEEL, 13MM ID X 31.5MM OD X 3.18MM TH, A-1101-003

---
A5
DWR1101A013

O-RING, NEOPRENE, 25.4MM ID X 31.8MM OD, A-1101-013

---
A6
DWR1101D008

FRAME, SECOND BEAM CATCH & HANDLE WELDMENT, 1101/1121

---
A7
SCRHHCS1220

Monster Scooter Parts

M8-1.25x45 mm Hex Head Machine Bolt (SCRHHCS1220)

$3.99
View details
A8
DWR1101A012

BEARING, FLANGE, 12.1MM ID X 19MM OD X 19.1MM TH

---
A9
DWR1101A011

BEARING, SLEEVE, 0.50"ID X 32MM OD X 0.394"TH, A-1101-011, (NGK: 6201-2RS-8)

---
A10
BLTASHL1086

Pride Mobility

BOLT, SHOULDER, 12 X 100, ISO 7379 (BLTASHL1086)

$3.29
View details
A11
NUTNYLK1011

Monster Scooter Parts

M8-1.25x7.65 Black Lock Nut (NUTNYLK1011)

$0.18 $0.33
View details
A12
DWR1101C014

COVER, ARTICULATING BEAM CAP, 1101/1121

---
A13
SCRHHCS1237

SCREW, HHCS, BLACK ZINC, M8-1.25 X 15MM, GRADE 10.9

---
B1a - D3
FRMASMB3191

FORK, ASSY, CASTER, RIGHT, W/GUARD & 8'' SOLID CASTER

---
B1b - D3
FRMASMB3190

FORK, ASSY, CASTER, LEFT, W/GUARD & 8'' SOLID CASTER

---
B1a
DWR1122D010

CASTER COVER, PLASTIC, SMALL, RIGHT, D-1122-010

---
B1b
DWR1122D009

CASTER COVER, PLASTIC, SMALL, LEFT, D-1122-009

---
B2
SCRASBH1014

Pride Mobility

SCREW, BUTTON HEAD, .250-20 X 0.750, ASTM F835, BZ (SCRASBH1014)

$3.29
View details
B3
WASSTND1002
View details
B4
NUTNJAM1020

Monster Scooter Parts

M8-1.25x6.5 Black Lock Nut (NUTNJAM1020)

$2.99
View details
B5
WASSAE1006

Monster Scooter Parts

Washer for the Jet 3 (WASSAE1006)

$3.29
View details
B6
WASWAVY1005

Pride Mobility

WASHER,WAVY,STEEL,0.64" ID X 0.865" OD (WASWAVY1005)

$3.29
View details
B7
DWR1010A019

SPACER, STEEL, 0.320" ID X 0.875" OD, CUSTOM, A-1010-019

---
B8
NUTNYLK1010

Pride Mobility

NUT, HEX, LOCK, .50-20, ASME B18.16.6, BZ, PVTP (NUTNYLK1010)

$2.47 $3.29
View details
C1a - C2
FRMASMB3193

FORK, ASSY, CASTER, LEFT, C-1122-004

---
C1b - C2
FRMASMB3192

FORK, ASSY, CASTER, RIGHT, C-1122-006

---
C1a
DWR1122C003

CASTER, FORK, JAZZY1122, RIGHT, C-1122-003

---
C1b
DWR1122C005

CASTER, FORK, JAZZY1122, LEFT, C-1122-005

---
C2
BRK1206A000

STEM, STEEL, W/1/2-20 NYLOCK JAM NUT, A-1200-006

---
D1 - D3
WHLASMB1388

Pride Mobility

8"x2" Heavy Duty Rear Caster Wheel Assembly for Jazzy Power Chairs

$34.99
View details
D1
DWR1122A020

SPACER, STEEL, 0.432"ID X 0.625"OD X 1.81"TH, 13 GAUGE, A-1122-020

---
D2
WHLCSTR1003

WHEEL, CASTER, BLACK RIM/GRAY TIRE, E-1005-001

---
D3
BRGSLV1015

BEARING, BALL, 10MM ID X 22MM OD X 6MM TH, 6900Z

---
