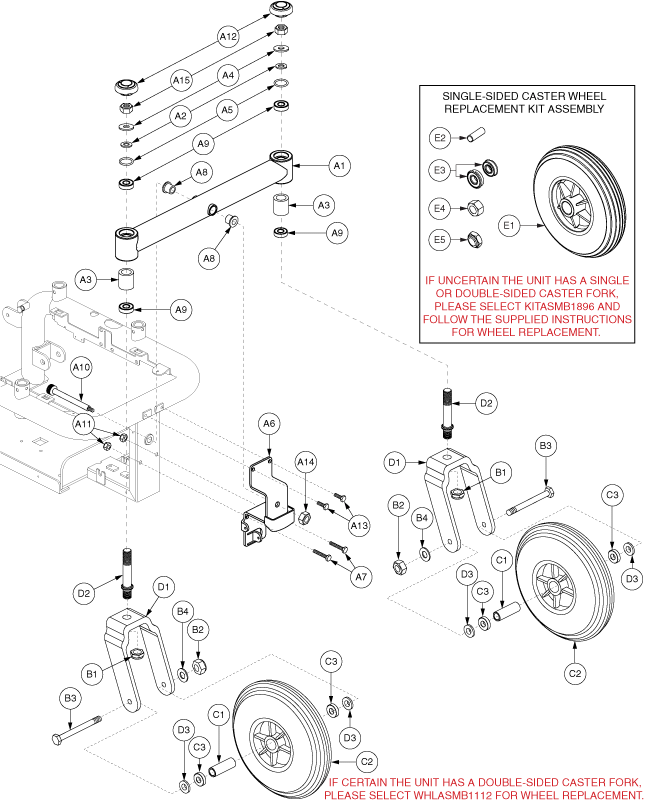

ARTICULATING BEAM, ASSY, STRAIGHT, W/ CASTER WHEELS, JAZZY1101/1121
ARTICULATING BEAM, ASSY, STRAIGHT, JAZZY1101/1121
ARTICULATING BEAM, WELDMENT, 21"LG, STRAIGHT, 1101/1121
SHIM, BRIGHT ZINC, STEEL, 13MM ID X 24MM OD X 2MM TH, A-1101-001
SPACER, BRIGHT ZINC, STEEL, 14MM ID X 21MM OD X 23.16MM TH
SPACER, BRIGHT ZINC, STEEL, 13MM ID X 31.5MM OD X 3.18MM TH, A-1101-003
O-RING, NEOPRENE, 25.4MM ID X 31.8MM OD, A-1101-013
FRAME, SECOND BEAM CATCH & HANDLE WELDMENT, 1101/1121
Monster Scooter Parts
SCRHHCS1220 - M8-1.25x45 mm Hex Head Machine Bolt
BEARING, FLANGE, 12.1MM ID X 19MM OD X 19.1MM TH
BEARING, SLEEVE, 0.50"ID X 32MM OD X 0.394"TH, A-1101-011, (NGK: 6201-2RS-8)
COVER, ARTICULATING BEAM CAP, 1101/1121
SCREW, HHCS, BLACK ZINC, M8-1.25 X 15MM, GRADE 10.9
Pride Mobility
NUTNYLK1073 - Black Zinc Lock Nut, M10 x 1.5, ISO 898-2, CL 8, PVTP (DWG 1714169)
CASTER, ASSY, TEXTURED, W/8"WHEEL, THICK WALL, RIGHT, 1121HD
CASTER, ASSY, TEXTURED, W/8"WHEEL, THICK WALL, LEFT, 1121HD
Monster Scooter Parts
Articulating Rear Beam Assembly Nut for the Jet 3 and Jazzy Select 6 (NUTNJAM1018)
SCREW,HHCS,BLACK ZINC,M8-1.25 X 90MM,GRADE 10.9
Pride Mobility
WASMETR1010 - Black Zinc Flat Washer, 8.4 ID x 16 OD x 1.6 Thick, ISO 7089-8-200 HV (Use HDW138262)
Pride Mobility
WHLASMB1112 - 8" x 2" (200x50) Caster Wheel Assembly for Jazzy, Jet & Quantum Power Chairs
WHEEL, CASTER, BLACK RIM/GRAY TIRE, E-1005-001
CASTER, ASSY, FORK, TEXTURED, THICK WALL
FORK, CASTER, THICK WALL, DOUBLE SIDED, TEXTURED BLACK, C-1200-101
STEM, STEEL, W/1/2-20 NYLOCK JAM NUT, A-1200-006
Pride Mobility
SPCROLL1000 - Steel Spacer, 0.3125" ID x 0.4375" OD x 0.125" TH
WHEEL, ASSY, CASTER, RETRO FIT KIT
Pride Mobility
WHLASMB1388 - 8"x2" Heavy Duty Rear Caster Wheel Assembly for Jazzy & Quantum Power Chairs
SPACER, BLACK ZINC, STEEL, .325" ID X .63" OD X 1.70" TH
BEARING,BALL,8MM ID X 22MM OD X 7MM TH,W/ EXTENDED INNER RACE 9MM,(608ZZ-DOUBLE SHIELD)
INSTALLATION INSTRUCTIONS, CASTER WHEEL RETRO FIT KIT
