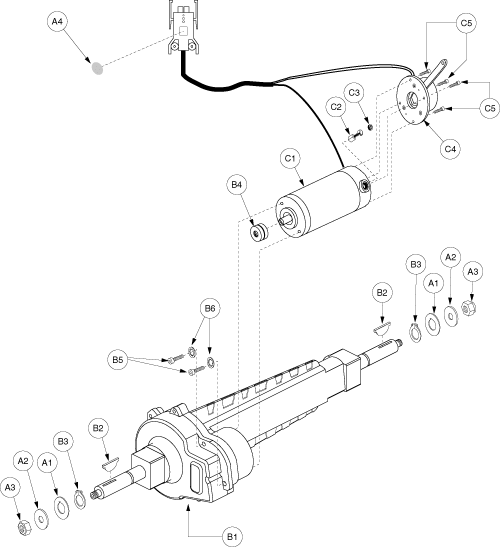

Pride Sidekick (SC200) - Drive System - Brake - Round Mounting Flange


Pos.
MPN
Details
A1 - C5
DRVASMB1317

MOTOR, ASSY, ROCKWELL SHORT SHAFT TRANSAXLE, MAIN, REL 675 MOTOR 6-PIN/ID BRAKE

---
A1
WASSTND1020

WASHER, ZINC, .750"ID X 1.25"OD X .030"THK, STAMPED W/KEYWAY

---
A2
WASSTND1051

Monster Scooter Parts

1/2"x1-1/16" Flat Washer (WASSTND1051)

$0.87 $1.47
View details
A3
NUTNJAM1001
View details
A4
DECDOT1000

DECAL, ORANGE DOT, .5" CIRCLE

---
B1 - C5
DRVASMB1318

MOTOR, ASSY, ROCKWELL SHORT SHAFT TRANSAXLE, REL 675 MOTOR 6-PIN/ID BRAKE

---
B1 - B6
DRV1016

TRANSAXLE, ASSY, SHORT SHAFT, W/HARDWARE, ROCKWELL

---
B1
DRVTAXL1007

TRANSAXLE, SHORT SHAFT, ROCKWELL

---
B2
KEYSTL1003

Monster Scooter Parts

Transaxle Woodruff Key for Pride and Go-Go Scooters (KEYSTL1003)

$6.99
View details
B3
RNGRTAN1002

Pride Mobility

RING, RETAINING,3/4" (RNGRTAN1002)

$3.29
View details
B4
INDPART2052

SHAFT COUPLER, ROCKWELL TRANAXLE/END BELL

---
B5
SCRSHCS1030

SCREW, SHCS, BLACK OXIDE, 1/4-20 X 2-1/2"

---
B6
WASINTH1000

WASHER, SAE, 1/4"ID, INTERNAL TOOTH

---
C1 - C5
DRVASMB1319

MOTOR, ASSY, ID BRAKE, REL 675 6-PIN MOTOR

---
C1
DRVMOTR1124

MOTOR, RELIANCE 675 (6-PIN), ROCKWELL

---
C2
DRVBRSH1001

MOTOR, BRUSH, RELIANCE

---
C3
INDPART1103

MOTOR, BRUSH, CAP, RELIANCE

---
C4
DRV1033

BRAKE, ASSY, WARNER, 6NM, STANDARD LOGIC, 4 WIRE, (WR213A165P1)

---
C5
SCRSHCS1029

SCREW, SHCS, BLACK, 8-32 X 1/2"L

---
