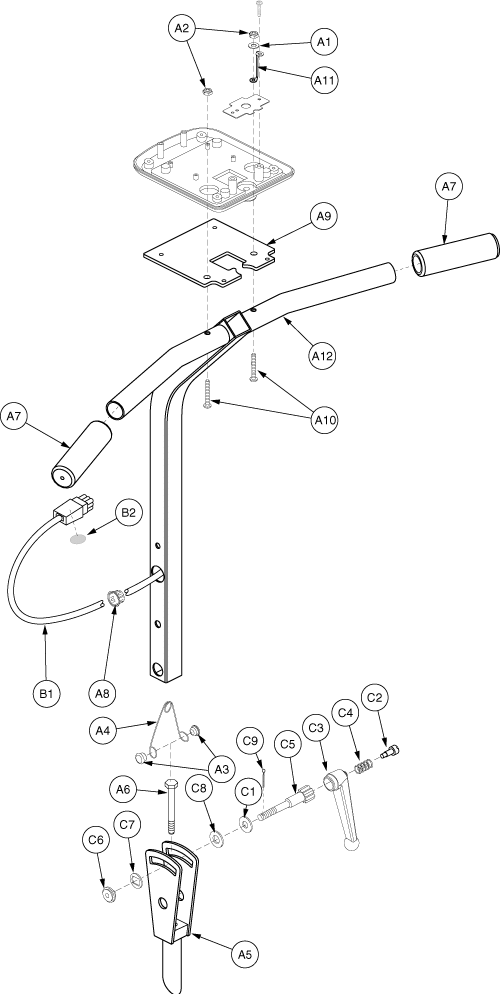

TILLER, ASSY, TILTING, SC151SHP
Pride Mobility
WASHER, FLAT, 5.3 ID X 10 OD X 1.0 THK, ISO 7089-5-200HV, ZINC (USE WASSTND1142) (WASSTND1039)
BUTTON, PUSH, FOLDING PRESS, SC-150
SPRING, COMPRESSION, STEEL
CONNECTOR, WEDGE, TEFLON COATED, TILLER, TILTING
SCREW, HHCS, M8-1.25 X 120MM, CHROME
HANDLE, GRIP, RUBBER, HANDLE BAR, SC150
BUSHING, FLANGE, PLASTIC, OPEN
PLATE, MOUNTING, CSL, SC150
SCREW, PPH, ZINC, M5 X .8T X 30MM
ELECTRONIC, HARNESS, GROUNDING, 70MM, SC160/170
TILLER, TILTING, BLACK TEFLON, SC151SHP{E-7650-003}
ELECTRONIC, ASSY, HARNESS, FRONT TO REAR, 8P-9P, SC160/170
ELECTRONIC, ASSY, HARNESS, FRONT TO REAR, 8P-9P, SC160/170
DECAL, ORANGE DOT, .5" CIRCLE
HANDLE, ASSY, LOCKING, TILLER, VICTORY
WASHER, FLAT, ZINC, M8 X 22MM OD X 2MM TH
BOLT, SHOULDER, M4 X 14MM, .7T
TILLER, HANDLE, LOCKING, CHROME PLATED, (CL:143302CR)
SPRING, MUSIC WIRE, WIRE DIAMETER, .7MM, 7.5MM ID, B-7600-012
BOLT, M8-1.25T X 48MM, INNER, LOCKING TEETH
NUT, SLIDE, M8 X 1.25T, C-9590-024
WASHER, WHITE, NYLON 6/6, 26.9MM OD X 2MM THK, SLIDE
WASHER, NYLON, M8 X 19MM OD X 3.5MM TH
PIN, HAIRPIN COTTER, M8 SHAFT
