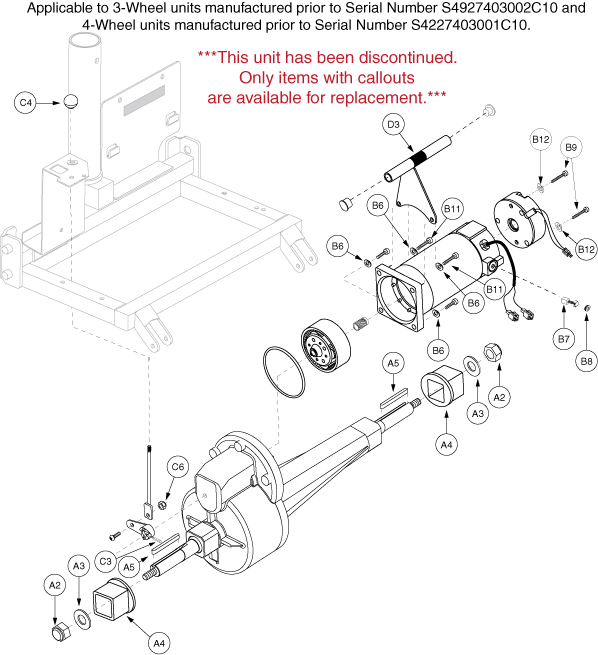

MOTOR, ASSY, TRANSAXLE/MOTOR/BRAKE, DC26.4, DM-5206-264
TRANSAXLE, ASSY, 21" SHAFT LENGTH, SC150
TRANSAXLE, LINE INDUSTRIES, 21" SHAFT LENGTH
NUT, NYLOCK, M12, 1.5T
WASHER, FLAT, 32MM X 2MM
TRANSAXLE, MOUNTING PAD, RUBBER, BLACK, B-1020-033
AXLE, KEY, 4.78MM X 4.78MM X 35MM, L-(RR1106)
MOTOR, ASSY, BRAKE, DC26.4V, 2050RPM, DM-5206-264
MOTOR, MOTOR, DC26.4V, 11.0A, 8.0KG.CM.2050RPM, DM-5206-264
BRAKE, LINE INDUSTRIES
TRANSAXLE, GEAR, PLANETARY, SC160/170
TRANSAXLE, GEAR, SUN, SC160/170
MOTOR, O-RING, SC160/170
MOTOR, BRUSH, LINE INDUSTRIES
CAP, MOTOR BRUSH, LINE INDUSTRIES
Pride Mobility
SCREW, SOCKET HEAD, M4X0.7 X 30, ISO 4762, CL 10.9, BZ (SCRSHCS1117)
SCREW, SHCS, BLACK OXIDE, M6 X 1.0 X 20MM
SCREW, SHCS, M6-1 X 25MM, BLACK ZINC, GRADE 10.9
WASHER, LOCK, ZINC, M4
FREEWHEEL, ASSY, RELEASE LEVER, SC150
FREEWHEEL, RELEASE LEVER, M6 X 1.0T X 150MM, UPPER, WELDMENT, THREADED
FREEWHEEL, RELEASE LEVER, LOWER, MACHINED, LINE INDUSTRIES
PIN, SPRING, 4MM X 22MM
KNOB, BLACK, M6 X 1.0T, THREADED, SPHERICAL
SCREW, PRH, ZINC, M6 X 1.0T X 15MM
NUT, NYLOCK, ZINC, M6-1.0
BRACKET, ASSY, REAR SHROUD SUPPORT, SC150
BRACKET, BODY SUPORT, TRANSAXLE, SC150
CAP, END, 22MM X 30MM, SC150
REUSABLE FASTENER, LOOP, 1", W/ADHESIVE BACK
