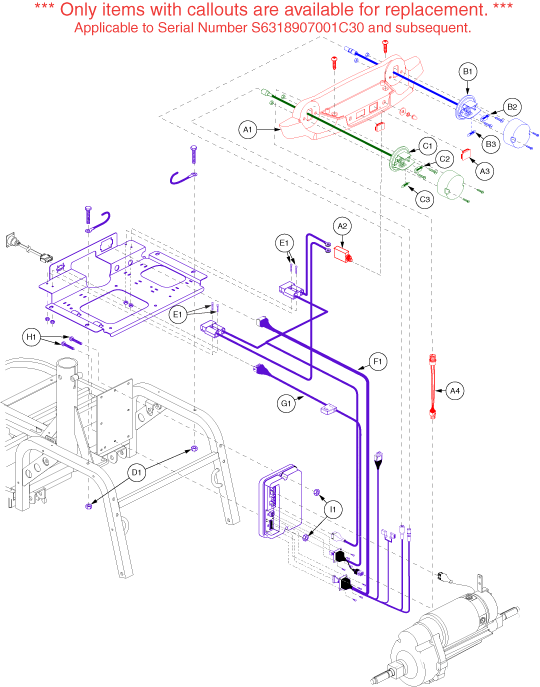

Pride Legend XL (SC3450) - Rear Electronics - S6318907001c30 - Subsequent


Pos.
MPN
Details
A1
DWR9660E035

COVER, PLASTIC, REAR PANEL, BREAKER/AMMETER/CHARGER/REAR LIGHTS, WITH PROGRAMMING PORT, SC3450, E-9660-035

---
A2
ELECBRK1008

ELECTRONIC, CIRCUIT BREAKER, 40 AMP, WITH 90 DEGREE SCREW TERMINALS & PROTECTIVE CAP, (MP: 1648-009-040-0B4)

---
A3
DWR9935B037

COVER, CHARGER, HOLE, PLASTIC, SC3000/3400INT, B-9935-037

---
A4
DWR9660H026

ELECTRONIC, HARNESS, PROGRAMMING PORT, SC3450, OFF-BOARD, H-9660-026

---
B1 - B3
ELEASMB4906

LIGHTING, REAR, ASSY, RIGHT, NON E-MARKED, VERSION 2, SC3450

---
C1 - C3
ELEASMB4907

LIGHTING, REAR, ASSY, LEFT, NON E-MARKED, VERSION 2, SC3450

---
C1
LGTCLGT1011

LIGHT COMBO, AMBER/RED, REAR, NON E-MARKED, SC3450, CCL, (CCL: PM2-807-579)

---
C2
LGTBULB1029

LIGHT BULB, 10W, 24V, NON E-MARKED, CCL

---
C3
LGTBULB1027

LIGHT BULB, 18W, 24V, NON E-MARKED, CCL

---
D1
NUTNYLK1045

NUT, NYLOCK, ZINC, M6-1.0

---
E1
SCRPPH1061
View details
F1
DWR9660H053

ELECTRONIC, HARNESS, REAR INTERMEDIATE, VERSION 2

---
G1
DWR9660H062

ELECTRONIC, HARNESS, OFFBOARD CHARGER, REAR SECTION, SC3450, H-9660-062

---
H1
SCRPPH1103
View details
I1
NUTSTD1019

NUT, STANDARD, M4-.7

---
