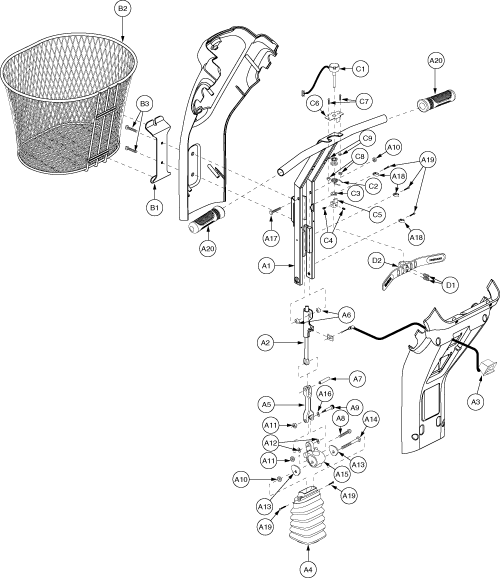

TILLER, ASSY, INFINITE ADJUSTMENT, SC3450
TILLER, WELDMENT, SC3450, E-9660-025
Monster Scooter Parts
Tiller Actuator for the Pride Celebrity XL, Hurricane, Legend, Legend XL, and Maxima (INDPART2050)
LEVER, ASSY, TILLER, INFINITE ADJUSTMENT, W/11" CABLE & SPRING CLIP
TILLER, BOOT, SC3450, E-9660-023
TILLER, PIVOT BAR, SC3000/3400, C-9935-029
SPACER, NYLON, 9MMID X 18MMOD X 8.5MMTH
TILLER, PIN, PIVOT, SC3000/3400, A-9935-015
SCREW, SHCS, BLACK ZINC, M6-1.0 X 30MM, GRADE 10.9
Pride Mobility
SHOULDER BOLT, M8, 30MM, C1005-001 (BLTASHL1091)
Monster Scooter Parts
M8-1.25x7.65 Black Lock Nut (NUTNYLK1011)
NUT, NYLOCK, ZINC, M6-1.0
SPACER, NYLON, .341 ID X .744 OD X .066TH
WASHER, TILLER BLOCK, .344"ID X .125 THICK, IRREGULAR SHAPE, A-9900-005
SCREW, HHCS, BLACK ZINC, M8-1.25 X 60MM, GRADE 8.8
TILLER, BLOCK, PIVOT, BRONZE, W/BORED TILLER STOPS, C-9900-028
WASHER, FLAT, BLACK ZINC, 8.4MM ID X 16MM OD X 1.2MM TH
SCREW, HHCS, BLACK ZINC, M8-1.25 X 75MM, GRADE 8.8
CLAMP, CABLE, BLACK, 7/16"
SCREW, PPH, BLACK, M4 X 12MM, SHEET METAL
HAND GRIP, BLACK, CF3000/3400, C-9936-001
SCREW, PFH, BLACK ZINC, M4-.7 X 12MM
Pride Mobility
NUT, LOCK, M4X0.7, ISO 10511, CL 04, BZ, PVTP (NUTNYLK1065)
WASHER, FLAT, BLACK ZINC, M4
BASKET, ASSY, TILLER
BRACKET, BASKET, SC3000/3400, D-9935-030
BASKET, TILLER, ANGLED FRONT, VICTORY XL3, E-1020-017
SCREW, PRH, BLACK ZINC, M4-.7 X 20MM
LEVER, ASSY, THROTTLE CONTROL, 7", SOFT-GRIP PLASTIC
SCREW, SET, 8-32 X 1/4"
LEVER, THROTTLE CONTROL, W/INSERTS, LEGEND 2000
