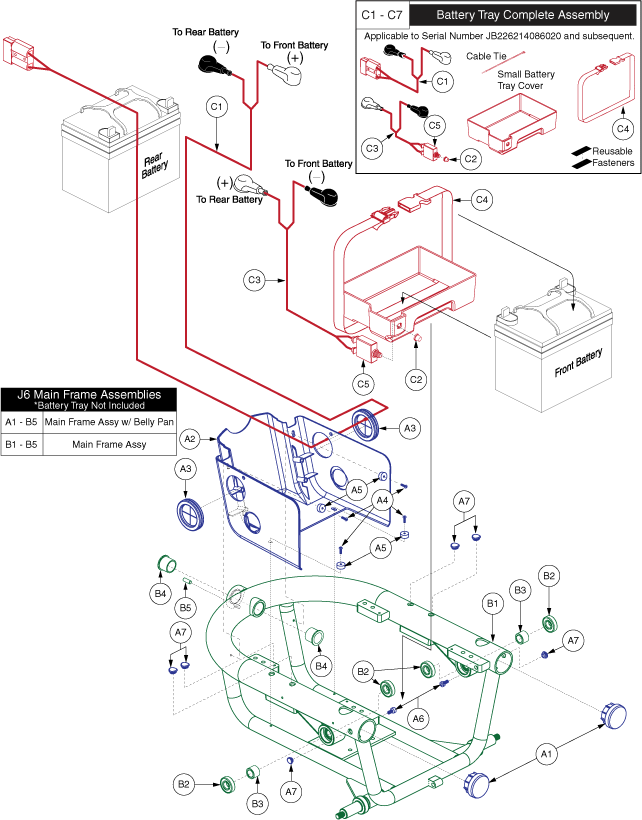

Pride J6 - Main Frame / Battery Tray - Main Frame W/ Pwr. Elevating Seat


Pos.
MPN
Details
A1 - B5
FRMASMB8469

Pride Mobility

MAIN FRAME ASSEMBLY (FRMASMB8469)

$236.49 $309.25
View details
A1
DWR1054C012

Pride Mobility

MAIN TUBE CAP,C-1054-012 (DWR1054C012)

$3.29
View details
A2
DWR1054E006

Pride Mobility

SHROUD,BELLY PAN,E-1054-006 (DWR1054E006)

$7.69 $8.88
View details
A3
DWR1054B024

GROMMET, RUBBER, HOLE, B-1054-024

---
A4
SCRPPH1318
View details
A5
DWR1054A011

SPACER, BLACK, NYLON, 4MM ID X 12.7MM OD X 8MM TH, A-1054-011

---
A6
SCRSHCS1122

Pride Mobility

SCREW, SOCKET HEAD, M8X1.25 X 16, ISO 4762, CL 12.9, BZ (SCRSHCS1122)

$3.29
View details
A7
MEC131368

Pride Mobility

FRAME PLUG,10MM,PROECAP (MEC131368)

$3.29
View details
B1 - B5
FRMASMB8470

Pride Mobility

FRAME AND BEARING ASSEMBLY (FRMASMB8470)

$291.49 $389.14
View details
B1
DWR1054E026

FRAME, WELDMENT, MAIN, E-1054-026

---
B2
DWR1101A019B
View details
B3
DWR1054B060

SPACER, STEEL, 12.5MM ID X 19MM OD X 14.5MM TH, B-1054-060

---
B4
DWR1054A005

BEARING, FLANGE, OIL IMPREGNATED BRONZE, 20MM ID X 24MM OD X 20MM TH X 28MM FOD X 2MM FTH, A-1054-005

---
B5
DWR1054A008

DOWEL PIN, HARDENED STEEL, M6 OD X 16MM L, A-1054-008

---
C1 - C7
DGN142485

Pride Mobility

BATTERY,ASSY,TRAY,SMALL,PLASTIC,W/50 AMP CIRCUIT BREAKER & DECALS (DGN142485)

$170.49 $209.87
View details
C1
DWR1054H003
View details
C2
INDPART2148

Monster Scooter Parts

Circuit Breaker Cover for the Pride Revo (SC64) (INDPART2148)

$6.59
View details
C3
DWR1054H001
C4
ACCSTRP1019

STRAP, BLACK, 36''L, BATTERY, THIN BUCKLE

---
C5
ELECBRK1030

Monster Scooter Parts

50 Amp (50A) 125/250VAC / 50VDC Push-Button Reset Circuit Breaker (LRB402307)

$13.99
View details
C6
DWR1235L515

Pride Mobility

DECAL,WARNING,BATTERY WARNINGS,L-1235-515 (DWR1235L515)

$5.49 $5.74
View details
C7
DWR1235L646

Pride Mobility

DECAL,BATTERY CONNECTION,1.75" X 1.75",J6,L-1235-646 (DWR1235L646)

$5.49 $5.74
View details
