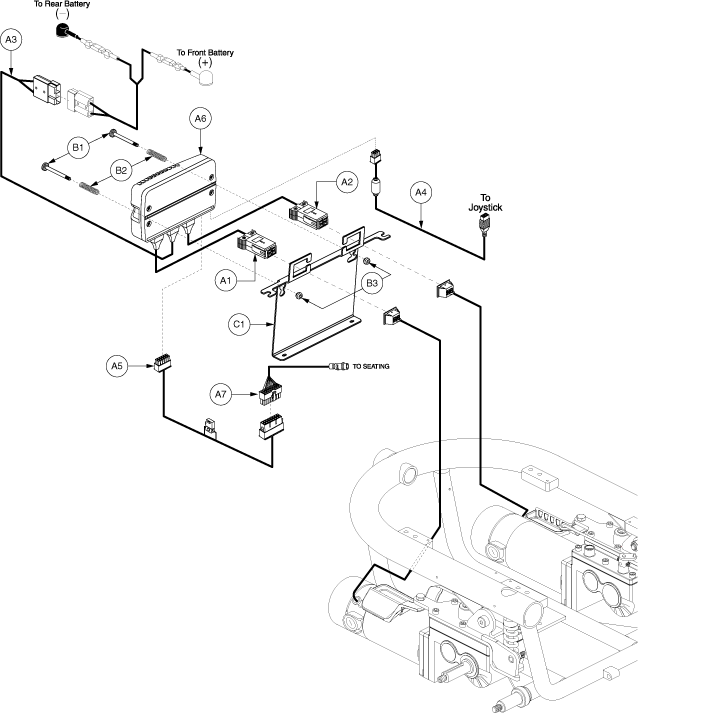

Pride J6 - Electronics / Module - Ne - Tru -Balance Pwr. Positioning - Actr. Function Through Toggle

Pride Mobility

ELECTRONIC,ASSY,NE,D08 MOTORS,J6,PTO (ELE145396)

Pride Mobility

ELECTRONIC,HARNESS,MOTOR CONTROLLER,Q-LOGIC,CURTIS,JAZZY600/QUANTUM600,RIGHT,H-1056-029 (DWR1056H029)

Pride Mobility

ELECTRONIC,HARNESS,MOTOR CONTROLLER,Q-LOGIC,CURTIS,JAZZY600/QUANTUM600,LEFT,H-1056-028 (DWR1056H028)

Pride Mobility

ELECTRONIC,HARNESS,POWER CABLE,Q-LOGIC,CURTIS,JAZZY600/QUANTUM600,H-1056-027 (DWR1056H027)

Pride Mobility

ELECTRONIC,HARNESS,BUS EXTENSION CABLE,CURTIS,0.410 METER,MALE/FEMALE,H-1111-065,(CURTIS: 17881303) (DWR1111H065)

Pride Mobility

ELECTRONIC,HARNESS,INTERMEDIATE,OFFBOARD CHARGER,NE,H-1265-055 (DWR1265H055)

Pride Mobility

CONTROLLER,NE,CURTIS,ASSY,70 AMP,W/JAZZY610 PROGRAM (ELEASMB6836)

Pride Mobility

ELECTRONIC,HARNESS,PTO ONLY,NE,H-1265-057 (DWR1265H057)

Pride Mobility

QUICK RELEASE BUTTON,ASSY,POWER MODULE,B-1116-054 (HDWASMB1059)

POWER MODULE BUTTON SCREW, B-1056-023

SPRING, COMPRESSION, BRIGHT ZINC, 1.50" FL X 0.30'' OD X 0.038" WIRE DIA X RATE:13.5LBS/IN, MUSIC WIRE, B-1054-041, (MCMASTER CARR:9434K62)

POWER MODULE BUTTON, B-1056-033

Pride Mobility

POWER MODULE MOUNTING BRACKET,D-1054-054 (DWR1054D054)
