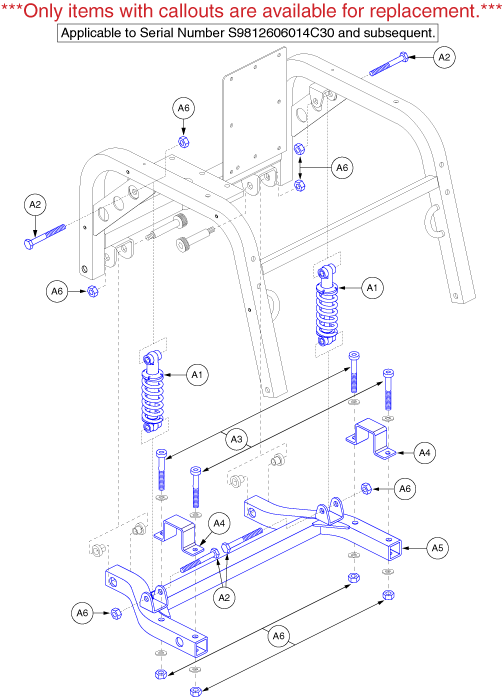

Pos.
MPN
Details
A1
DWR9700C037
SPRING, SHOCK COIL, NON-ADJUSTABLE, STEEL BODIED, BLACK, 139.5MM L, RATE: 650 LBS/IN, C-9700-037
---
A2
SCRHHCS1199
SCREW, HHCS, ZINC, M8-1.25 X 40MM
---
A3
SCRSHCS1066
SCREW, SHCS, BLACK ZINC, M8-1.25X40MM
---
A4
DWR9660C047
BRACKET,AXLE,MTS M4 TRANSAXLE,SC3450,C-9660-047
---
A5
DWR9660E048
WELDMENT, TRAIL ARM, MTS M4 TRANSAXLE, SC3450, E-9660-048
---
A6
NUTNYLK1012
NUT, NYLOCK, BLACK ZINC, M8-1.25
---
