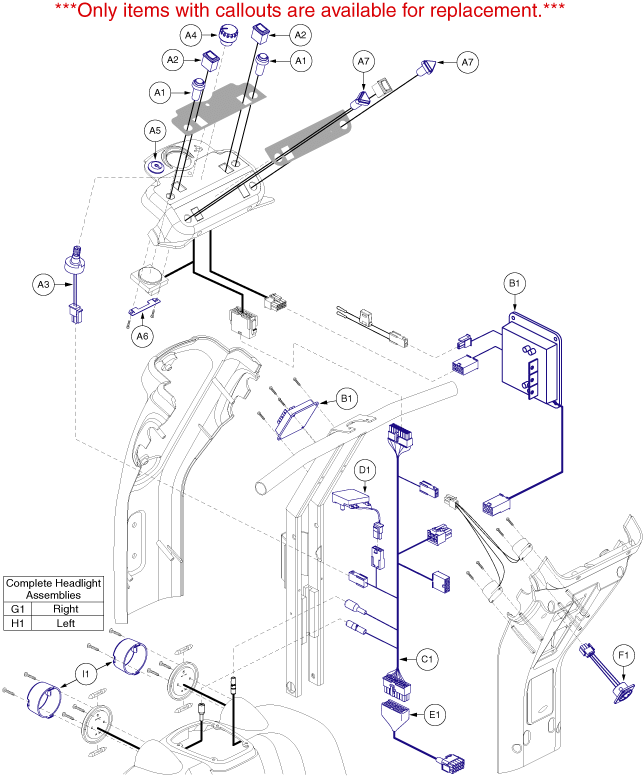

Pride Hurricane (PMV5001) - Console


Pos.
MPN
Details
A1
SWTPSHB1000

ELECTRONIC, SWITCH, HORN, SPST/MOM WITH NUT

---
A2
SWTROCK1006

ELECTRONIC, SWITCH, ROCKER, 11", 4 PIN AMP CONNECTOR, ON/OFF, JEC (JS-606)

---
A3
DWR9660H050

ELECTRONIC, HARNESS, SPEED POT, 25K, VERSION 2, H-9660-050

---
A4
DWR9905B029

KNOB, GRAY, PLASTIC, SPEED POT, B-9905-029

---
A5
SWTKEY1011

ELECTRONIC, KEY SWITCH, W/NUT, MANDO, (MANDO: 7509-N)

---
A6
DWR9935B029

ELECTRONIC, VOLTMETER, RETAINER

---
A7
SWTPSHB1007

ELECTRONIC, SWITCH, TURN SIGNAL, SPST, MOMENTARY, GREEN, #R18-26B

---
B1
CTLDC1392

ELECTRONIC, PCB, CONSOLE BOARD, VERSION 2, H-9660-045

---
C1
DWR9660H047

ELECTRONIC, HARNESS, TILLER OCTOPUS, VERSION 2

---
D1
ELEASMB5228

ELECTRONIC, ASSY, CURTIS THROTTLE POT, 5K, 5K, W/ISO TEST RESISTOR, VERSION 2, SC3000/3400

---
E1
DWR9936H006

ELECTRONIC, HARNESS, FRONT TO REAR, CF3000/3400, H-9936-006

---
F1
DWR9660H061

ELECTRONIC, HARNESS, OFFBOARD CHARGER, FRONT-TO-REAR

---
G1
ELEASMB4904

LIGHTING, FRONT, HEADLIGHT/BLINKER, ASSY, RIGHT, NON E-MARKED, VERSION 2, SC3450

---
H1
ELEASMB4905

LIGHTING, FRONT, HEADLIGHT/BLINKER, ASSY, LEFT, NON E-MARKED, VERSION 2, SC3450

---
I1
LGTCLGT1010

LIGHT COMBO, AMBER/WHITE, FRONT, NON E-MARKED, SC3450, CCL

---
