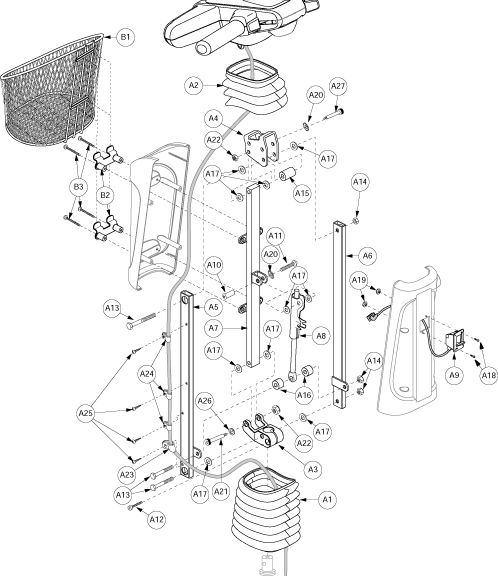

INFINITE ADJUSTABLE TILLER, ASSY, MECH LOCK, SC4000/4400, METRIC VERSION
TILLER, BOOT, RUBBER, LOWER, CELEBRITY 2000, E-9700-011
TILLER, BOOT, RUBBER, UPPER, CELEBRITY 2000, E-9700-012
TILLER, CASTING, BLOCK, INFINITE ADJUSTMENT, C-9700-003
TILLER, PLATE, PIVOT, CELEBRITY 2000 3 WHL, METRIC, C-9720-005
TILLER, TUBE, LEFT, CELEBRITY 2000 METRIC
TILLER, TUBE, RIGHT, CELEBRITY 2000 METRIC
TILLER, TUBE, CENTER, CELEBRITY 2000 METRIC
Monster Scooter Parts
Tiller Actuator for the Pride Celebrity XL, Hurricane, Legend, Legend XL, and Maxima (INDPART2050)
LEVER, ASSY, TILLER, INFINITE ADJUSTMENT, W/11" CABLE & SPRING CLIP
SCREW, PTH-SEX-BOLT, 5/16 OD, 1/4-20 X 1.25" THREAD
SCREW, PTH, ZINC, 1/4-20 X 0.75", W/NYLON PATCH
SCREW, SHCS, BLACK ZINC, 1/4-20 X 1.00"
SCREW, HHCS, M8-1.25 X 55MM
SPACER, NYLON, M8 ID X 19MM OD X 28.5 MM THK
SPACER, NYLON, M8 ID X 19MM OD X 14 MM THK
WASHER, NYLON, M8 X 19MM OD X 3.5MM TH
SCREW, PFH, BZ, M4-.7T X 10MM L
NUT, NYLOCK, ZINC, M4-.7
WASHER, EXTERNAL TOOTH, M8, LOCK
BOLT, SHOULDER, 8MM X 38MM, GRADE 8.8
NUT, NYLOCK, ZINC, M6-1.0
SCREW, PRH, M4.5 X .75T X 10MM, THREAD CUTTING
WASHER, LOCK, M8
BOLT, SHOULDER, 8MM X 43MM, GRADE 8.8
BASKET ASSY, OVAL, BASKET ASSY, 10 1/4"L X 14"W X 9"D, TILLER, ANGLED FRONT
BASKET, OVAL, TILLER, 10 1/4" L X 14" W X 9" L, ANGLED FRONT (E-1000-113)
BRKT, BASKET, WELDMENT, LEG 2000, POWDER COAT
Monster Scooter Parts
8-32x2" Black Pan Head Self-Tapping Machine Screw (SCRPPTC1018)
