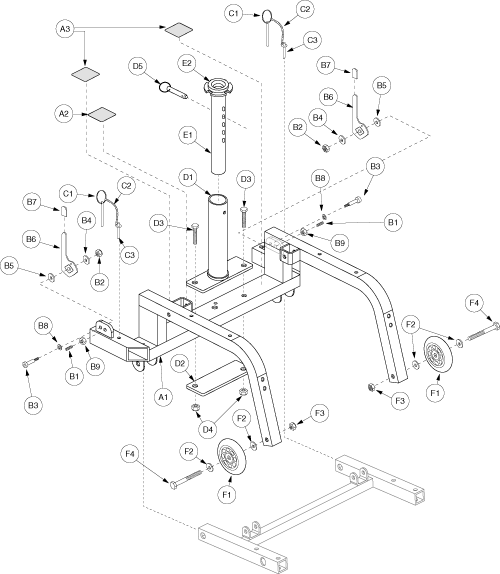

FRAME, ASSY, REAR, SC4000/SC4400, W/STANDARD SEAT POST
FRAME, WELDMENT, REAR, CELEBRITY CLASS, E-9700-013
DECAL, SERIAL NUMBER, CELEBRITY, NON-XL
DECAL, WARNING-BOTH LOCK PINS
FRAME, ASSY, TRAIL ARM, CELEBRITY 2000
CAM LOCK UP, ASSY, LEGEND 2000
BALLPLUNGER+FILM, 5/16-18X37/64
NUT, JAM, 5/16-18
WASHER, FLAT, STEEL, .25X.405X.059
WASHER, NYLON, 1/4"ID, 3/4"OD, 1/16"T
CAM HANDLE, STYLE#9 W/ INSERT
COVER, HANDLE, CAM
WASHER, FENDER, 10 X 3/4"
NUT, NYLOCK, 10-24
DETENT RING, ASSY, 1/4" X 2", W/LANYARD
PIN, COTTERLESS DETENT W/RING, 1/4" X 2"
LANYARD, SS BALL CHAIN, #10X4.5"
RIVET, ALUM RIV/MAND, #44 1/8D X 1/4G
SEAT POST, ASSY, LOWER, BOLT ON, CEL2000
SEAT POST, WELDMENT, C-9700-015
PLATE, WASHER, 6" X 2", B-9700-029
SCREW, HHCS, ZINC, 3/8-16 X 2.25", GRADE 5
Monster Scooter Parts
3/8" x 3-3/8" Quick Release Seat Pin for Pride and Jazzy Rear Basket Assemblies
SEAT POST, ASSY, UPPER, 5 HOLE
SEAT POST, UPPER, FRAME, B-5100-009
SEAT POST, BUSHING, 1.000" ID X 1.310" OD X 2.112" TH X 2.00" FOD X 0.312"FTH, UPPER, A-5000-043
WHEEL, ASSY, ANTI-TIP, 3", SOLID COMPOSITE
Monster Scooter Parts
WASHER, FLAT, ZINC, 1/4, 0.3125" ID X0.75" OD X 0.0625" TH
SCREW, HHCS, 5/16-18 X 2 3/4"
