Jet 3 Ultra - Main Frame / Battery Tray - Standard
Parts Diagrams

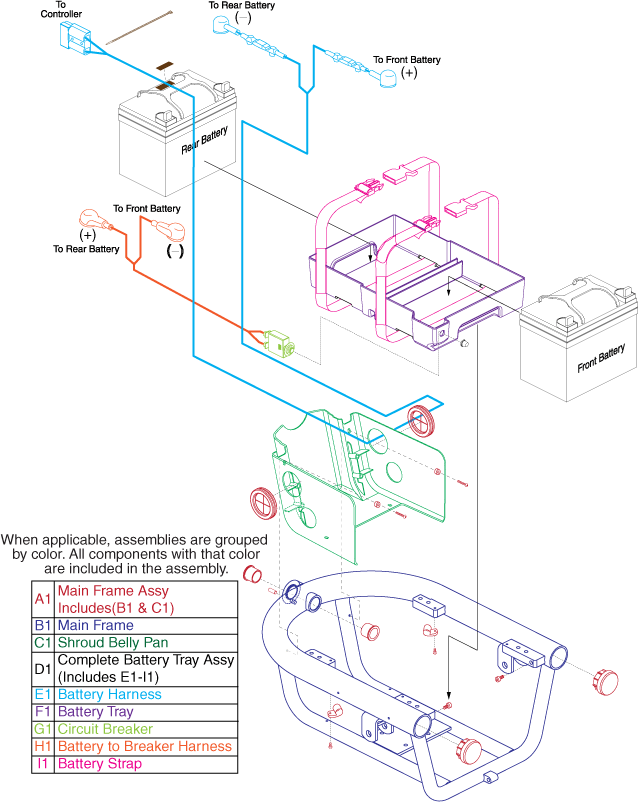

Jet 3 Ultra - Main Frame / Battery Tray - Standard Click to enlarge
Pos.
MPN
Details
A1
FRMASMB8454

FRAME, ASSY, MAIN, JAZZYULTRA, NO POWER SEAT

---
B1
DWR1054E002

FRAME, WELDMENT, MAIN, E-1054-002

---
C1
DWR1054E006

Pride Mobility

SHROUD,BELLY PAN,E-1054-006 (DWR1054E006)

$7.69 $8.88
View details
D1
PLSASMB1658

BATTERY, ASSY, TRAY, LARGE, PLASTIC, W/CIRCUIT BREAKER, JAZZYULTRA

---
E1
DWR1054H003
Battery to Controller Cable Assembly for Jazzy & Quantum Power Chairs, featuring a pair of connected cables with visible connectors, used to link the battery to the controller.

Pride Mobility

Battery to Controller Cable Assembly for Jazzy & Quantum Power Chairs (DWR1054H003)

$109.99
View details
F1
DWR1054E005

COVER, BATTERY TRAY, LARGE, E-1054-005

---
G1
ELE1802761
Circuit Breaker with Right Angle Terminals for the Jazzy Jet 3, featuring a black rectangular body with silver connectors and a numbered button.

Monster Scooter Parts

Circuit Breaker with Right Angle Terminals for the Jazzy Jet 3 (ELE1802761)

$22.99
View details
H1
DWR1054H001
Positive Battery Terminal to Circuit Breaker Jumper for Jazzy & Quantum Power Chairs, featuring a close-up of red and black cables with eye loops, designed for compatibility with various power chairs.

Pride Mobility

Positive Battery Terminal to Circuit Breaker Jumper for Jazzy & Quantum Power Chairs (DWR1054H001)

$19.79
View details
I1
ACCSTRP1019

STRAP, BLACK, 36''L, BATTERY, THIN BUCKLE

---
