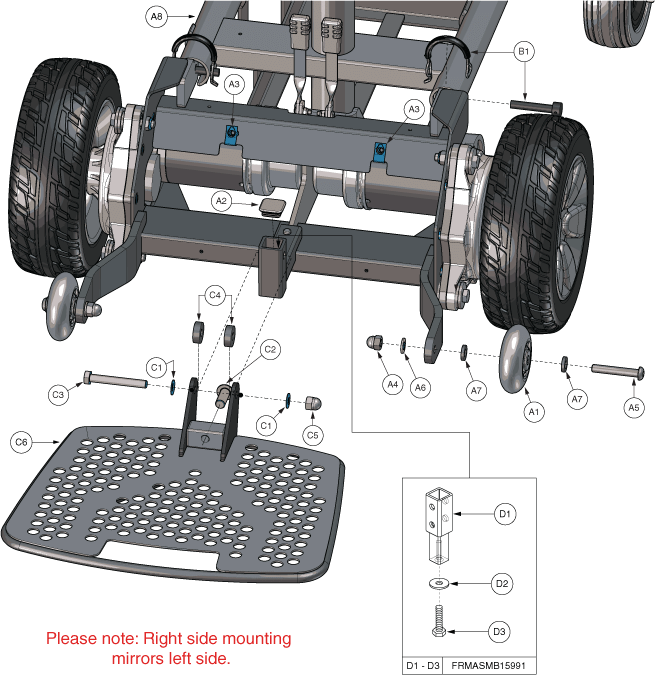

Jazzy Elite ES Portable - Main Frame - Main Frame, Front W/ Footrest Platform

Pride Mobility

FRONT FRAME ASSEMBLY, ELITE ES (MEC132328)

Monster Scooter Parts

72mm Front Anti-Tip Wheel Assembly with Bearings for Jazzy & Pride Scooters & Power Chairs (WHLATIP1004)

COVER, BLACK, 25MM X 25MM, FOR 2.5MM WALL, B-1060-038

Pride Mobility

NUT, EXTRUDED U, M5X0.8, C1060-048 (DWR1060C048)

Monster Scooter Parts

M8-1.25x50 mm Anti-Tip Axle Bolt for the Jazzy Elite Series (SCRASBH1247)

WASHER, FLAT, BLACK ZINC, 8.4MM ID X 16MM OD X 1.6MM TH

Monster Scooter Parts

Black Nylon Washer for Jazzy Anti-Tip Wheels (WASNYLN1085)

FRONT FRAME WELDMENT

Pride Mobility

PIN,QUICK RELEASE SAFETY SNAP PIN,8MM DIA X 45MM PIN LENGTH X 35MM GRIP LENGTH (HDW131928)

Monster Scooter Parts

Foot Platform Assembly with Hardware for the Jazzy Elite HD (FRMASMB17659)

Pride Mobility

Spring Washer for the Jazzy 600 & Quantum Q600 Footrest Assembly (WASWAVY1024)

Pride Mobility

SCREW, BUTTON HEAD, M10X1.5 X 25, ISO 7380-1, CL 12.9, BZ (SCRASBH1297)

Monster Scooter Parts

Footrest Assembly Screw for the Jazzy 610 (SCRHHCS1363)

Pride Mobility

WASHER, BLACK, NYLON, 8 ID X 22 OD X 7 THK (DWG WASNYLN1141)

Monster Scooter Parts

M8-1.25 Black Zinc Acorn Nut (NUTACRN1012)

FOOT PLATFORM, WELDMENT, LARGE, PERFORATED, E-1201-086

Monster Scooter Parts

Height Adjustable Footplate Bracket for the Jazzy Elite ES (FRMASMB15991)

FOOT PLATFORM TUBE MOUNTING BRACKET, HEIGHT ADJUSTABLE, C1033-033

WASHER, FLAT, ZN/AL BLACK, STEEL, 8.4MM ID X 24MM OD X 2MM TH, GB97-2

Pride Mobility

SCREW,HHCS,ZN/AL BLACK,M8-1.25 X 35MM,GRADE 10.9 (SCRHHCS1697)
