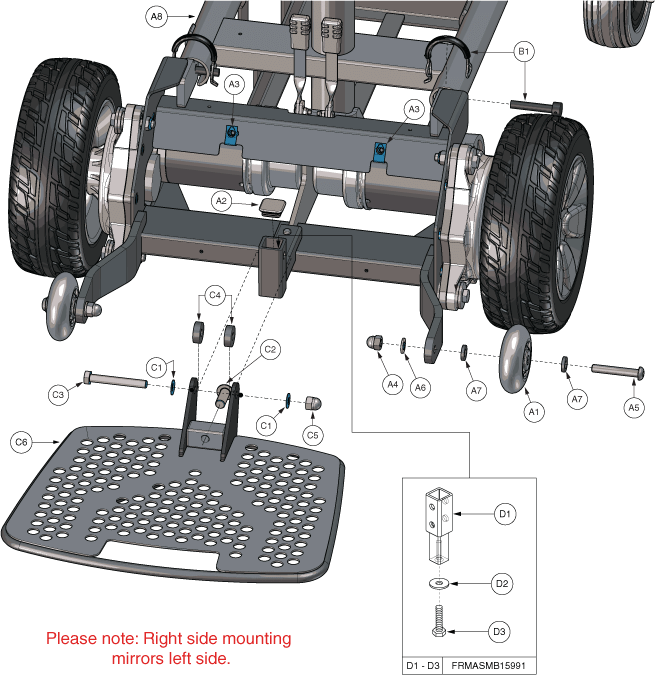

Jazzy Elite ES Portable - Footrest Platform

Pride Mobility

MEC132328 - Front Frame Assembly for the Jazzy Elite ES

Monster Scooter Parts

WHLATIP1004 - 72 mm Front Anti-Tip Wheel Assembly with Bearings for Jazzy & Pride Scooters & Power Chairs

COVER, BLACK, 25MM X 25MM, FOR 2.5MM WALL, B-1060-038

Pride Mobility

DWR1060C048 - Extruded U Nut, M5 x 0.8 for Pride Jazzy 623 Power Chairs

Monster Scooter Parts

SCRASBH1247 - M8-1.25x50 mm Anti-Tip Axle Bolt for the Jazzy Elite Series

WASHER, FLAT, BLACK ZINC, 8.4MM ID X 16MM OD X 1.6MM TH

Monster Scooter Parts

WASNYLN1085 - Black Nylon Washer for Jazzy Anti-Tip Wheels

FRONT FRAME WELDMENT

Pride Mobility

HDW131928 - Quick Release Safety Snap Pin, 8mm Dia x 45mm Pin Length x 35mm Grip Length

Monster Scooter Parts

FRMASMB17659 - Foot Platform Assembly with Hardware for the Jazzy Elite HD

Pride Mobility

WASWAVY1024 - Spring Washer for the Jazzy 600 & Quantum Q600 Footrest Assembly

Pride Mobility

SCRASBH1297 - Black Zinc Button Head Screw, M10 x 1.5 x 25, ISO 7380-1, CL 12.9

Monster Scooter Parts

SCRHHCS1363 - Footrest Assembly Screw for the Jazzy 610

Pride Mobility

WASNYLN1141 - Black Nylon Washer, 8 ID x 22 OD x 7 Thick

Monster Scooter Parts

NUTACRN1012 - M8-1.25 Black Zinc Acorn Nut

FOOT PLATFORM, WELDMENT, LARGE, PERFORATED, E-1201-086

Monster Scooter Parts

FRMASMB15991 - Height Adjustable Footplate Bracket for the Jazzy Elite ES

FOOT PLATFORM TUBE MOUNTING BRACKET, HEIGHT ADJUSTABLE, C1033-033

WASHER, FLAT, ZN/AL BLACK, STEEL, 8.4MM ID X 24MM OD X 2MM TH, GB97-2

Pride Mobility

SCRHHCS1697 - Zinc/AL Black Hex Head Cap Screw, M8-1.25 x 35mm, Grade 10.9
