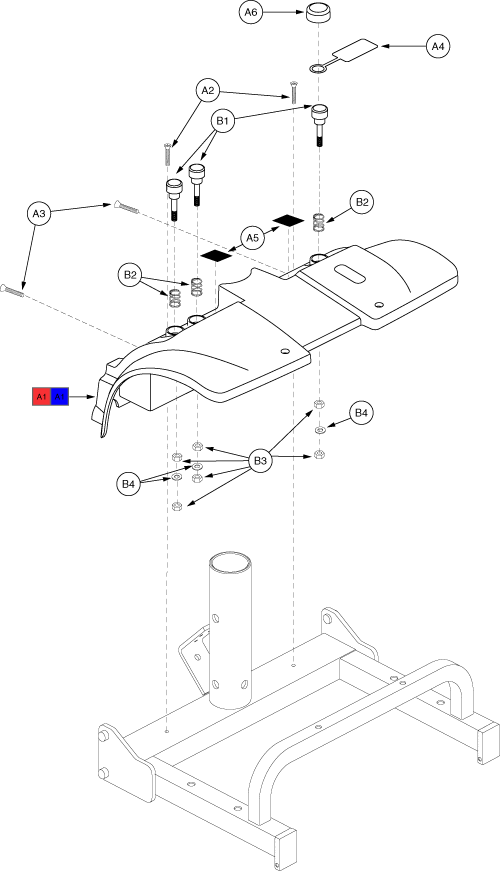

Go-Go Travel Vehicle 3-Wheel (SC40) - Serial Number Is Less Than Xxx11704001xxx - Shroud Assemblies - Rear


Pos.
MPN
Details
A1a - B4
SHDASMB3640

SHROUD, ASSY, REAR BODY, RED, SC40

---
A1a
SHDRAWM2227

SHROUD, REAR BODY, RED, SOLID COLOR SC40, {E-9955-005}

---
A1b - B4
SHDASMB3641

SHROUD, ASSY, REAR BODY, BLUE, SC40

---
A1b
SHDRAWM2228

SHROUD, REAR BODY, BLUE, SOLID COLOR SC40, {E-9955-005}

---
A2
SCRPFH1047

SCREW, PFH, BLACK ZINC, M4-.7 X 20MM

---
A3
SCRPFH1050

SCREW, PFH, BZ, M5-.8 X 20MM

---
A4
DWR9955C023

ISOLATOR, BATTERY, SHIPPING PURPOSES, BLACK, C-9955-023

---
A5
VELHOOK1028

FASTENER, 1/2"W 1"L W/ADHESIVE BACK, REUSABLE, HOOK

---
A6
DWR9955B030

CAP, BATTERY SHIPPING, ORANGE, POLYPROPYLENE, SC40/44, B-9955-030

---
B1 - B4
ELEASMB3355

BATTERY, ASSY, CONTACT POST, GO-GO, B-1030-023

---
B1
DWR9955A003

BATTERY, CONTACT, POST, A-9955-003

---
B2
DWR9955A013

SPRING, COMPRESSION, STAINLESS STEEL, .625"L X .480"OD

---
B3
NUTNJAM1029

NUT, JAM, ZINC, M6-1.0

---
B4
WASSTND1080

WASHER, FLAT, M6, STANDARD

---
