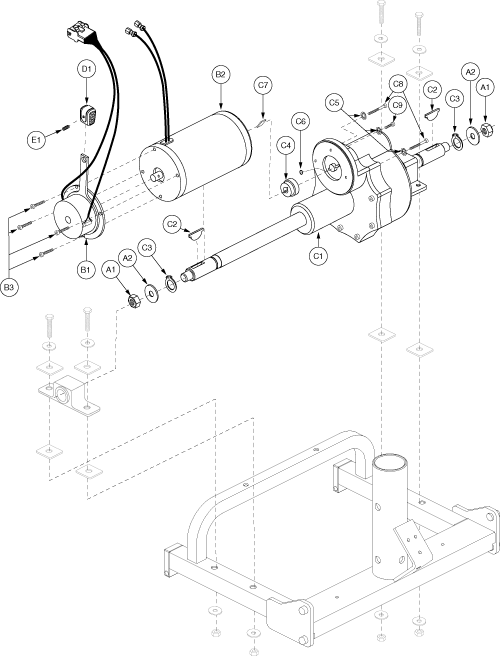

MOTOR, ASSY, MAIN TRANSAXLE/MOTOR/BRAKE, CCL, (PM802-T06)
Monster Scooter Parts
1/2-20 Zinc-Plated Jam Lock Nut (NUTNJAM1018)

MOTOR, ASSY, TRANSAXLE/MOTOR/BRAKE, CCL

MOTOR, ASSY, BRAKE, CCL, (CM80B-007)

BRAKE, ASSY, WARNER, 4NM, STANDARD LOGIC, (WR198A203P1)

MOTOR, CCL, (CM808-031A)
Pride Mobility
SCREW, SOCKET HEAD, M4X0.7 X 12, ISO 4762, CL 12.9, BZ (SCRSHCS1092)

TRANSAXLE, CCL STD LINK SHAFT, W/HARDWARE, (CM80T-M07)

TRANSAXLE, CCL STD LINK SHAFT, 19" SHAFT, 17.75:1 GEAR RATIO, (CM80T-012)
Monster Scooter Parts
Transaxle Woodruff Key for Pride and Go-Go Scooters (KEYSTL1003)

SHAFT COUPLER, CCL, PM (802-T06)

WASHER, SAE, 1/4"ID, INTERNAL TOOTH

O-RING, 5/16" OD X 3/16" ID X 1/16" TH, BLACK, RUBBER

KEY, 0.375" X 0.672" X 0.109", SHAFT COUPLER

SCREW, SHCS, BZ, M5-.8 X 55MM
Monster Scooter Parts
M5-.8x15 mm Black Allen Socket Machine Bolt (SCRSHCS1106)

FREEWHEEL, HANDLE, YELLOW, SUNDANCER 2001, B-9930-016

SCREW, SET, BLACK, M4-.7 X 12MM
