ZK2430HB-FS Throttle & Control Module Bundle for Razor E200 (Versions 13-23) & E300 (Versions 11 & 13-19)
$38.99
Unit price
/
Unavailable
ZK2430HB-FS Throttle & Control Module Bundle for Razor E200 (Versions 13-23) & E300 (Versions 11 & 13-19) is backordered and will ship as soon as it is back in stock.
Veterans Day Sale - Save 11% with Coupon Code: VET11
Free Shipping
Free Shipping
- US domestic ship to addresses only.
- Does not include expedited shipping services.
Description
Description

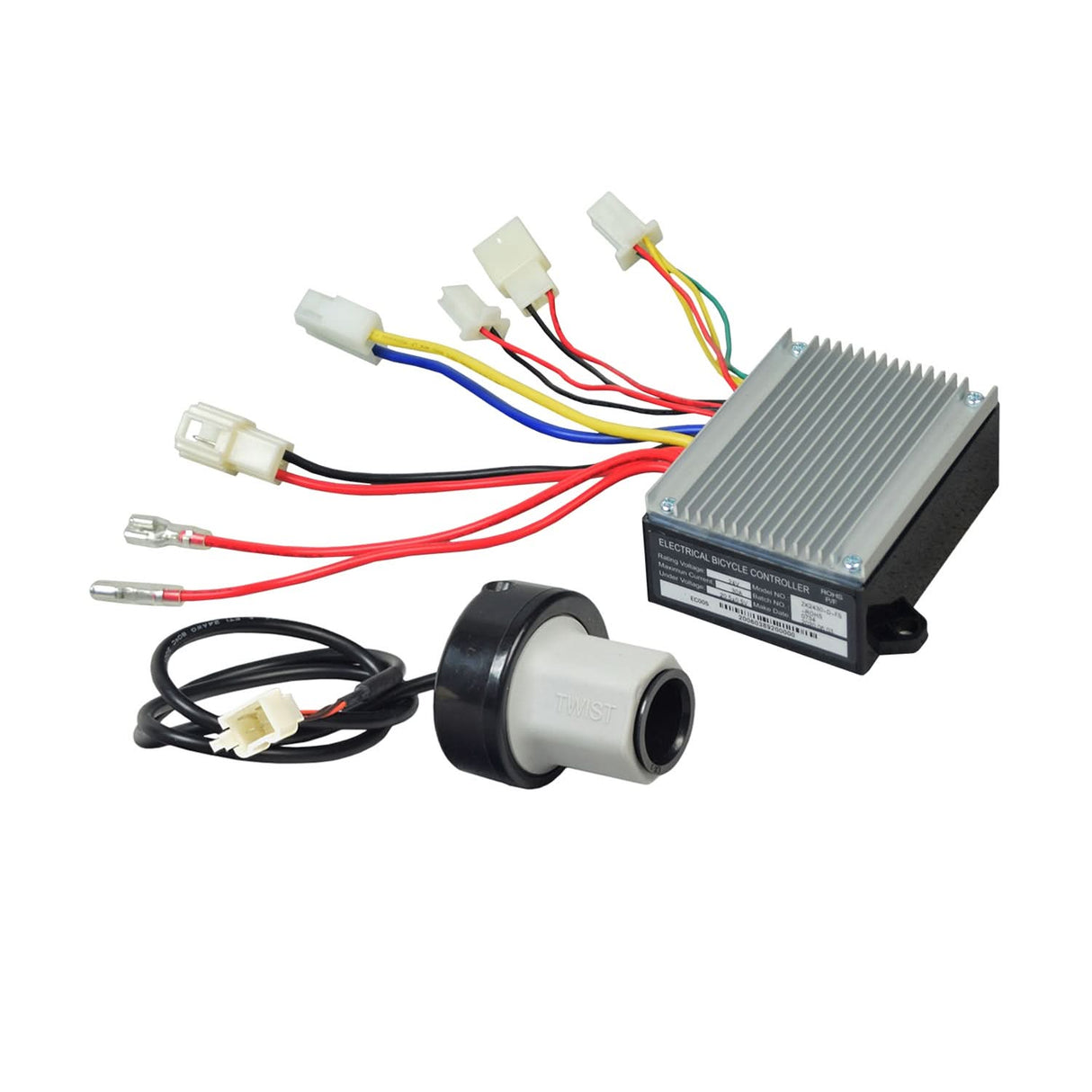

This 4-wire throttle and controller kit replaces the now discontinued Razor OEM CT-201C-3 or HB2430TYD-FS control module. This kit is for versions 13 through 23 of the Razor E200 scooter, and versions 11 and 13 through 19 of the Razor E300 scooter.
The only option available to replace your OEM 5-wire controller is to replace both the controller and throttle with this kit.

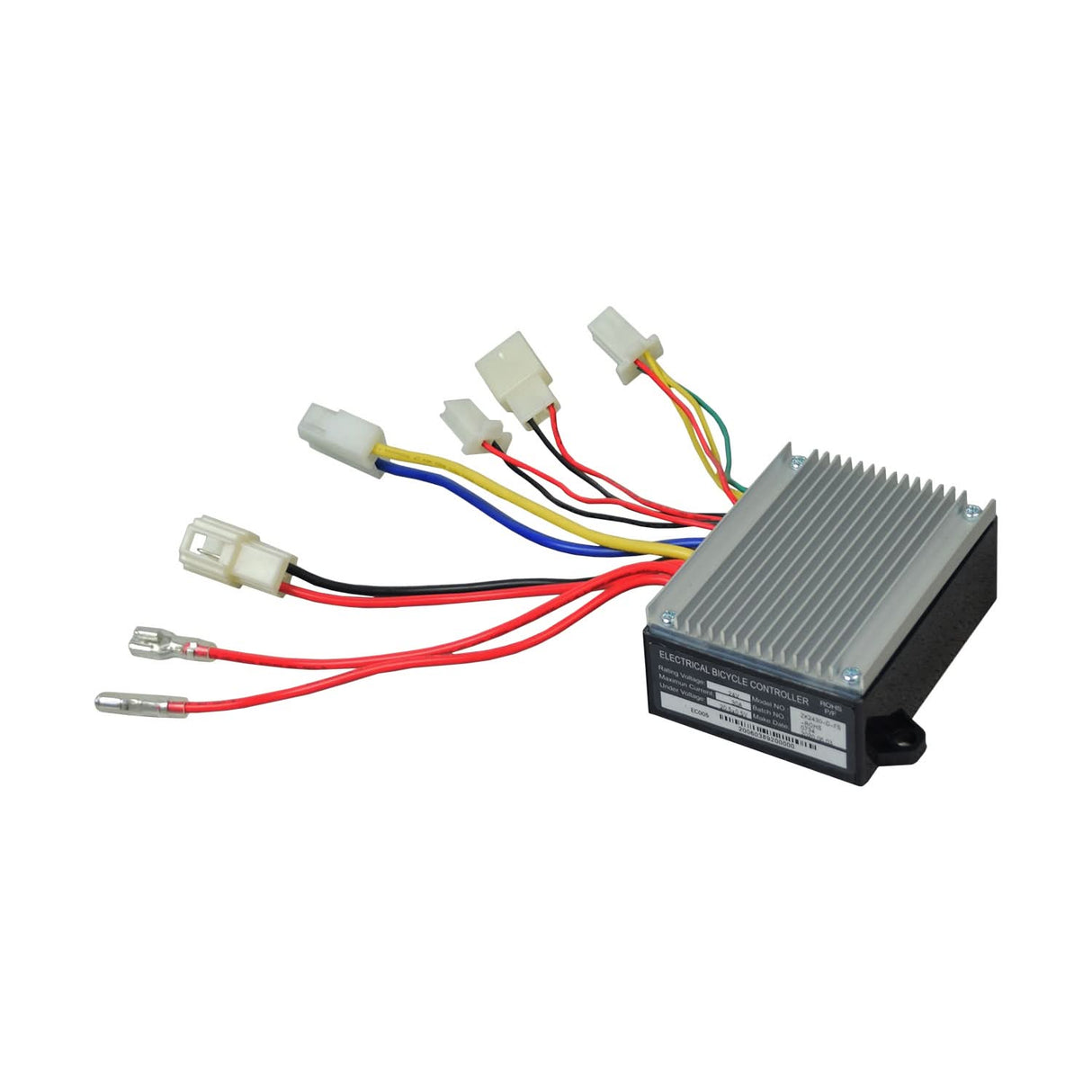

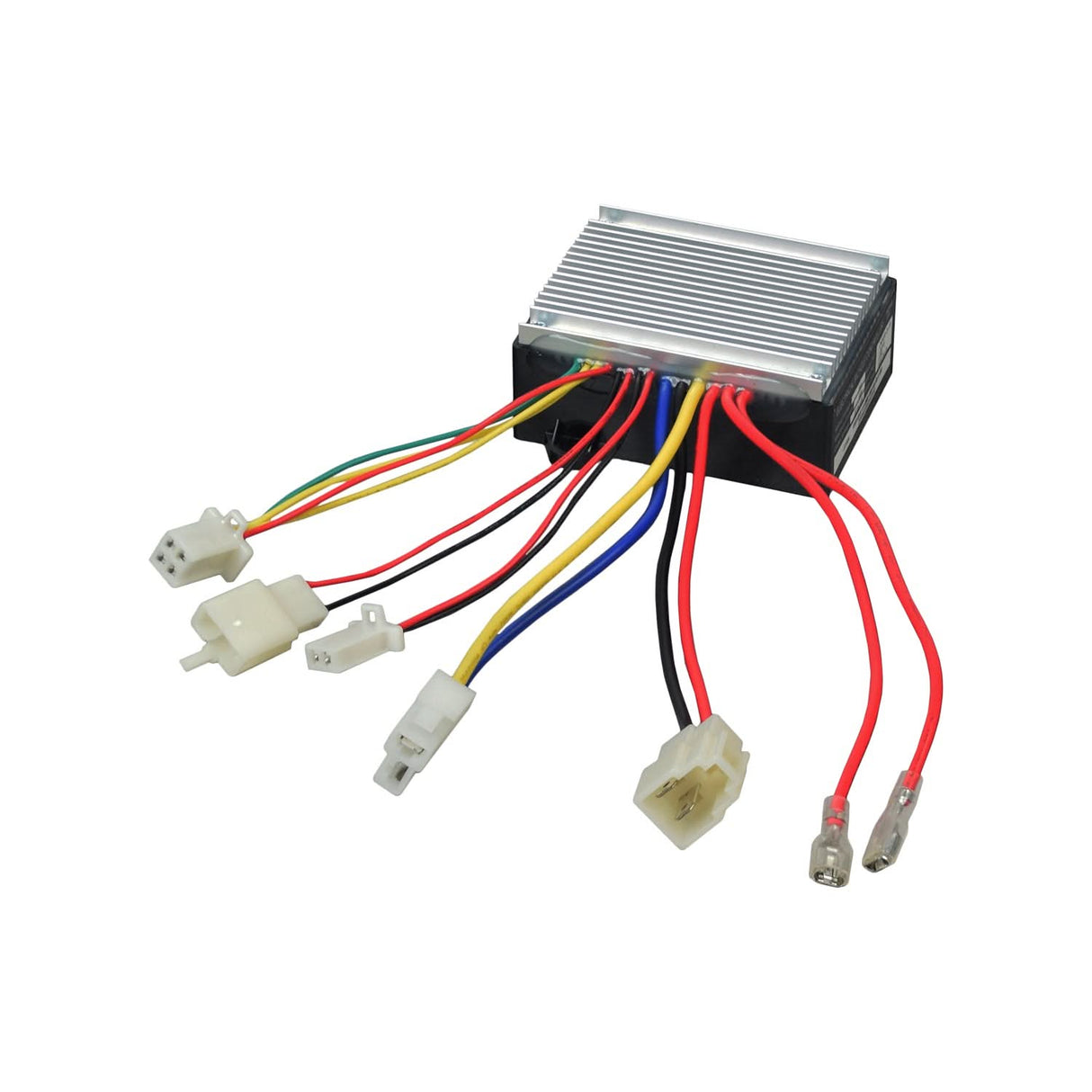

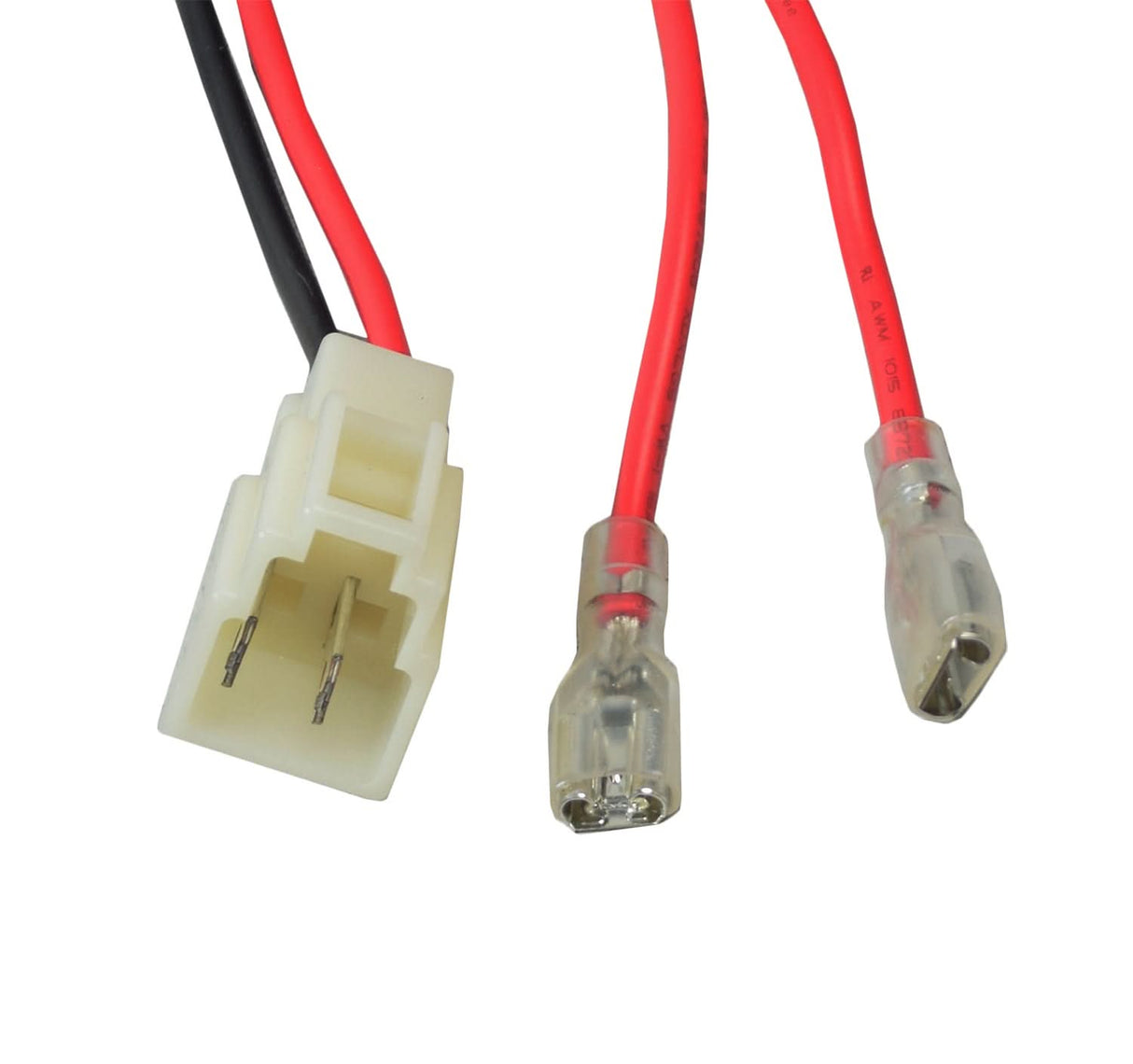

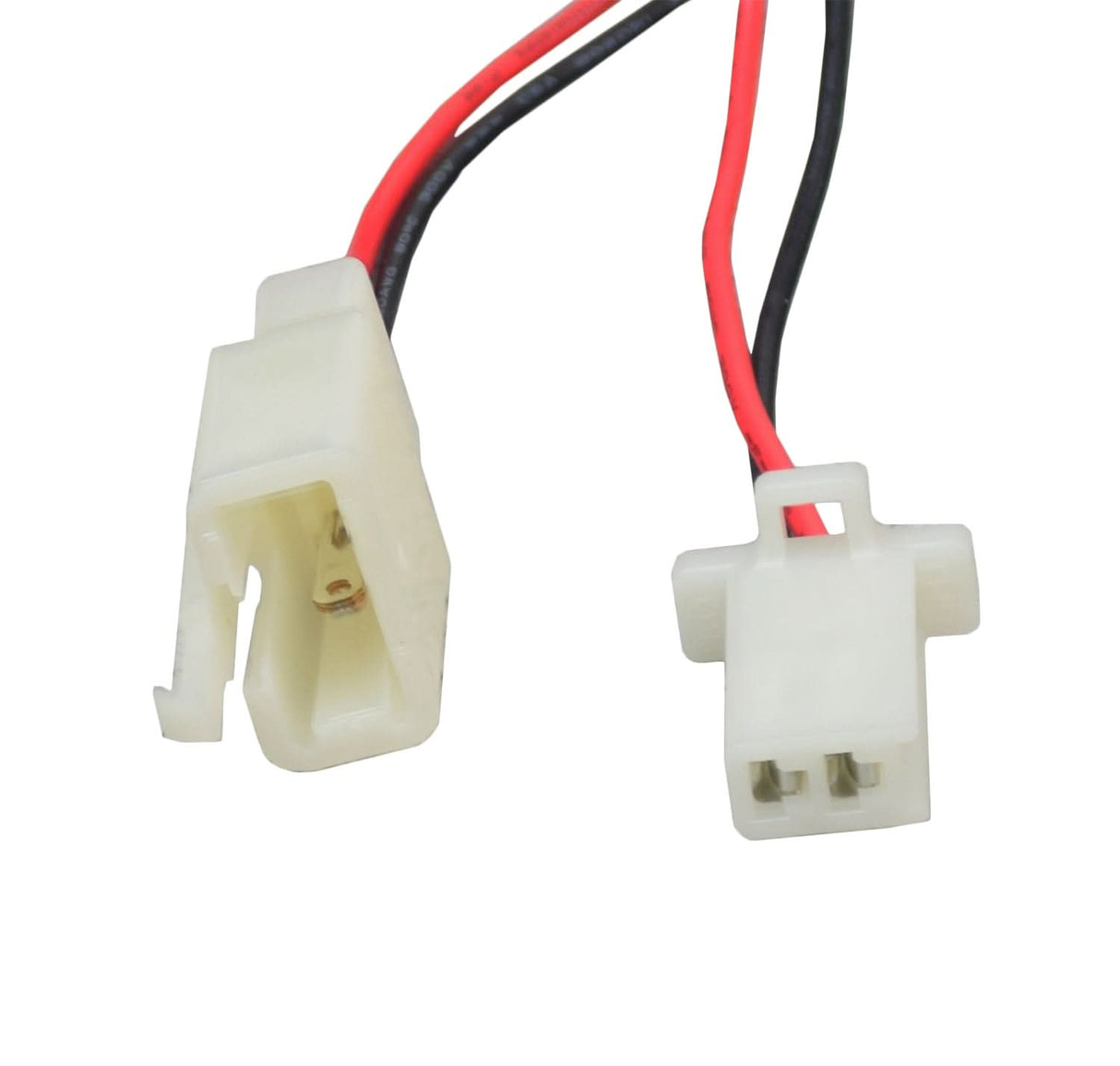

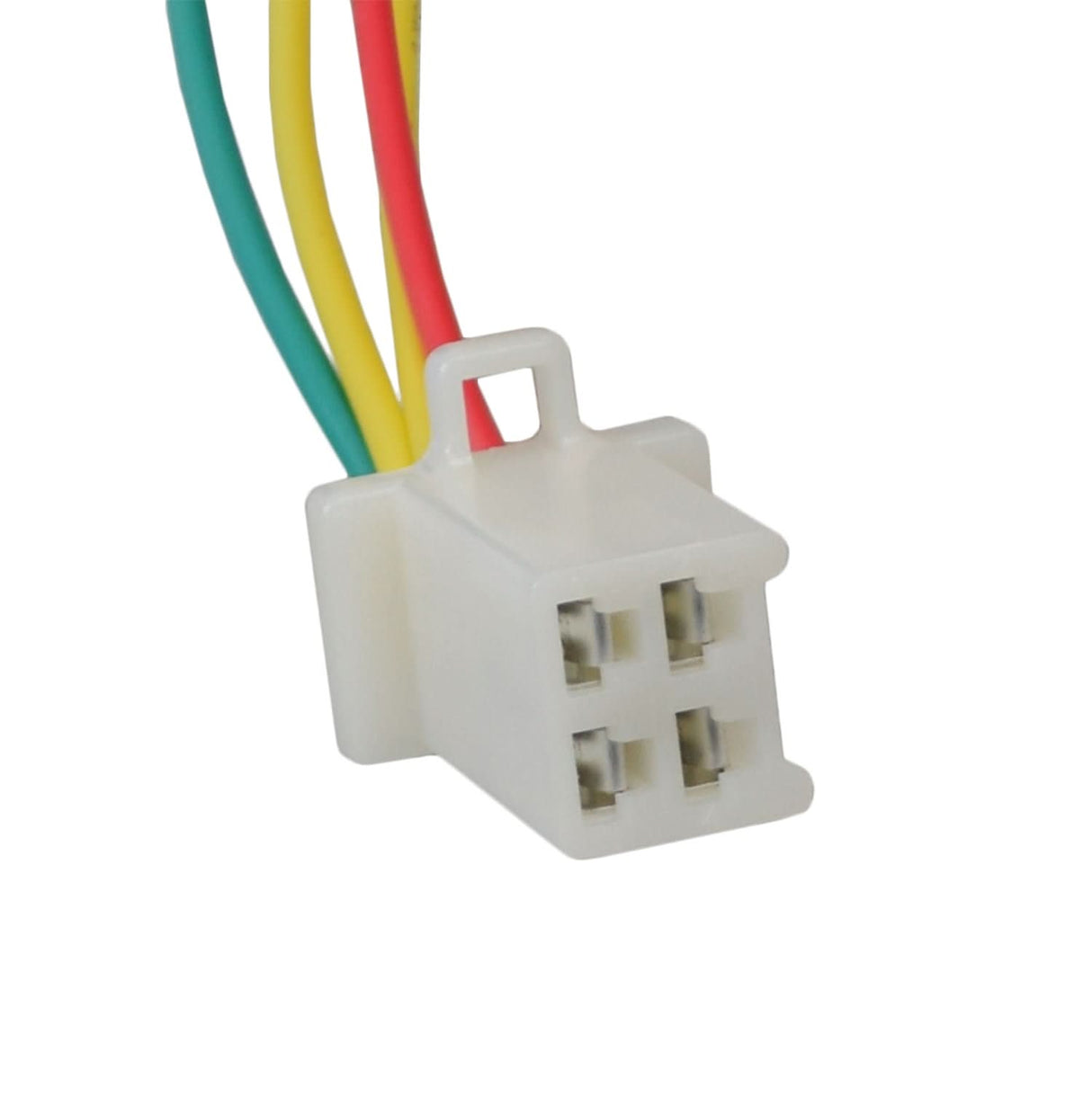

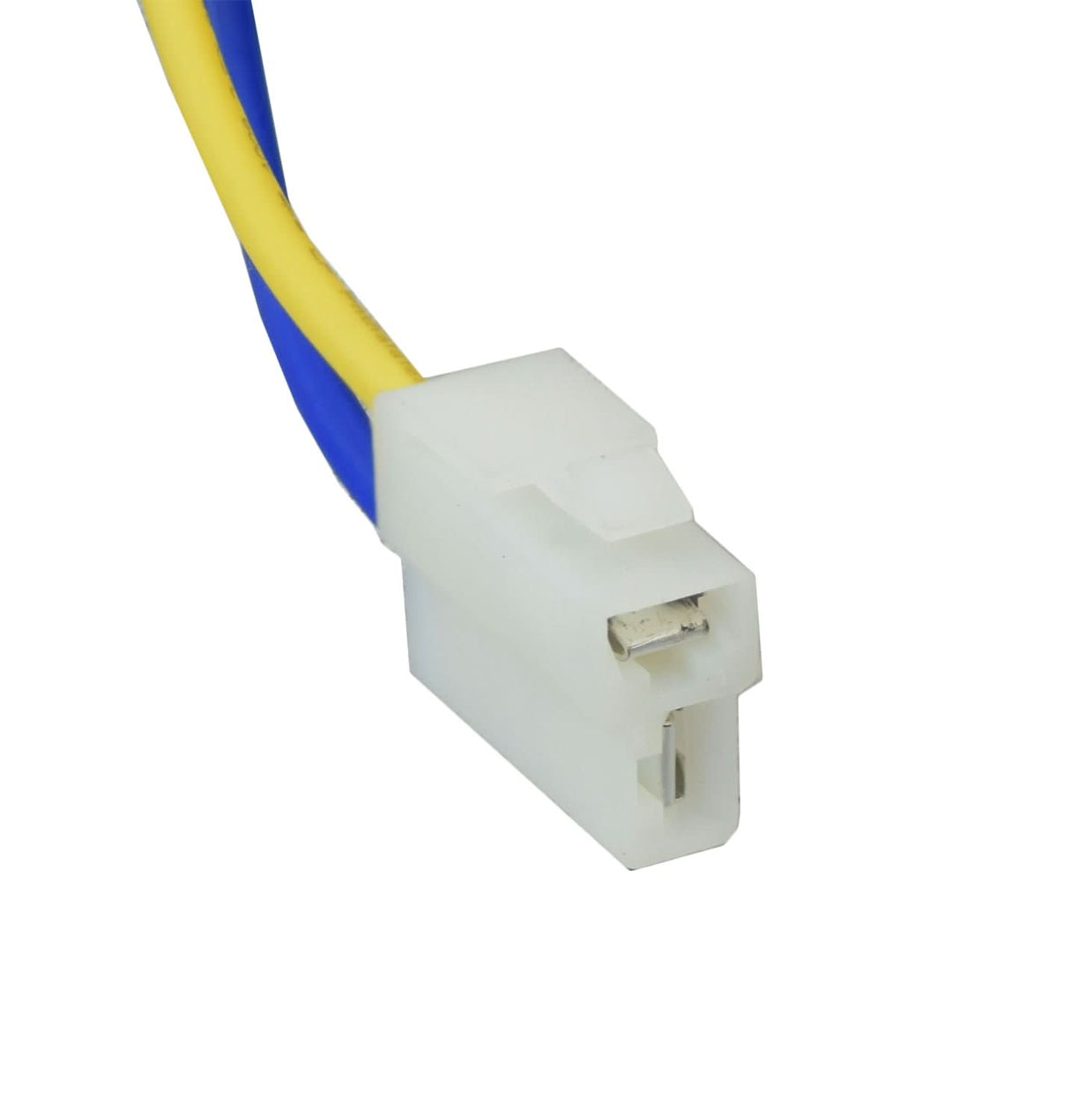

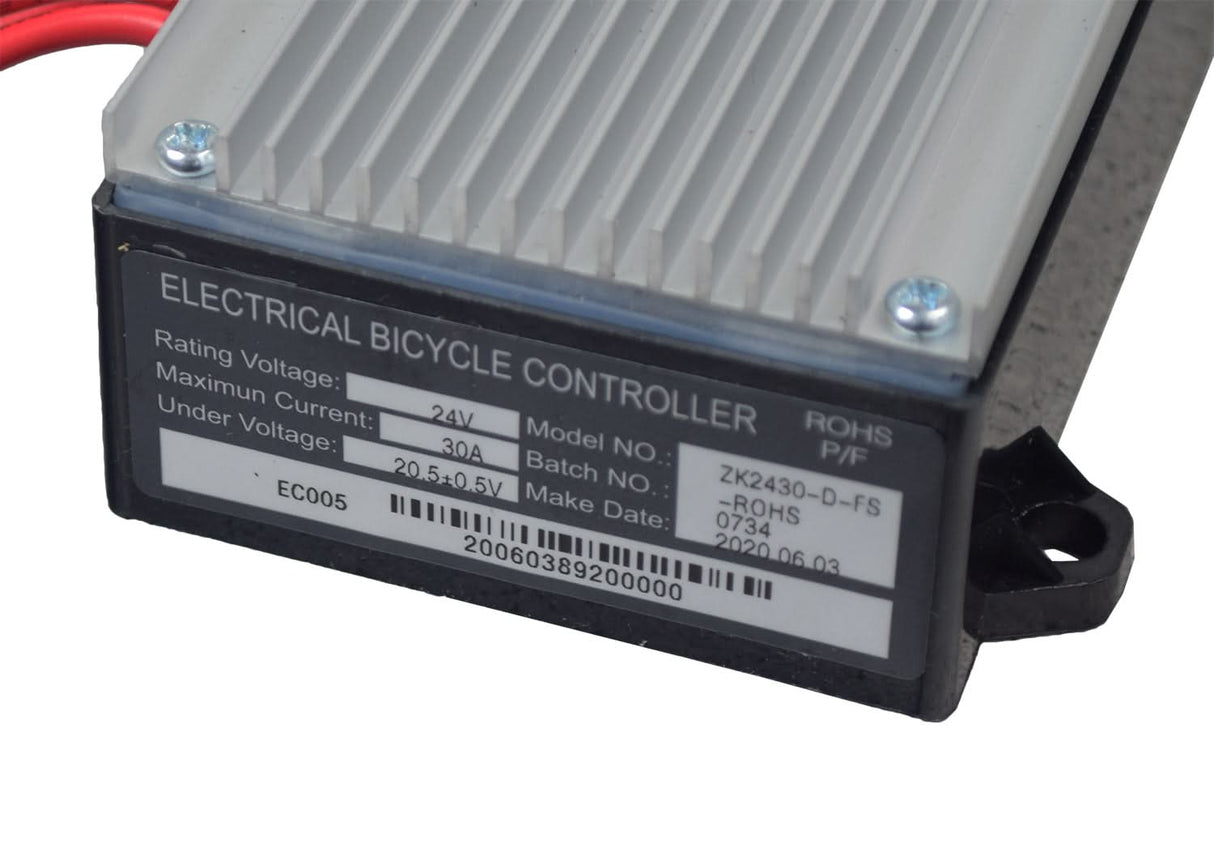

The control module included in this kit is Monster Scooter Parts part number Z09-1682, described as a ZK2430D-ROHS control module with seven connectors, and the throttle connector has four wires.

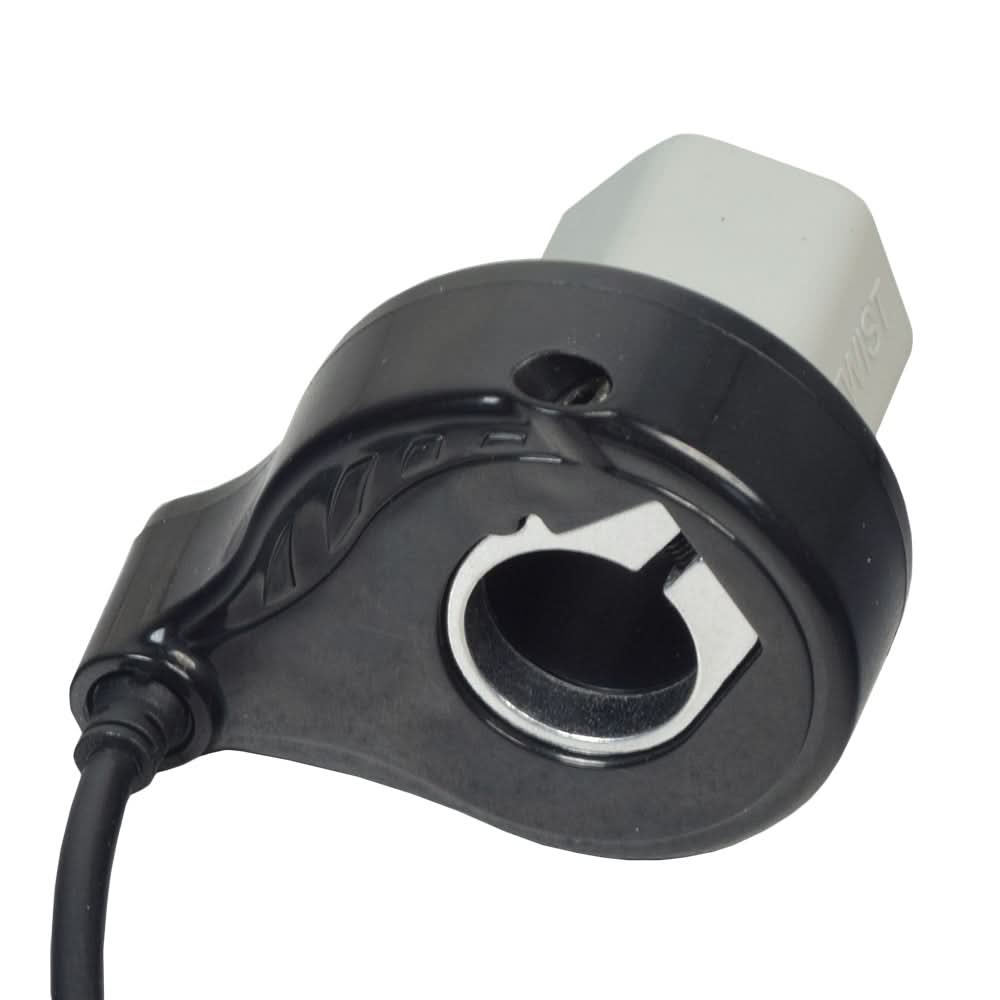

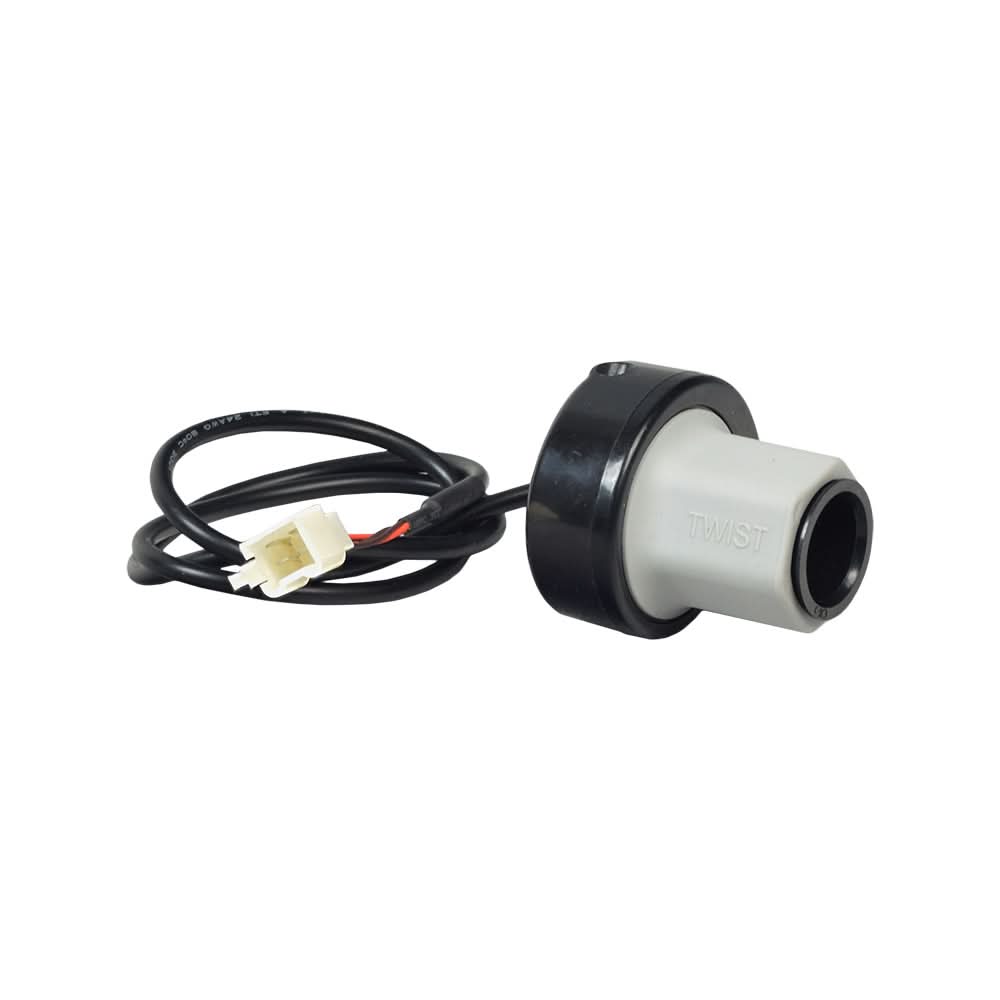

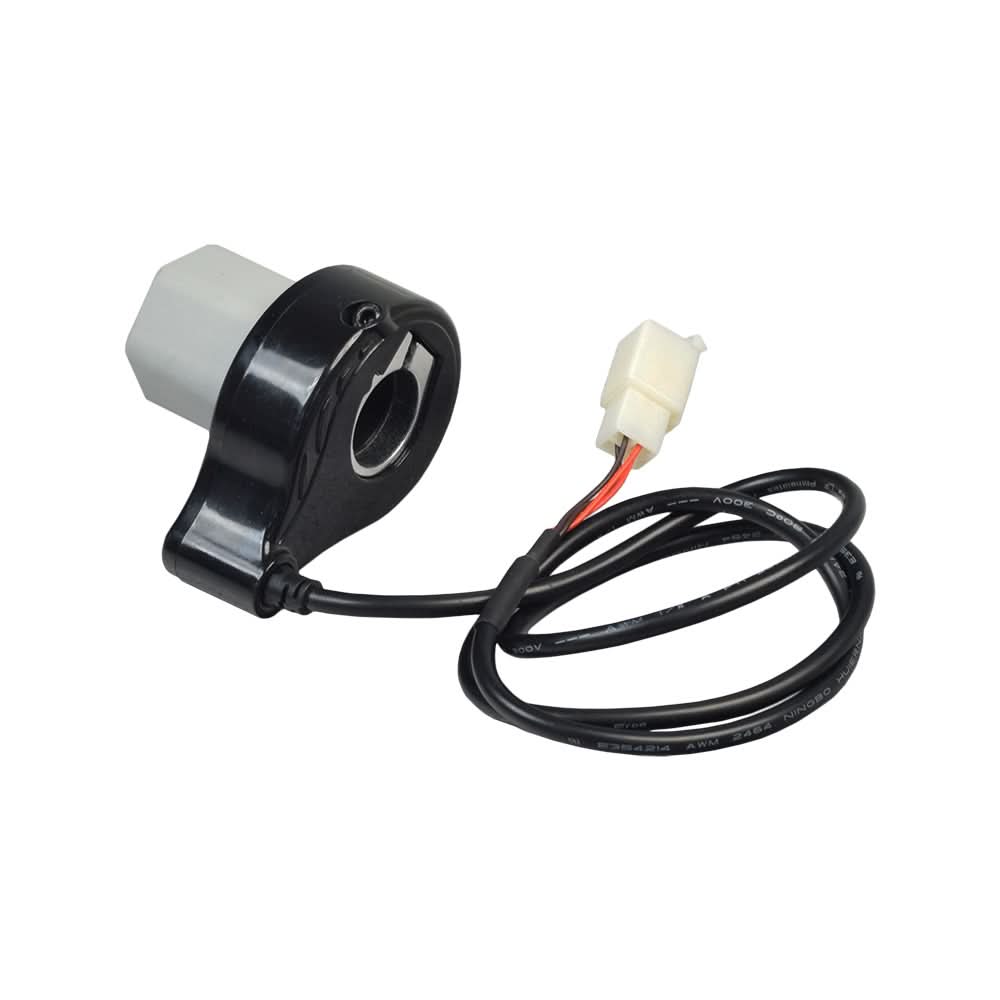

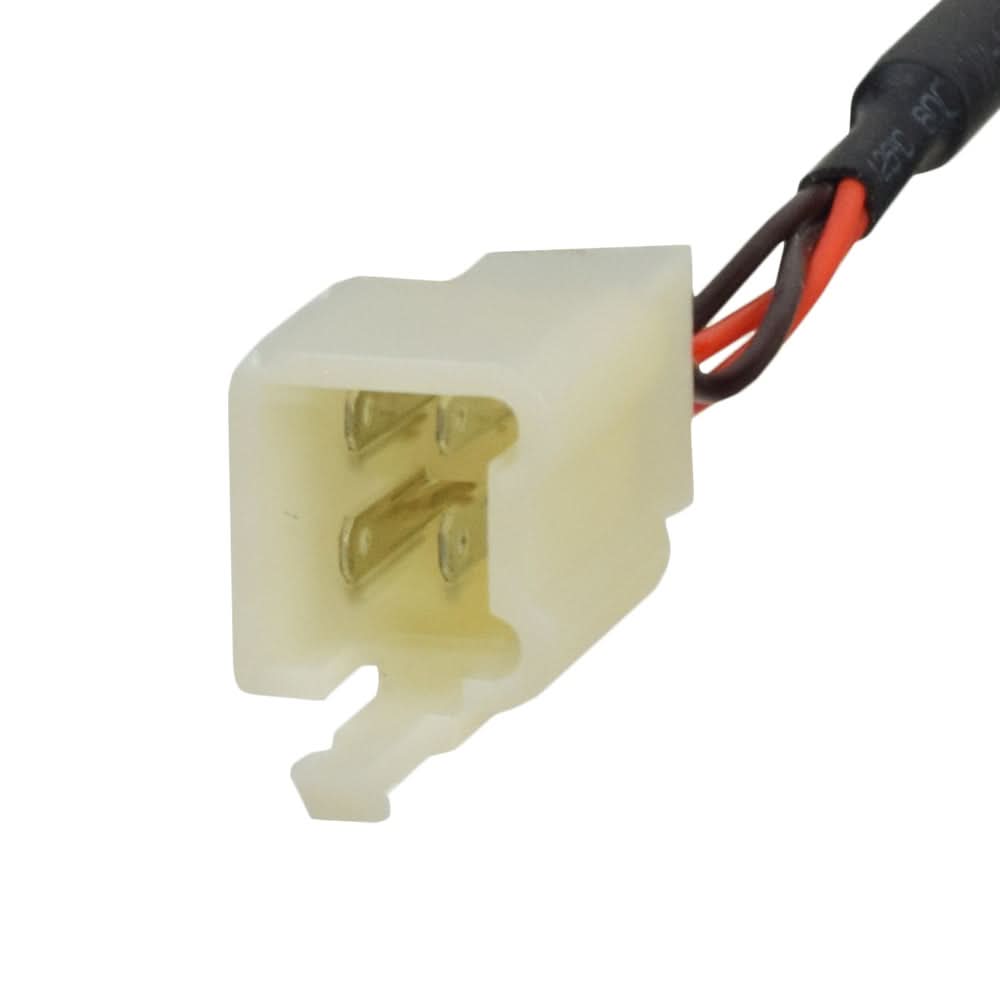

The throttle included in this kit is Monster Scooter Parts part number T53-6101, described as a Razor single-speed 4-wire twist grip throttle with 28" wires.
The original wiring diagrams for this part can be found at the following links:Razor E200 Wiring Diagram (Versions 13-19) Razor E200 Wiring Diagram (Versions 20-23) Razor E300 Wiring Diagram (Versions 11 & 13-19)
Note: Model versions can be determined based on the product ID code on your Razor product. The product ID code can be found on the battery cover and/or on the bottom of the frame. The 7th and 8th numbers in your product ID code are the version number of your Razor product (e.g. "01" = Version 1, "02" = Version 2, etc.).
Razor: W13112430184
⚠ WARNING California Residents: Proposition 65 Warning
The only option available to replace your OEM 5-wire controller is to replace both the controller and throttle with this kit.
The control module included in this kit is Monster Scooter Parts part number Z09-1682, described as a ZK2430D-ROHS control module with seven connectors, and the throttle connector has four wires.
The throttle included in this kit is Monster Scooter Parts part number T53-6101, described as a Razor single-speed 4-wire twist grip throttle with 28" wires.
The original wiring diagrams for this part can be found at the following links:
Note: Model versions can be determined based on the product ID code on your Razor product. The product ID code can be found on the battery cover and/or on the bottom of the frame. The 7th and 8th numbers in your product ID code are the version number of your Razor product (e.g. "01" = Version 1, "02" = Version 2, etc.).
Razor: W13112430184
⚠ WARNING California Residents: Proposition 65 Warning
Reviews (0)
Reviews (0)
Specifications
Specifications
Model: ZK2430HB-FS Voltage: 24V Maximum Current: 30A Deficiency Voltage Protect: 20.5V
