MOT136738 - Tilt Actuator for the Quantum Q6 Edge with TRU-Balance 3 Seating
MOT136738 - Tilt Actuator for the Quantum Q6 Edge with TRU-Balance 3 Seating is backordered and will ship as soon as it is back in stock.
Free Shipping
Free Shipping
- US domestic ship to addresses only.
- Does not include expedited shipping services.
MOT136738 - Tilt Actuator for the Quantum Q6 Edge with TRU-Balance ...
Key Features
- Genuine Pride Mobility / Quantum part MOT136738
- Power tilt actuator for the seating system
- 24V RE3005 actuator rated at 6000 N
- Fits the Quantum Q6 Edge with TRU-Balance 3 seating
- Standard version (C1 on diagram), not the HD actuator
Description
Description

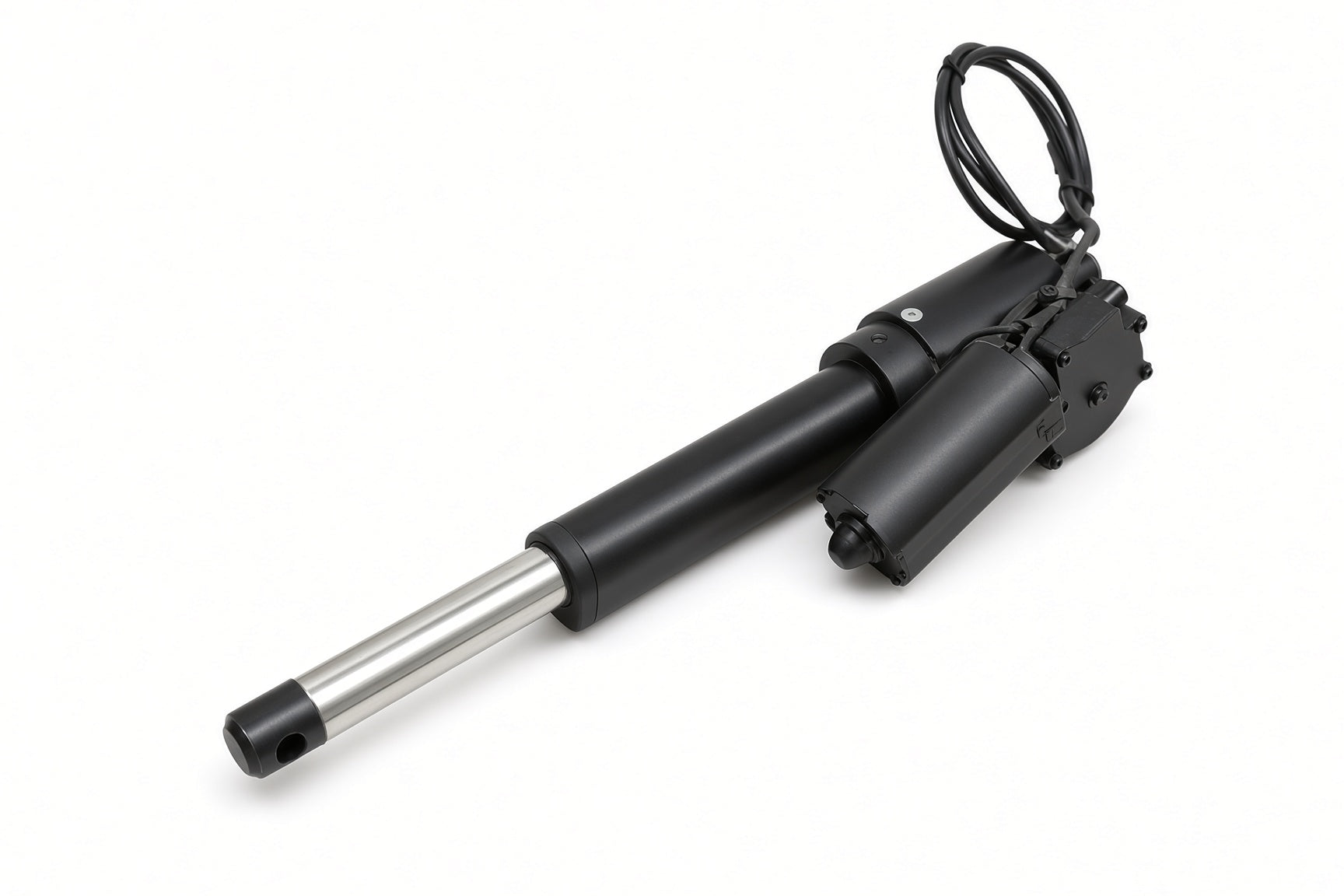

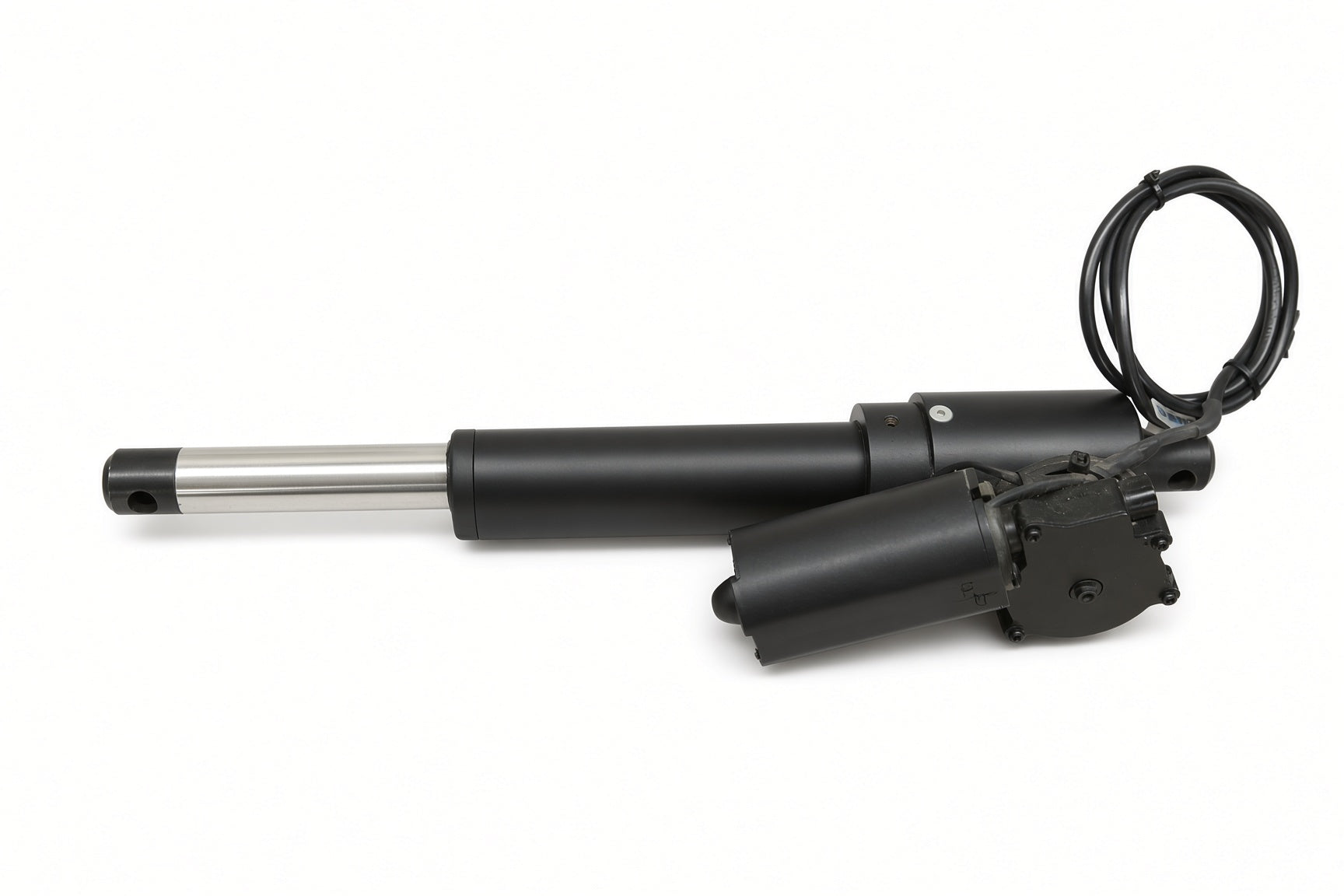

This is the genuine Pride Mobility / Quantum Rehab power tilt actuator for the Quantum Q6 Edge power chair equipped with TRU-Balance 3 seating. The tilt actuator is the electric motor and drive that tilts the seat back and forward when you use the tilt function, shifting your weight for comfort and pressure relief.

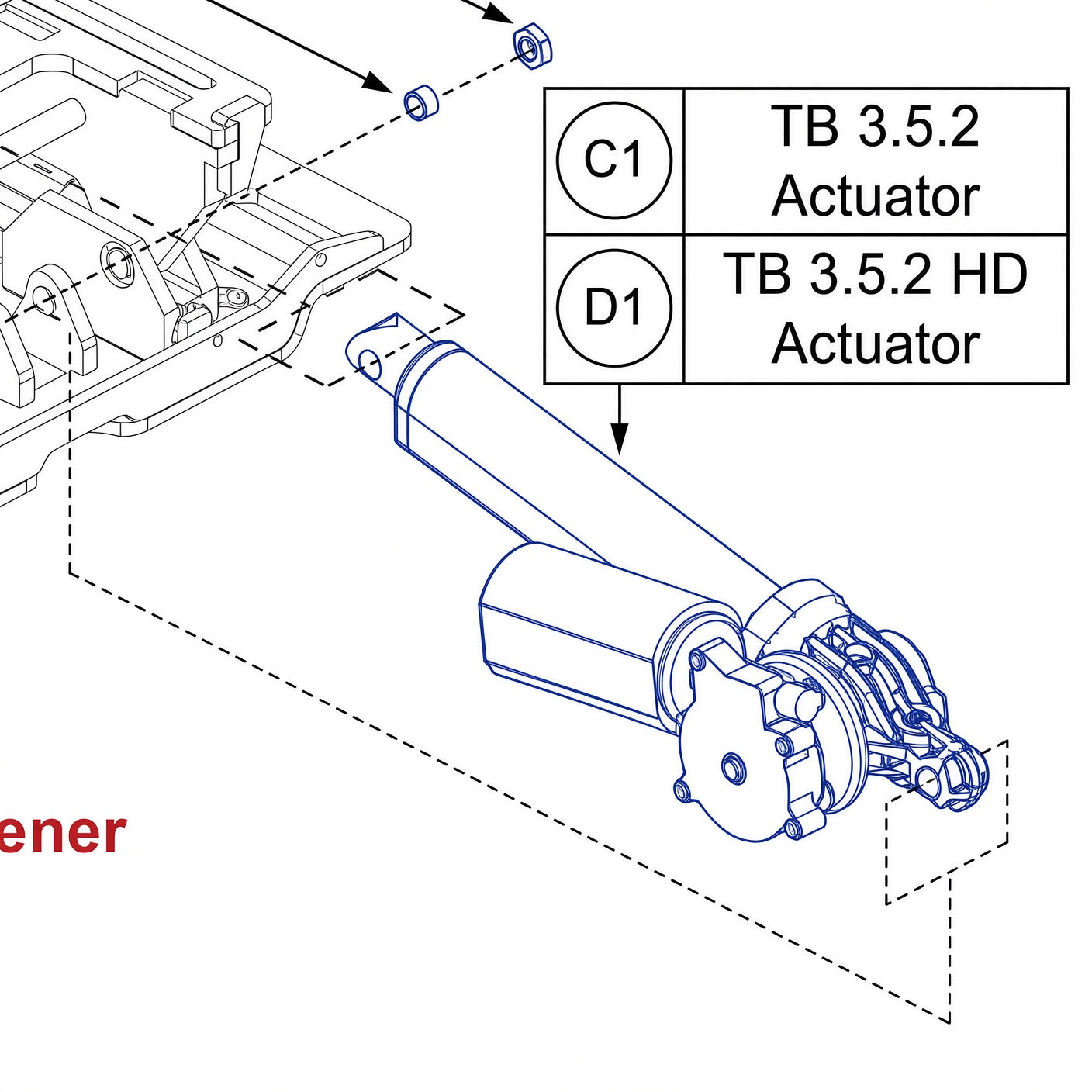

This is the standard TRU-Balance 3 tilt actuator, shown as C1 on the parts diagram. It is a 24 volt RE3005 actuator rated at 6000 N, with a 265–365 mm retracted-to-extended length. It is not the HD version (D1 on the diagram), which is a different part.
Replace it if the seat no longer tilts, tilts slowly or unevenly, stops partway, or the actuator makes grinding or clicking noises. Make sure your chair has standard TRU-Balance 3 seating before ordering.
Pride Mobility Part Number: MOT136738
⚠ WARNING California Residents: Proposition 65 Warning
Reviews (0)
Reviews (0)
Specifications
Specifications
Actuator Model: RE3005
Voltage: 24 V
Force Rating: 6000 N (approx. 1,349 lbf)
Length: 265–365 mm retracted to extended (approx. 10.4–14.4 in)
Stroke: 100 mm (approx. 3.9 in)
Diagram Position: C1 (standard TRU-Balance 3 actuator)
Fits: Quantum Q6 Edge with TRU-Balance 3 seating
Pride Part Number: MOT136738
