Tanaka 40cc PureFire Scooter & Utility Engine

40cc 2-stroke scooter & utility engine from Nikko Tanaka Engineering U.S.A.

This engine features an excellent power-to-weight ratio and multi-position operation. All Tanaka engines are built with the highest quality engine components for long life and quick and easy starting.

Tanaka's PureFire innovative two-stroke engine produces ultra-low emissions without the need for special or additional internal moving parts.

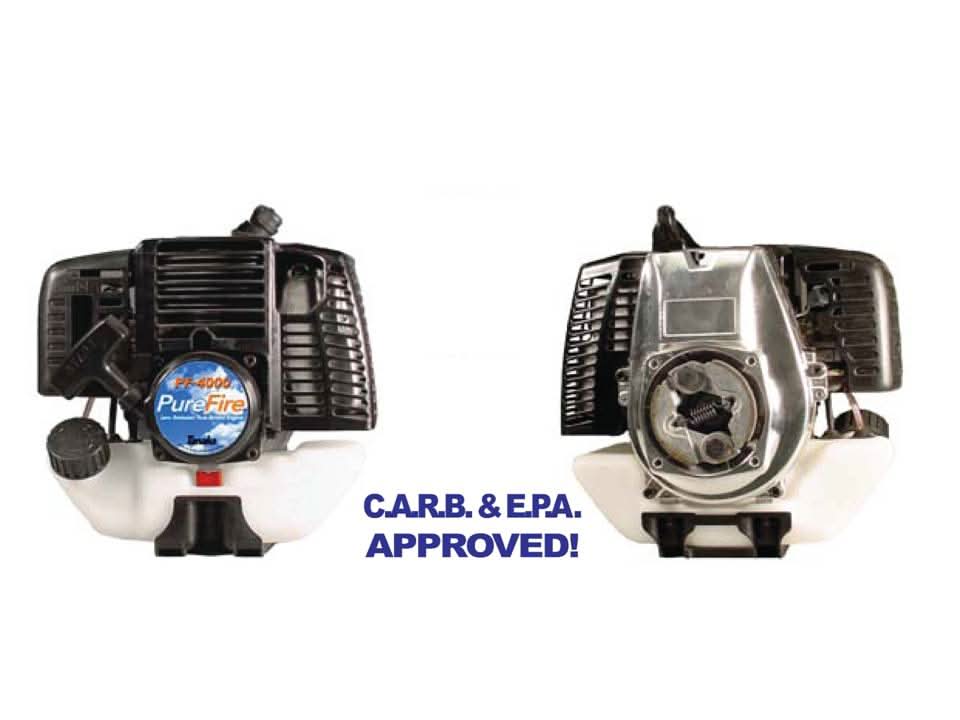

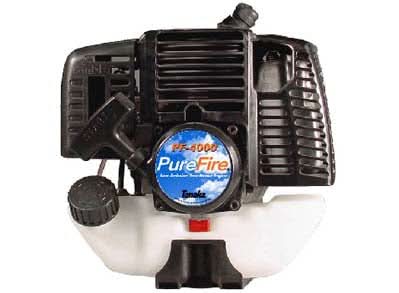

Engine comes complete as pictured with carburetor, exhaust, air filter, pull start, and fuel tank.

SPECIFICATIONS

• Cylinder Plating: Chrome
• Piston Rings: 2
• Displacement (cc): 40
• Bore X Stroke (mm): 39.8 x 32
• Compression Ratio: 7.2:1

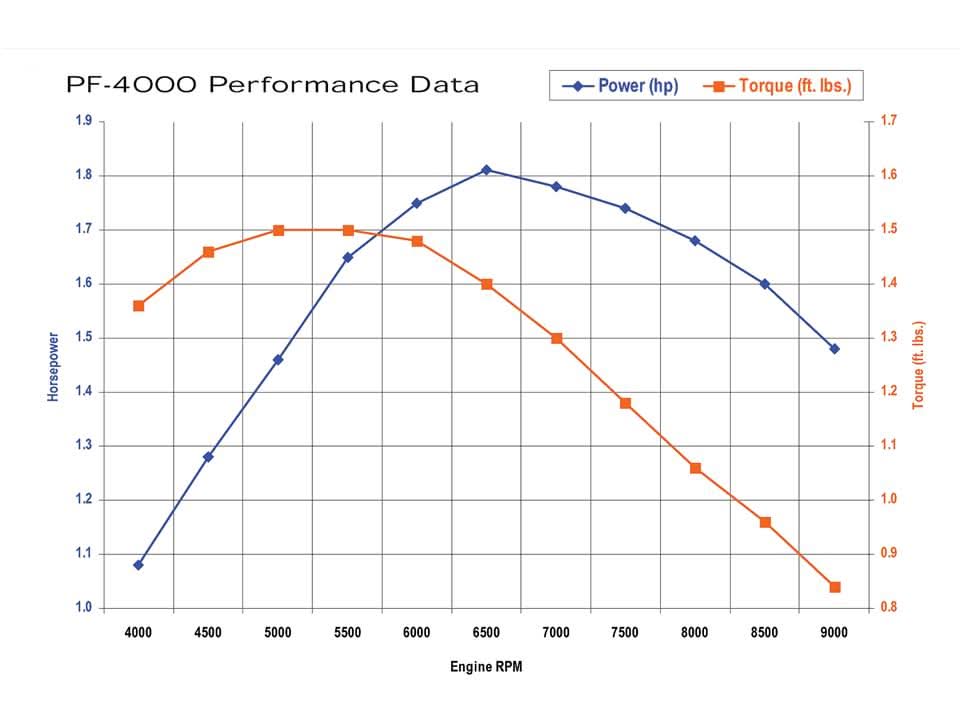

• Maximum H.P.: 2.2
• Maximum Torque KG M Ft. Lbs.: 0.21 (1.5) @ 5500 rpm
• Idling RPM: 3000+/- 200
• Rotation (Recoil Side): Clockwise
• Fuel Capacity - FL. OZ. (CC): 1000 (33.8)li>
• Primer Bulb: Yes
• Clutch Diameter (mm): 78mm
• Spark Plug: CJ8Y (Champion)
• Ignition System: TCI
• Engine Dimensions - LxWxH (mm): 171 x 256 x 270
• Engine Weight - Lbs. (KG): 8.2 (3.7) li>
• EPA Phase 2 Compliant: Yes
• C.A.R.B. Tier II Compliant: Yes
• Gas/Oil Ratio: 50:1

Tanaka: PF-4000
