Tanaka 32cc PureFire Scooter & Utility Engine

Tanaka PF-3300 32cc 2-stroke engine featuring an excellent power-to-weight ratio. All Tanaka engines are built with the highest quality engine components for long life and quick and easy starting.

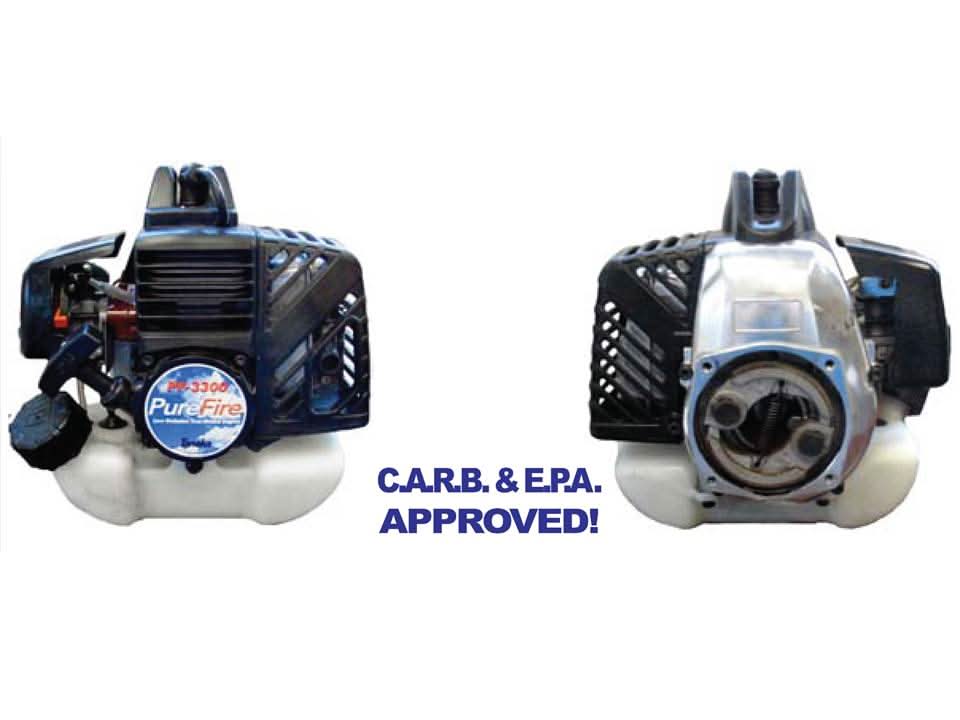

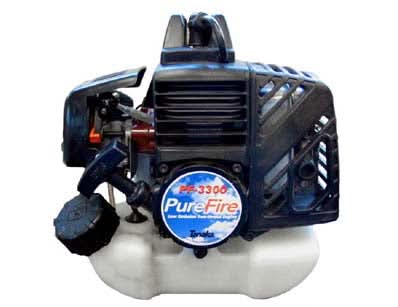

Engine comes complete as pictured with carburetor, exhaust, air filter, pull start, and fuel tank.

Tanaka became the first two-stroke manufacturer to certify to the stringent C.A.R.B. Tier II emissions regulations. All PureFire Tanaka engines comply with EPA Phase 2 regulations and all Tanaka product groups are C.A.R.B Tier II compliant.

SPECIFICATIONS

• Cylinder Plating: Chrome
• Piston Rings: 2
• Displacement (cc): 32
• Bore X Stroke (mm): 37 x 30
• Compression Ratio: 7.0 : 1
• Maximum H.P.: 1.6
• Maximum Torque KG M Ft. Lbs.: 0.16 (1.16) @ 5000 rpm
• Idling RPM: 3000+/- 200
• Rotation (Recoil Side): Clockwise
• Fuel Capacity - FL. OZ. (CC): 700 (23.8)
• Primer Bulb: Yes
• Clutch Diameter (mm): 78mm
• Spark Plug: CJ6Y (Champion)
• Ignition System: TCI
• Engine Dimensions - LxWxH (mm): 171 x 243 x 242
• Engine Weight - Lbs. (KG): 6.1 (2.8)
• EPA Phase 2 Compliant: Yes
• C.A.R.B. Tier II Compliant: Yes
• Gas/Oil Ratio: 50:1

⚠ WARNING California Residents: Proposition 65 Warning

• Cylinder Plating: Chrome
• Piston Rings: 2
• Displacement (cc): 32
• Bore X Stroke (mm): 37 x 30
• Compression Ratio: 7.0 : 1
• Maximum H.P.: 1.6
• Maximum Torque KG M Ft. Lbs.: 0.16 (1.16) @ 5000 rpm
• Idling RPM: 3000+/- 200
• Rotation (Recoil Side): Clockwise
• Fuel Capacity - FL. OZ. (CC): 700 (23.8)
• Primer Bulb: Yes
• Clutch Diameter (mm): 78mm
• Spark Plug: CJ6Y (Champion)
• Ignition System: TCI
• Engine Dimentions - LxWxH (mm): 171 x 243 x 242
• Engine Weight - Lbs. (KG): 6.1 (2.8)
• EPA Phase 2 Compliant: Yes
• C.A.R.B. Tier II Compliant: Yes
• Gas/Oil Ratio: 50:1
