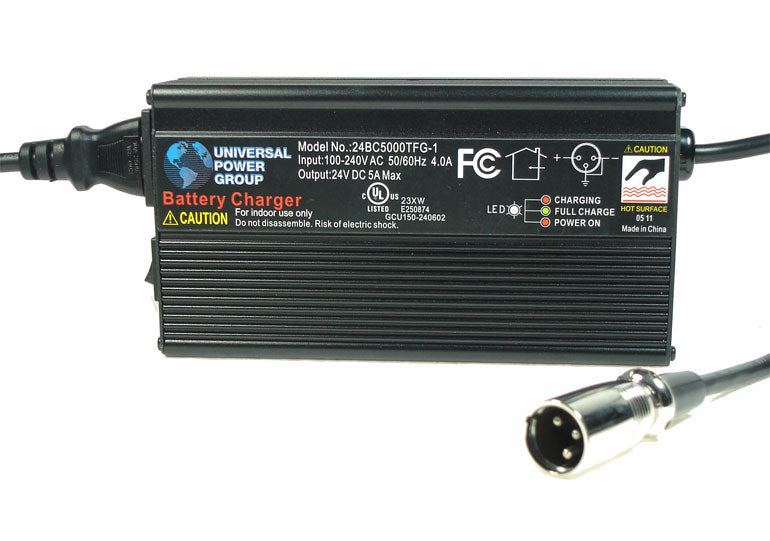

24 Volt 5.0 Amp XLR 24BC5000TFG-1 AGM/Gel Battery Charger (Blemished)

This scratch & Dent** 24 Volt 5.0 Amp XLR 24BC5000TFG-1 AGM/Gel Battery Charger from Universal Power Group (UPG) is an excellent and economical way to keep your Gel batteries charged.

Deep cycle Gel Cell batteries are usually longer lasting but are more sensitive to being overcharged. Using an AGM style charger on Gel Cell batteries is a sure fire way to guarantee their poor performance and premature failure. Our Gel Cell battery charger has an output range of 28.8 volts, making it safe to use with AGM as well.

The charger features an automatic shut off when the battery charging cycle is complete. The charging time varies greatly with the level of battery depletion. This charger is Underwriters Laboratories (UL) Listed for dry location use only.

Short Circuit Protection - Prevents damage caused when operating in a short circuit condition for an indefinite period of time. The charger is "self-recovering" when the fault condition is removed.

Reverse Polarity Protection - Prevents damage when positive and negative polarities are connected in reverse.

Fully Automatic Operation - Safely charges and maintains a full charge. the final stage of charging is the float mode and the battery may remain connected indefinitely. In this mode, the charger maintains fully charged condition.

Designed to Prevent Over Charging - Automatically switches to Float Mode.

Complete 3-Stage Process - Bulk Charge, Absorption, Maintenance/Float.

Low Voltage Protection - When the battery voltage is below a preset value, the charger will not start charging.

LED Display - 3 LED displays indicate the charging status: power on, charging, charged.

Light Weight - Switch mode chargers are very much lighter than linear chargers.

NOTE: Suitable for use on Gel Cell & AGM sealed lead acid batteries of size 15 Amp Hour or larger.
Note: As a built-in safety feature, the battery charger will not operate if the existing battery has less than 18 volts of power.

Universal Power Group (UPG): 24BC5000TFG-1

⚠ WARNING California Residents: Proposition 65 Warning

UPG Model Number: 24BC5000TFG-1
Manufacturer Part Number: 71705
Input Voltage: 100-240 VAC +/- 10%
Input Frequency: 47-63 Hz
Output Voltage Fast Charge (Bulk): DC 28.8V +/- 0.5V
Output Voltage Float: DC 26.4V +/- 0.5V
Output Current: 5.0A (Fast Charge Bulk)
Recommended Battery Capacity: 15-50 Ah
Operating Temperature: +32℉ to +104℉ (0℃ to 40℃)
Storage Temperature: -4℉ to +140℉ (-20℃ to +60℃)

LED Indicators:

RED Power LED on:
AC Power Present

RED Power LED on, RED Charging LED on:
Charging Stage

RED Power LED on, GREEN Charging LED on:
Charging Complete
