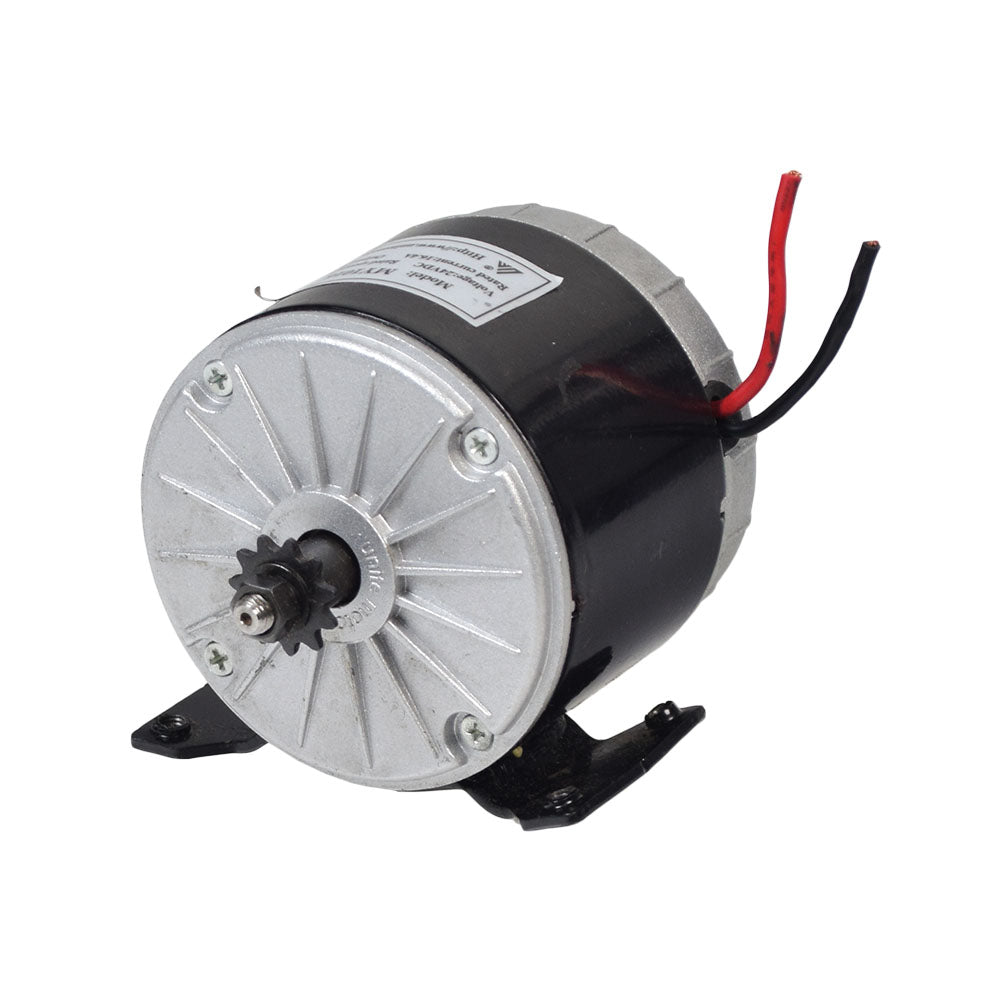

24 Volt 300 Watt MY1016 Electric Motor with 11 Tooth #25 Chain Sprocket (Blemished)

Our Scratch & Dent 24 volt 300 watt MY1016 electric motor with an 11 tooth #25 chain sprocket is a great way to save some money. This example suffered a dent to the mounting bracket, and adding insult to injury, the wires have been clipped to about 2-1/2" long. Other than that, this little 300 watt motor is an excellent one for someone with basic garage skills. It even comes with an 11-tooth, #25 chain sprocket as well as a 4-bolt mounting bracket.

Note: This electric motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires (reversing the polarity to the motor).

⚠ WARNING California Residents: Proposition 65 Warning

Model: MY1016
Voltage: 24 volt DC
Rated Speed: 2650-2900 RPM
Rated Current: 16.0-16.4 amp
Output: 300 watt
Sprocket: 11-tooth #25 chain sprocket
Case Length: 4-1/8" (105 mm)
Case Diameter: 3-15/16" (100 mm)
Drive Shaft Length: 1" (25 mm)
Drive Shaft Diameter: 5/16" (8 mm)
Bolt Hole Distance (Adjacent): 4-1/8" (105 mm)
Bolt Hole Distance (Cross Bracket): 2-3/16" (56 mm)
