Monster Scooter Parts  |  SKU: E05-1326-X01

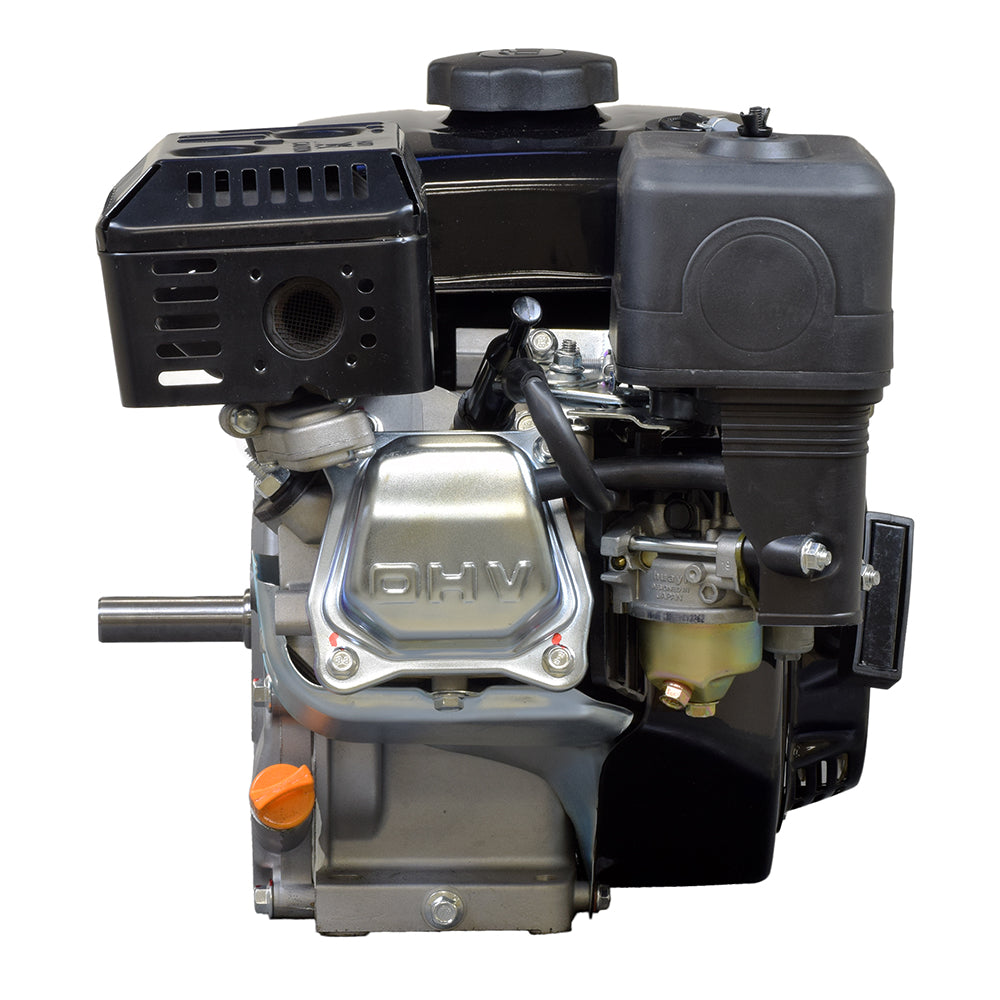

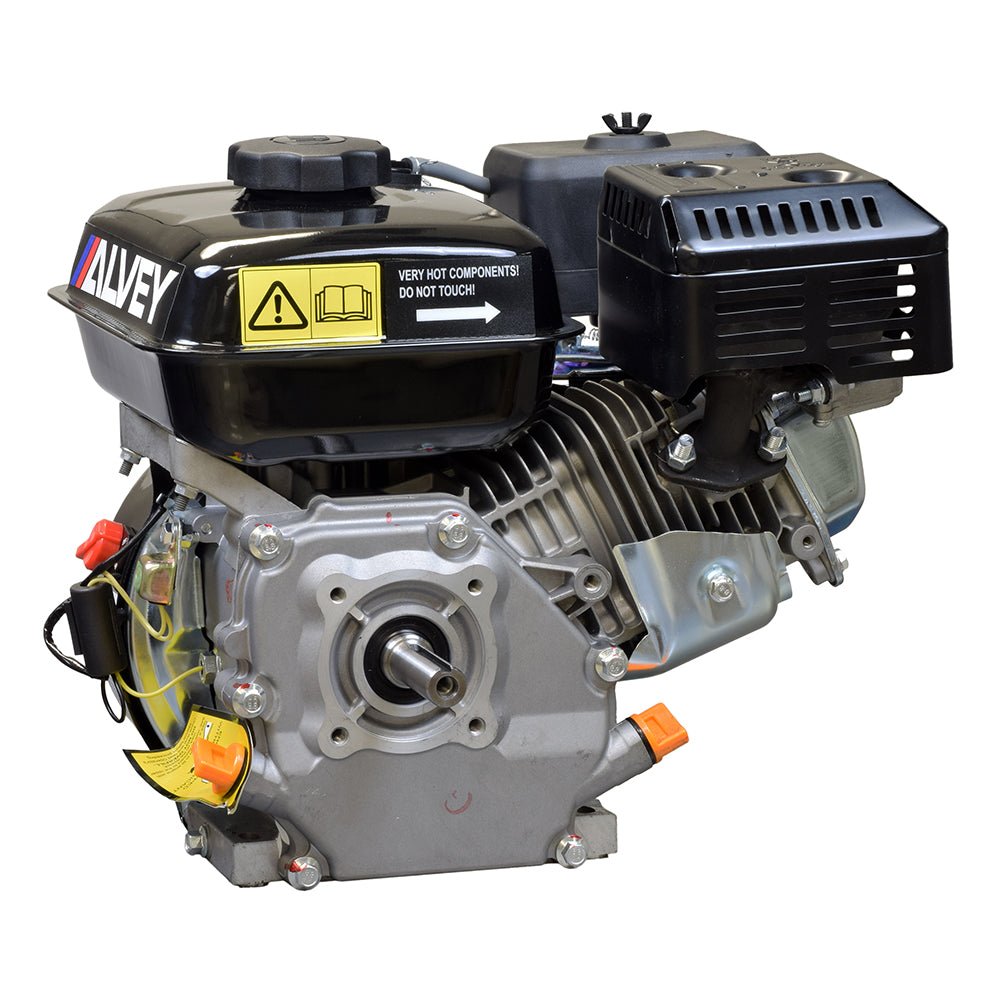

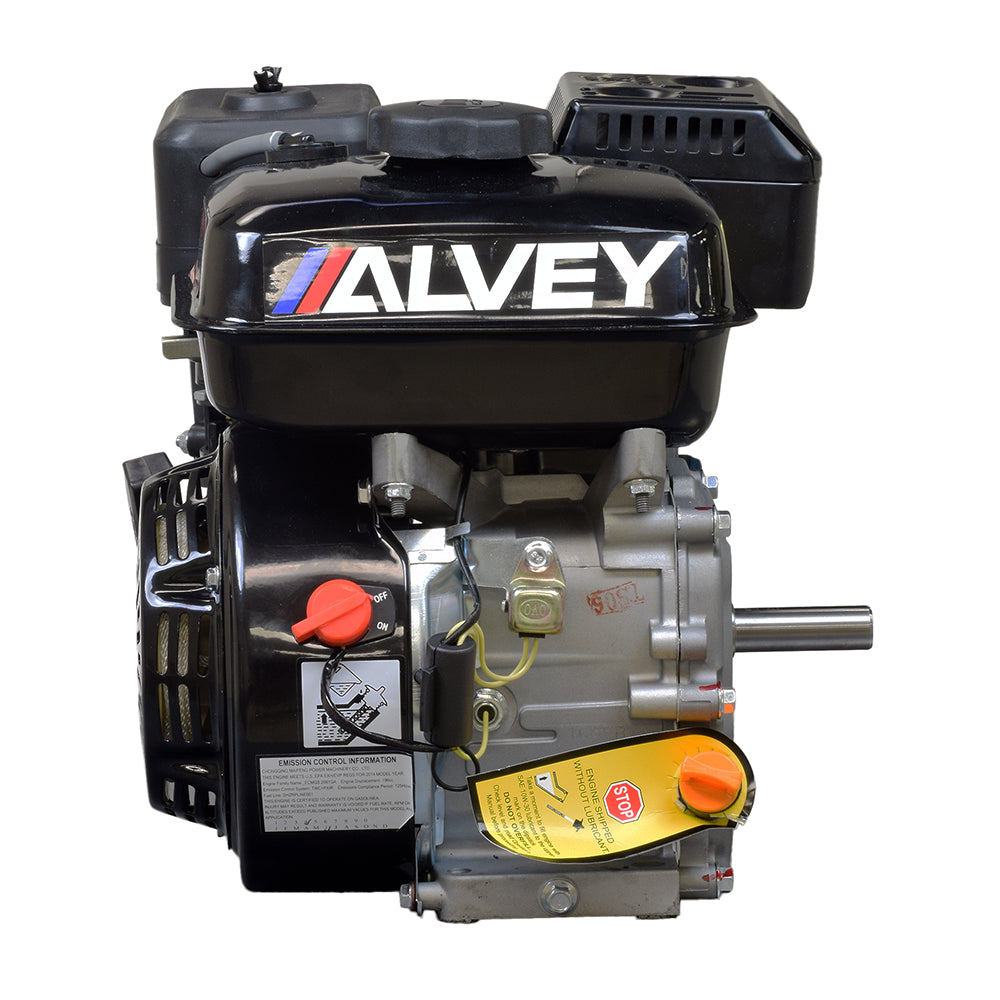

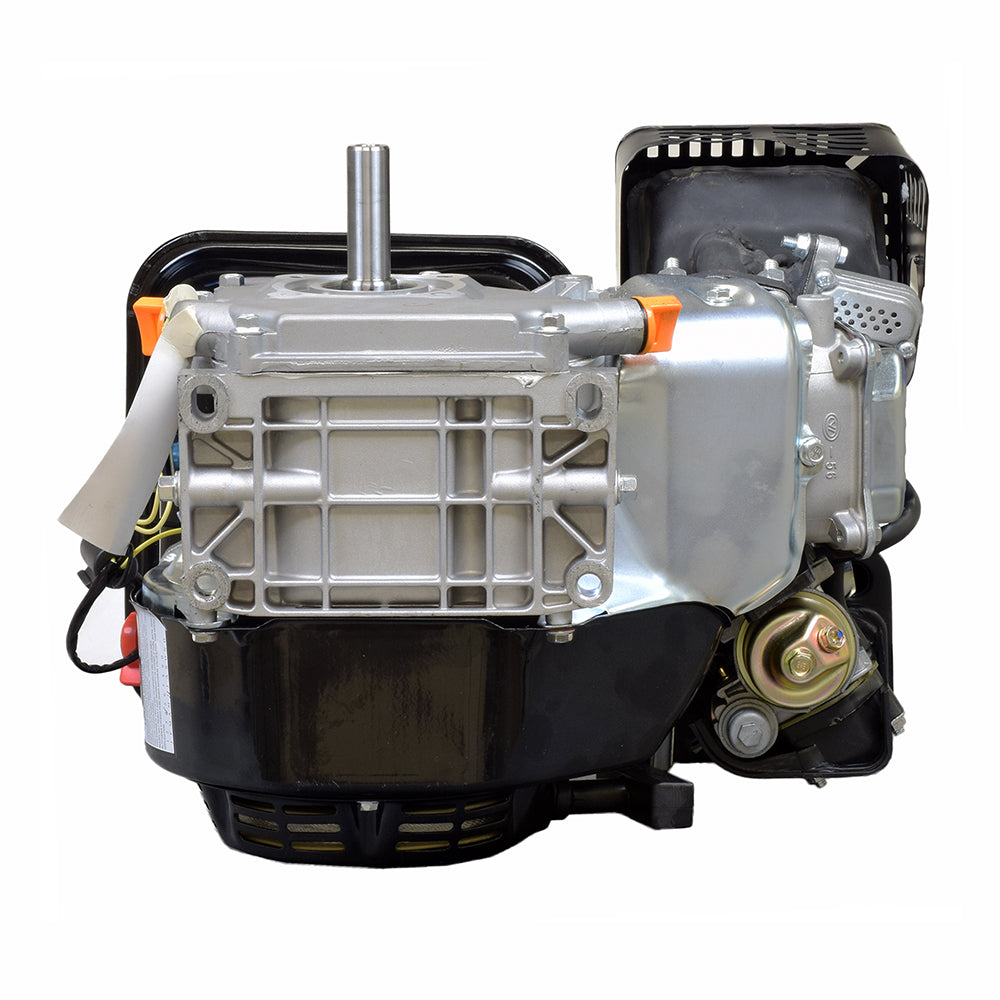

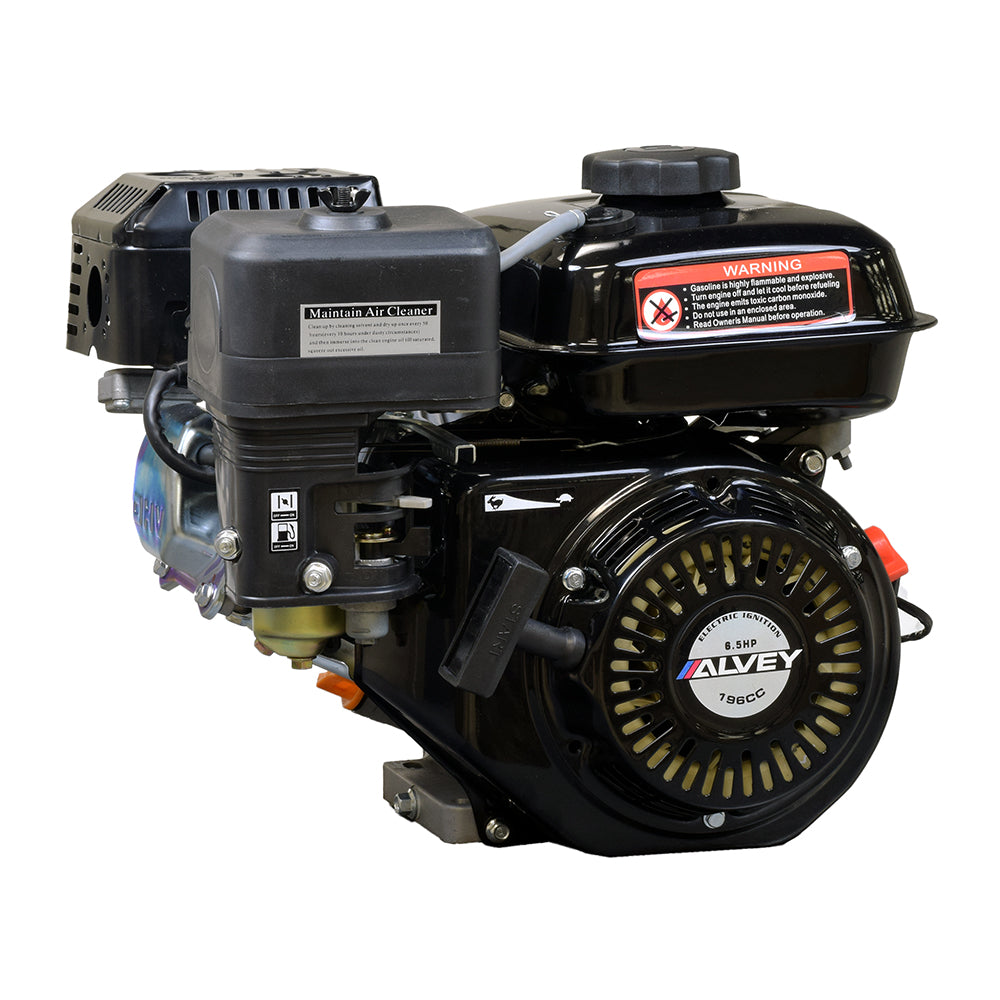

196cc 6.5 Hp Honda Clone (GX200 168F) Go-Kart & Mini Bike Engine (Blemished)

$201.99

Save 10% with coupon code: THANKS10

This item is not returnable. Return Policy

This item has a 15 day warranty. Warranty Policy

Free Shipping

  • US domestic ship to addresses only.
  • Does not include expedited shipping services.
Key Features
  • Minor dings, scrapes, & scratches
  • 196cc engine displacement with 6.5 HP power rating
  • Honda clone engine compatible with go-karts & mini bikes
  • Compatible with models from Baja Motorsports, Coleman, Motovox, & Yerf-Dog.

Description

One of our Scratch & Dent Sale 196cc 6.5 Hp Honda Clone (GX200 168F) go-kart & mini bike engines is a superb way to get a fully functional engine at substantial savings. We found a few of our engines had acquired a few minor scrapes, scratches, dents, and dings sometime in transit from the factory. These defects are not bad enough to send back, but not perfect enough to meet our usual high standards. You may find a dent in the fuel tank or a crack in the mount casting, or some other blemish that will not affect the functioning of the engine. If you can use a "factory second" engine like this you can save 25% off the already low price that we normally charge.

The 196cc 6.5 HP Honda clone go-kart engine is one of the most widely -- if not the widest -- used gasoline engine in the world today. Commonly known as the Honda-clone engine in reference to its initial brand, this design revolutionized the concept of small engines for both motor sports and portable utility equipment.

This go-kart engine is a direct replacement for the 196cc 6.5 Hp go-kart/mini bike engine used on the Baja Motorsports Baja Blaster (BB65), Baja Dune (DN65), Mini Bikes MB165 & MB200, & Baja Sand Dog (SD65) and a whole host of generators, pressure sprayers, water pumps, snow blowers, and a thousand other products. Also compatible with most go-karts equipped with 6.5 Hp engines, including models from Yerf Dog and Hammerhead. See Compatibility tab for details.

This EPA and certified mini bike and go-kart engine is a single cylinder air cooled engine ideal for lightweight applications, including custom projects. With Monster Scooter Parts' convenient inventory of spare and replacement parts, there is no longer any need for the home mini bike or go-kart builder to scrounge second-hand "junk engines" and go-kart parts as was all too often the case in years past.

This Honda GX200 168F clone go-kart engine includes the manual pull start, air filter, carburetor, fuel tank, muffler, and spark plug as shown. Please refer to the Specifications tab for more detailed information. Additionally, see our category pages for specific 196cc 6.5 Honda-clone engine parts.

PLEASE NOTE:
This 6.5 Hp Honda clone engine may be compatible with many applications using OEM engines that visually look like the detailed picture on the item page. Please ensure this engine will provide the form, fit, and function needed on your custom scooter, go-kart, or portable utility product prior to ordering.

⚠ WARNING California Residents: Proposition 65 Warning

Reviews (0)

Specifications

  • Replaces Baja Part Number: 165-043
  • Replaces Hensim Part Number: ABJMX 196MB1
  • Engine Type: Single cylinder air-cooled 4-stroke
  • Displacement: 196cc
  • Rated Power: 4.85KW/3600rpm (6.5 hp)
  • Max Torque: 9.76 ft-lbs/2500 rpm
  • Ignition System: Non-contact Transistorized Ignition (TCI)
  • Start Mode: Recoil pull start
  • Fuel Tank Capacity: 4.2 liters (1.11 gallons)
  • Fuel Type: 87 octane or higher
  • Engine Oil Capacity: 0.5 liters (0.53 quarts)
  • Engine Oil Type: SAE 15W50 API: SF
  • Bore: 68 mm
  • Stroke: 154.1 mm
  • Idle Speed: 1500 rpm +/- 150 rpm
  • Spark Plug: Meiya-F7RTC, Champion-CRN9YC, NGK-BPR6ES
  • Choke: Manual
  • Fuel Shutoff: Yes
  • PTO Shaft Rotation: Counter clockwise
  • Output Shaft Diameter: 3/4 inches
  • Output Shaft Length: 2-1/4 inches
  • Shaft Type: Keyed; Non-tapered
  • Dimensions (L X W X H (inches)): 15-1/4 x 12-1/4 x 13
  • Weight: 34 lbs
  • Shipping Weight: 38.25 lbs
  • Meets EPA 2010 off-road engine standards
  • Meets EPA EVAP standards
  • Compatibility
