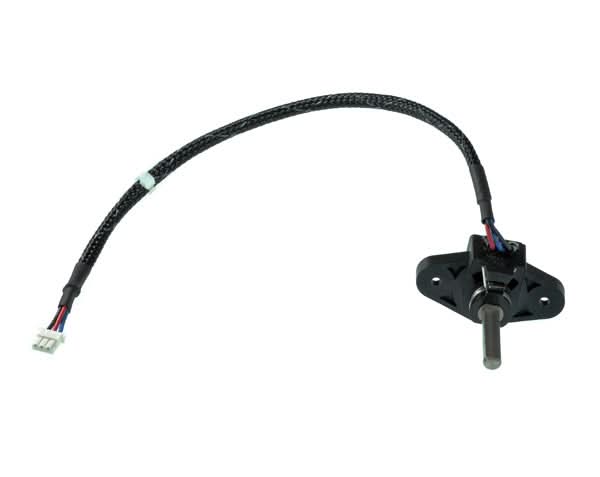

5K Ohm Throttle Potentiometer (Throttle Pot) Assembly with Rear Mounted Wiring Harness (ELEASMB1184)

Note: This potentiometer with wiring harness has been discontinued by the manufacturer and is no longer available. The Throttle Pot for the Pride Boxster, Rally, Shuttle, Victory 3, Victory 4, Victory 10, Victory XL, & Vista Scooters is still available but will require soldering your own wiring.

Throttle potentiometer assembly with three wire wiring harness for mobility scooters. This is a 5K potentiometer (also known as a throttle pot), that mounts on the handlebar or tiller assembly that controls the forward and reverse operation of the scooter.

This throttle potentiometer is designed specifically for Pride mobility scooters. However, 5K potentiometers are the most commonly used throttle pots and may also be compatible with many other brands of mobility scooters. If used on models other than Pride Mobility models please check the detailed specifications to ensure the proper fit of the mounting bracket and length of the shaft.

Compatible with the Pride Rally (SC150), Pride Shuttle (SC100/SC140), Pride Victory (SC160) versions 99040870 and prior, and Pride Victory (SC170) versions 49904393 and prior.

This assembly includes the throttle pot, wiring harness, mounting bracket, and integrated spring.

Pride Mobility: ELEASMB1184

⚠ WARNING California Residents: Proposition 65 Warning

Resistance: 5000 ohms
Rotation: 90 degrees left and right (forward & reverse)
Shaft Length: 1.125"
Shaft Diameter: 0.25"
Shaft Slot: Perpendicular to mounting bracket
Shaft Material: Stainless steel
Overall Width: 2.0"
Overall Height: 2.6"
Overall Depth: 1.35"
Mounting Hole Center to Center Distance: 1.575"
Mounting Hole Diameter: 0.135" Wire Length: 12.0"
