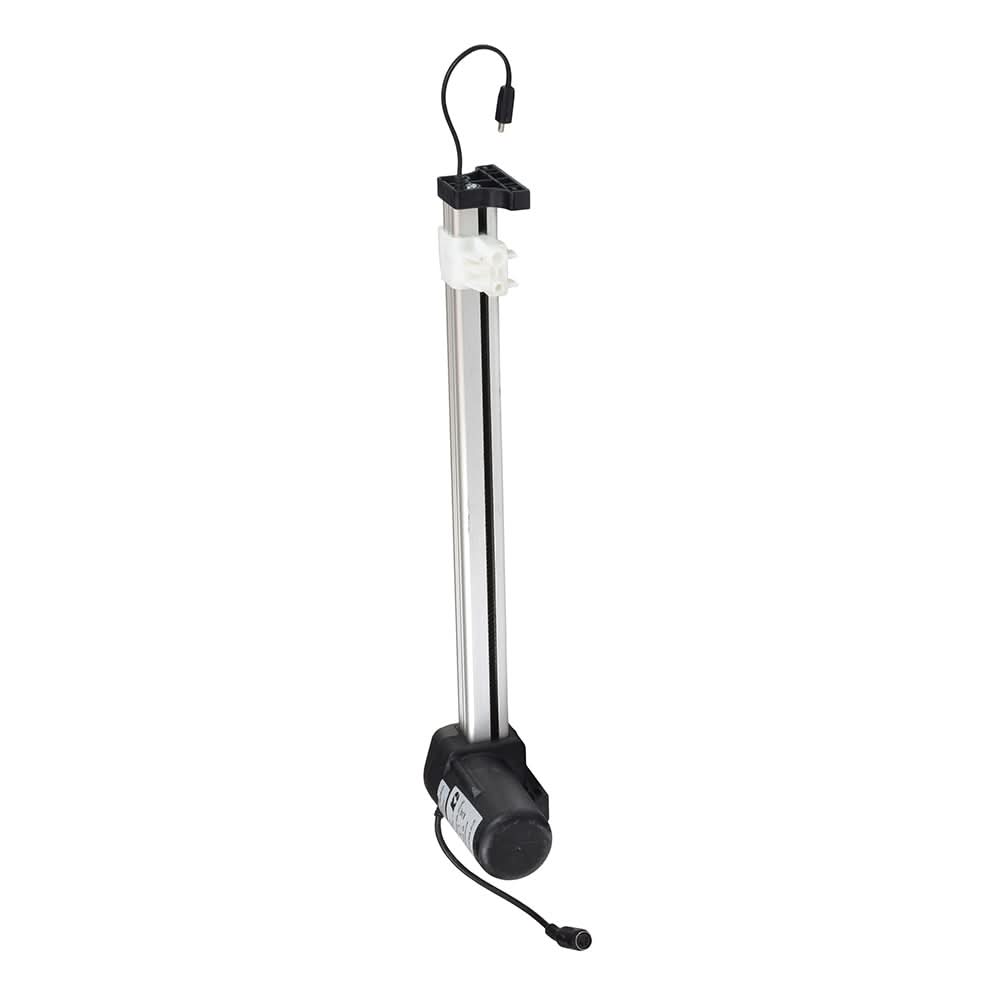

Lift chair users can save money with a KD motor for lift chairs (KDPT005). This replacement KD (or "Kaidi") motor (or actuator) for lift chairs and electric recliners will fit many different brands and models, including Ashley, Drive, HTL, Restwell, and others. Replacing your old actuator will get the power to the moving parts of a chair without breaking anyone's budget.
The 75 watt KDPT005 actuator uses the tried & true worm drive system to move a white moving block along the 17" worm gear. This foolproof system activates the recliner and footrest mechanism in your chair. The simplicity means that the cost can be kept to a minimum, and the drive units are relatively easy to replace.
The KDPT005 uses a 5-pin female connector and a 2-pin stereo-style plug (1-round, 1-flat)
KD (Kaidi): KDPT005
⚠ WARNING California Residents: Proposition 65 Warning
The 75 watt KDPT005 actuator uses the tried & true worm drive system to move a white moving block along the 17" worm gear. This foolproof system activates the recliner and footrest mechanism in your chair. The simplicity means that the cost can be kept to a minimum, and the drive units are relatively easy to replace.
The KDPT005 uses a 5-pin female connector and a 2-pin stereo-style plug (1-round, 1-flat)
KD (Kaidi): KDPT005
⚠ WARNING California Residents: Proposition 65 Warning
Reviews (0)
Reviews (0)
Specifications
Specifications
Manufacturer: KD (Kaidi Electrical)
Rated voltage: DC 29V
Max. Duty Cycle: 2 min. ON and 18 mon OFF (10%)
