HB2430-TYD6 6-Wire Controller & Throttle Bundle for the Razor E200, Versions 5-12

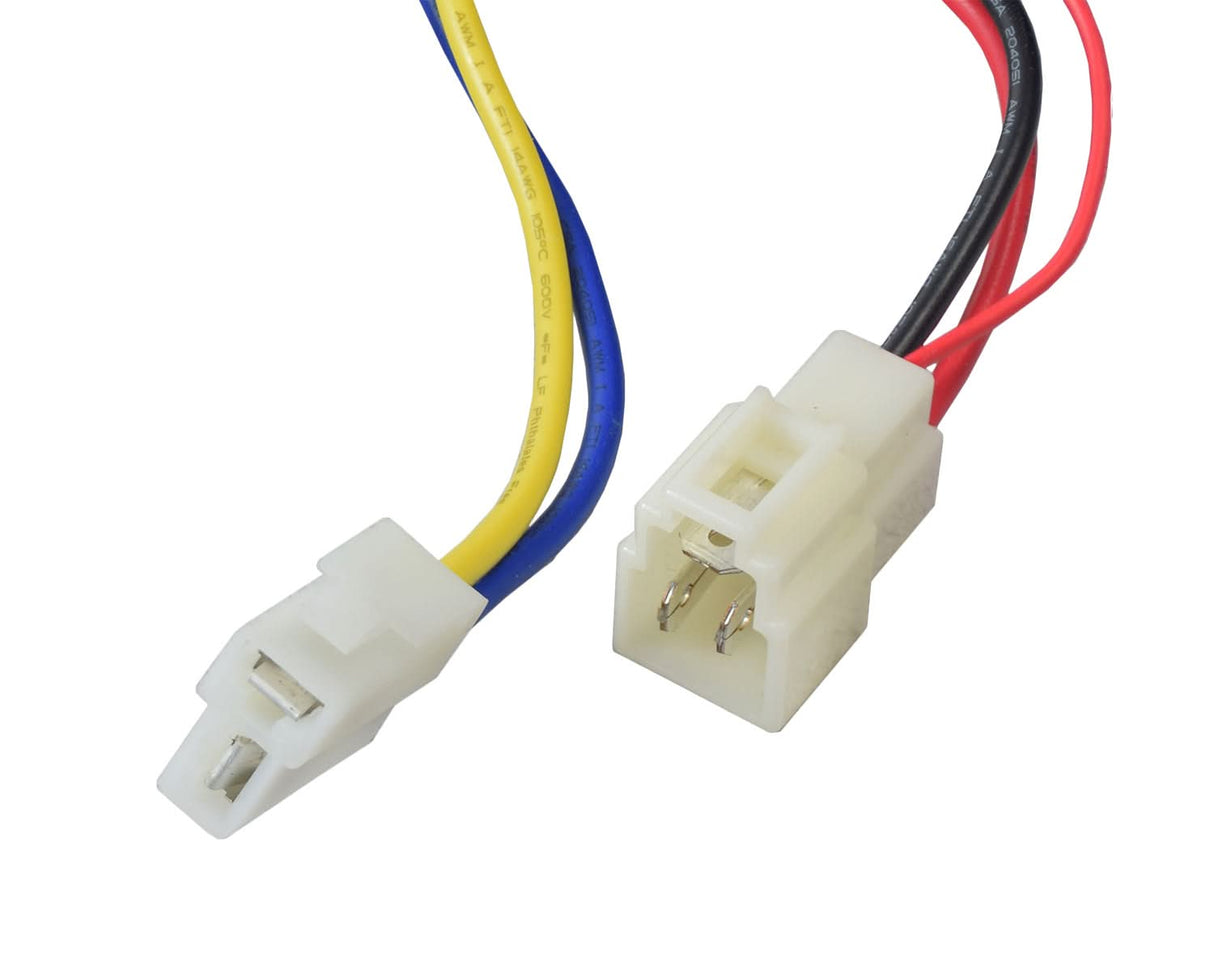

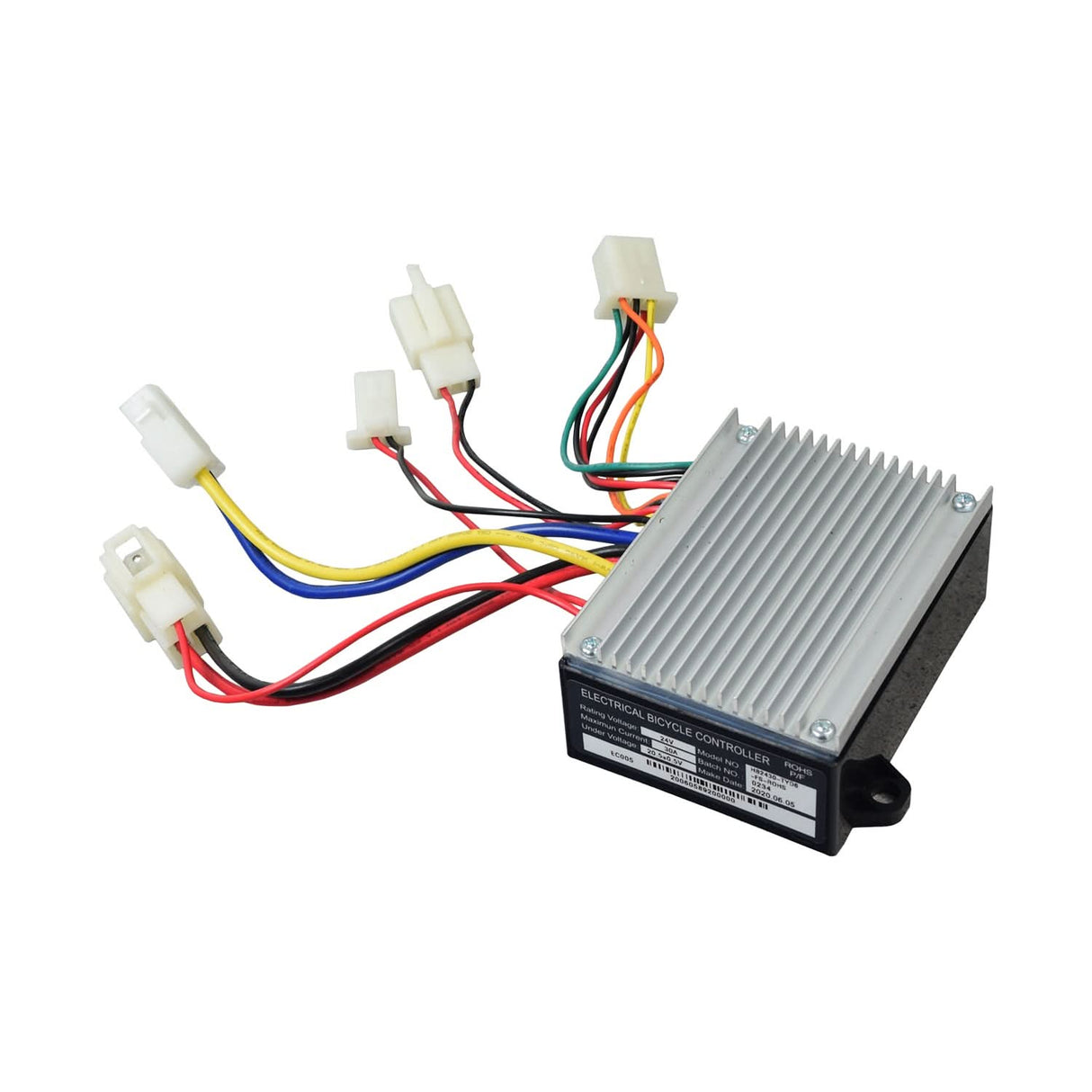

This control module and throttle bundle can be used to replace the controller in versions 5-12 of the Razor E200 electric scooter.

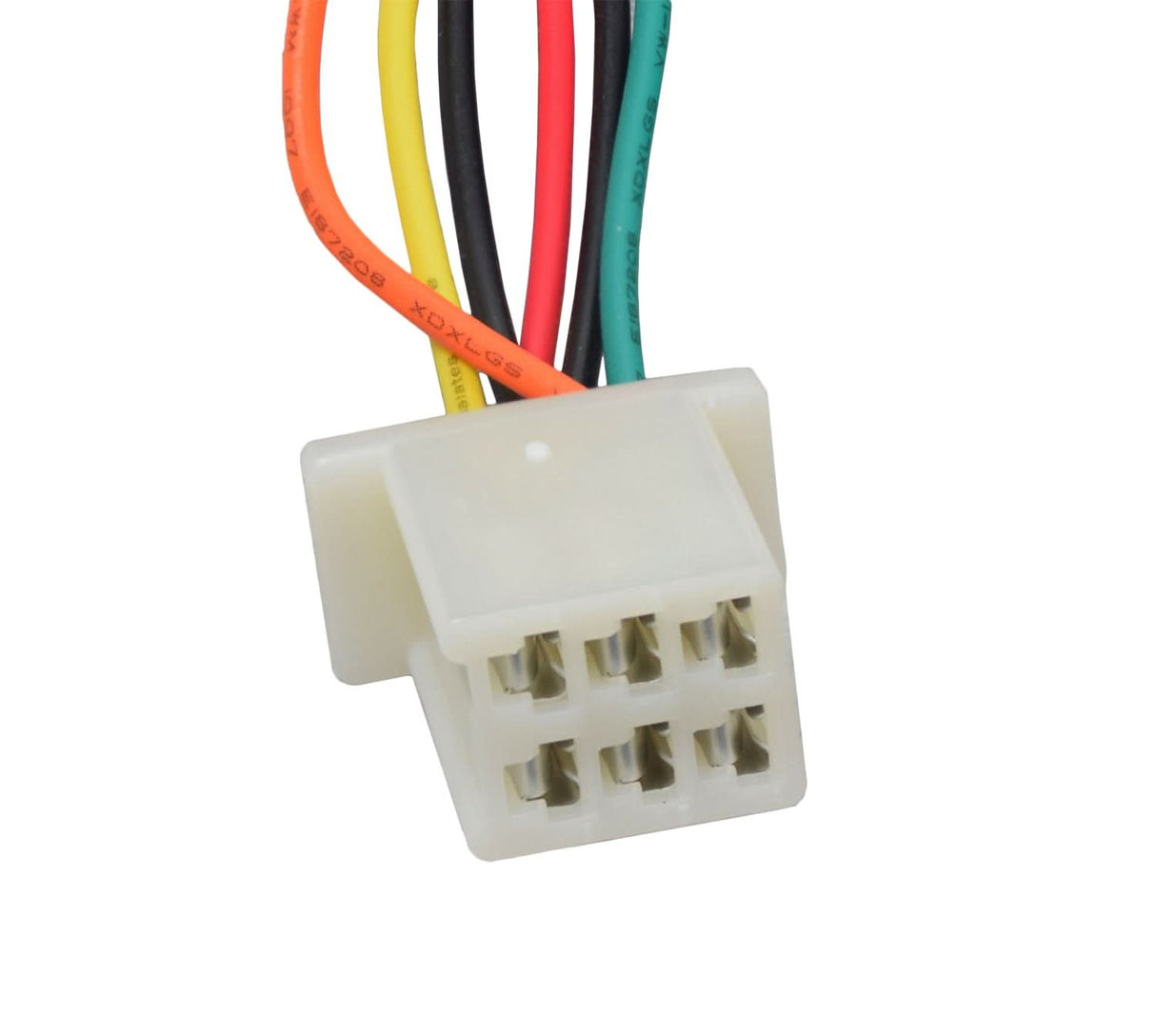

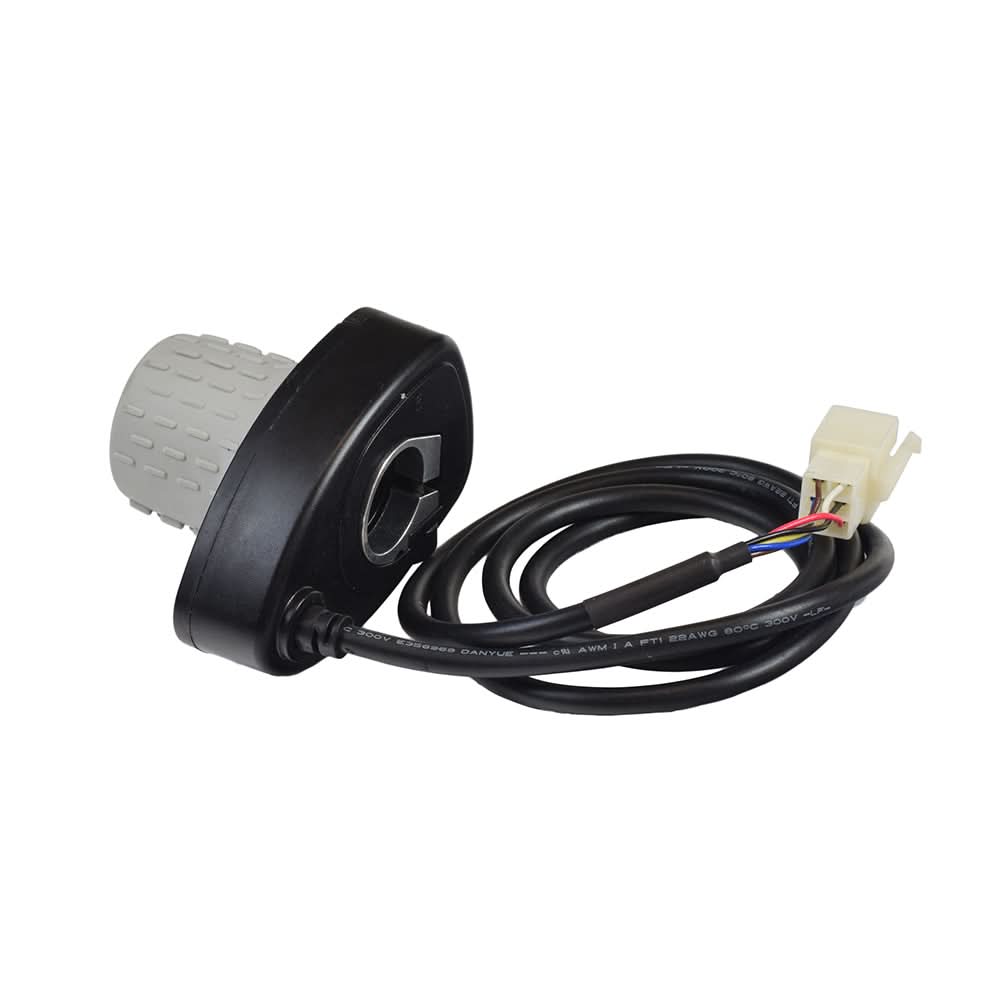

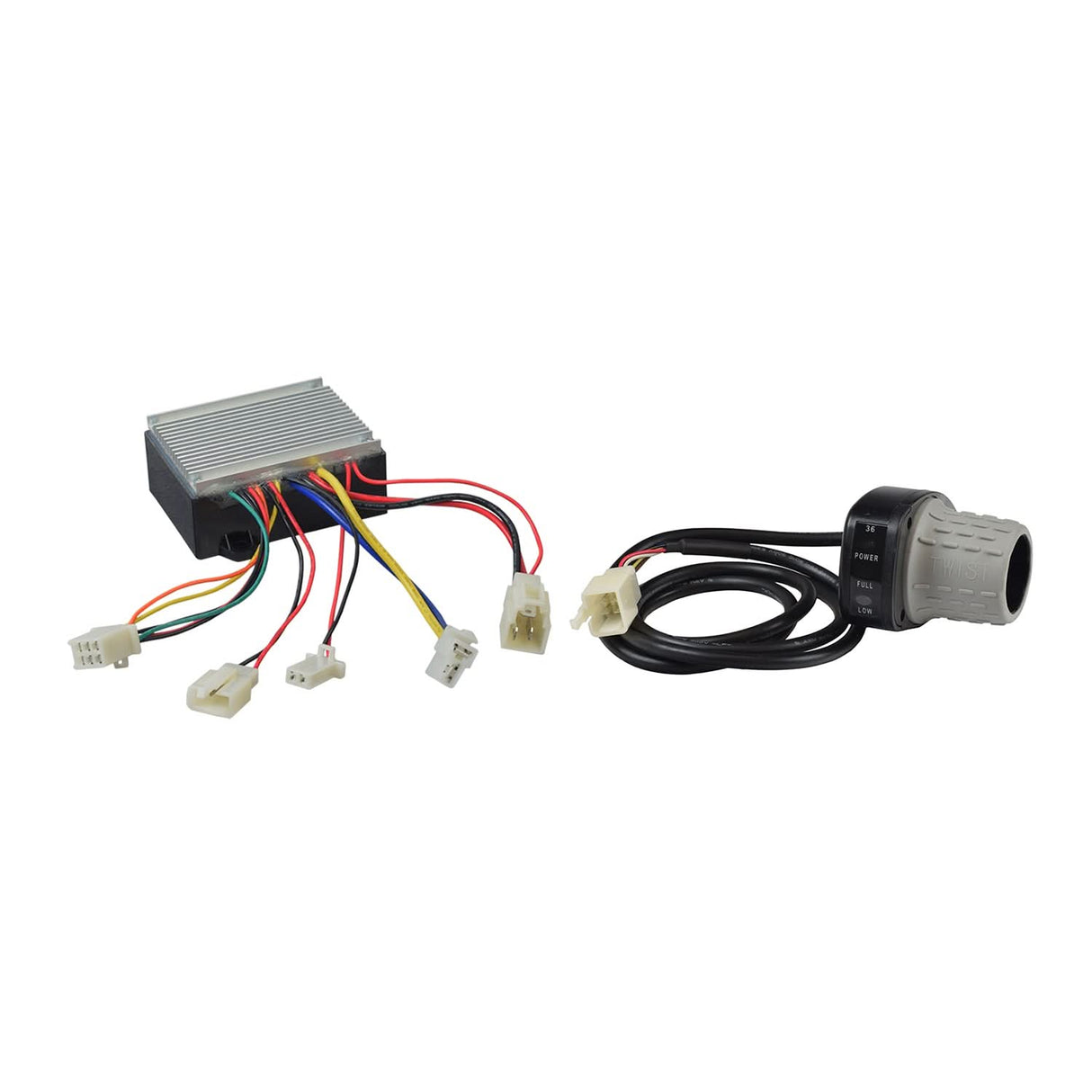

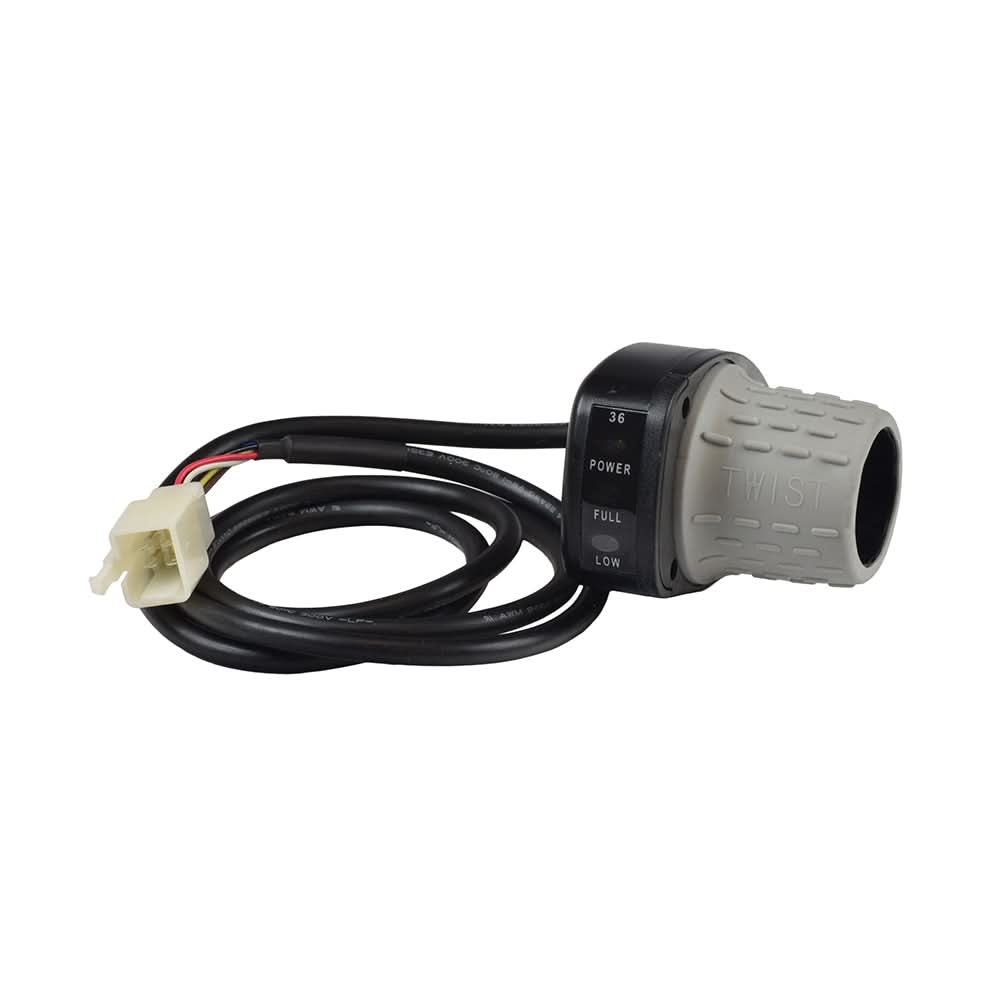

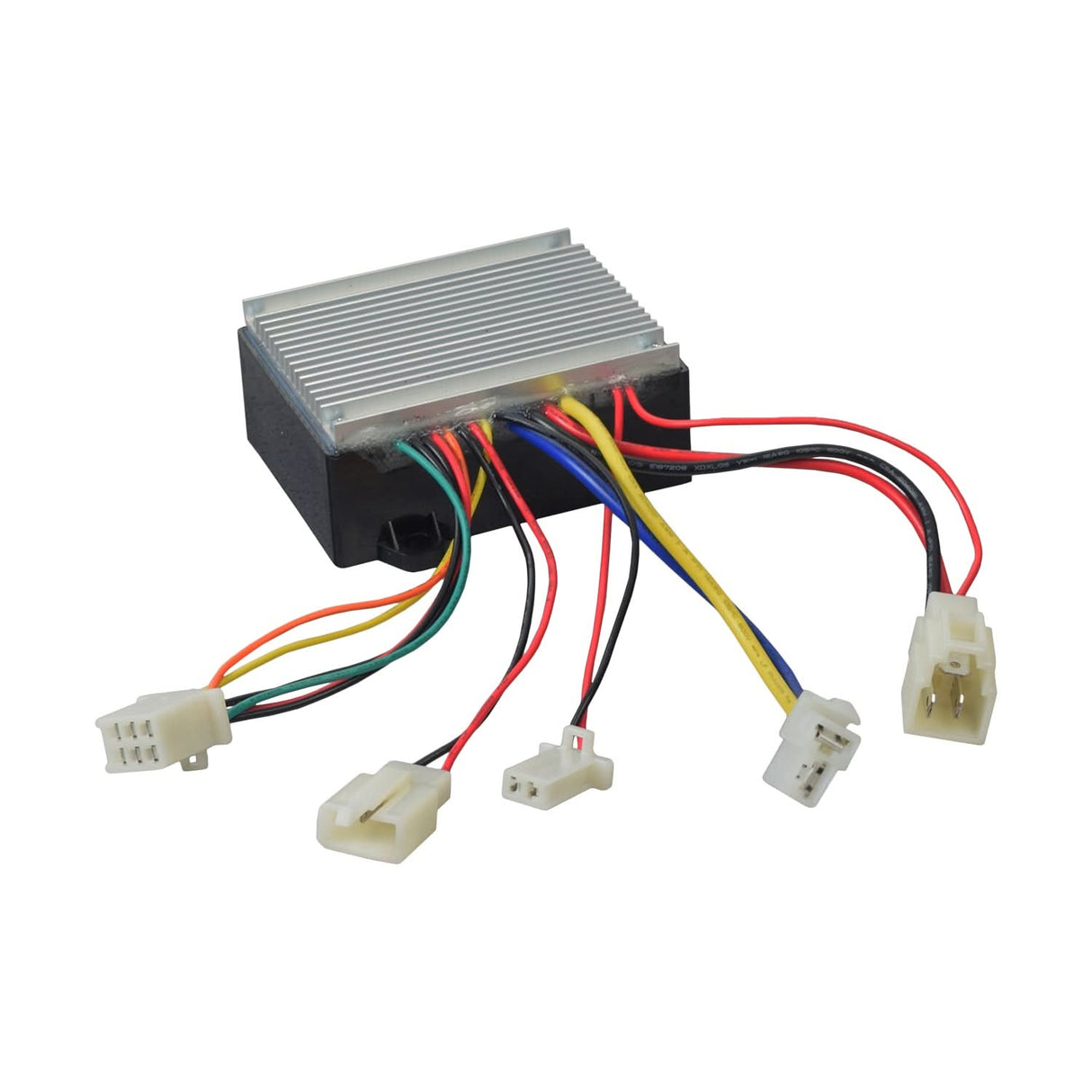

Included in this bundle is an upgraded HB2430-TYD6-FS controller and 6-wire variable speed twist grip throttle that are used on newer versions of many Razor products. This replaces the following control modules that were used in versions 5-12 of the Razor E200 that are now unfortunately discontinued and no longer available:

CT-201C6

CT-601C6-3

HB2430-TYC4

HB2430-TYD

HB2430-TYD4

HB2430-TYD4

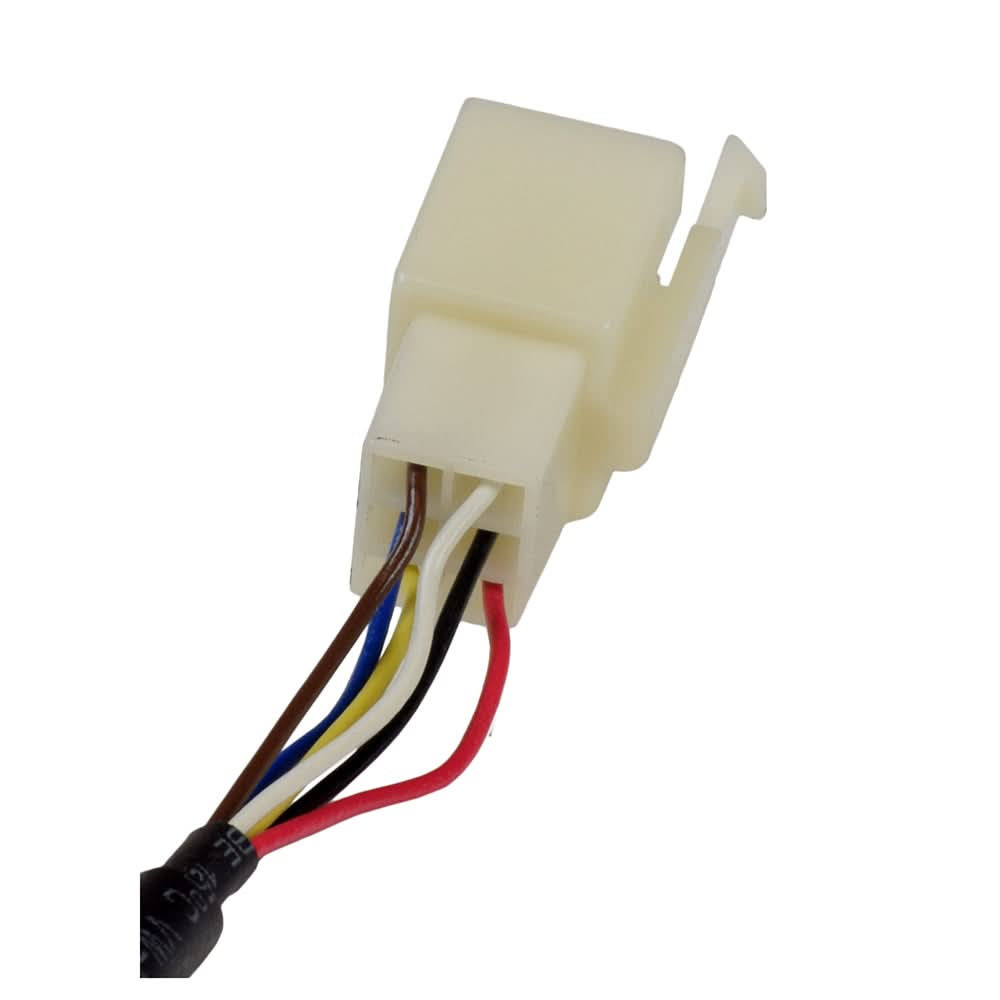

Versions 5-12 of the Razor E200 originally used either a 4-wire or 5-wire throttle. Because the control module included with this bundle requires a 6-wire throttle, the throttle and controller must be replaced together.

Wiring Diagrams:

Razor E200 Wiring Diagram (Versions 1-7)

Razor E200 Wiring Diagram (Versions 8-9)

Razor E200 Wiring Diagram (Versions 10-12)

Note: Model versions can be determined based on the product ID code on your Razor product. The product ID code can be found on the battery cover and/or on the bottom of the frame. The 7th and 8th numbers in your product ID code are the version number of your Razor product (e.g. "01" = Version 1, "02" = Version 2, etc.).



Razor: W25143069015, W25143069043

⚠ WARNING California Residents: Proposition 65 Warning

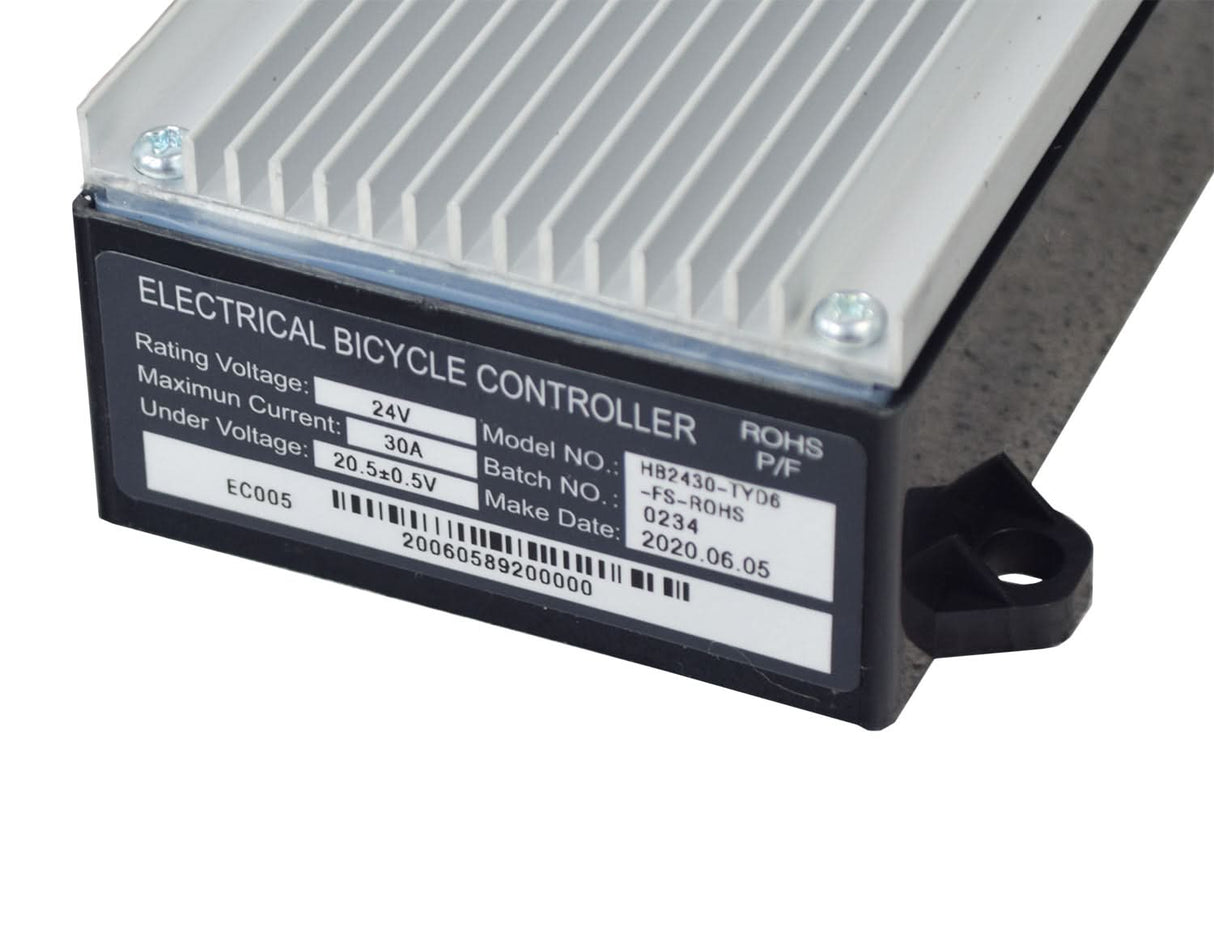

Model Number: HB2430-TYC4-ROHS, HB2430-TYD4-ROHS CT-201C6, HB2430-TYD4-FS-ROHS, or CT-601C6-3
Voltage: 24V
Maximum Current: 29A
Deficiency Voltage Protect: 20.5V
