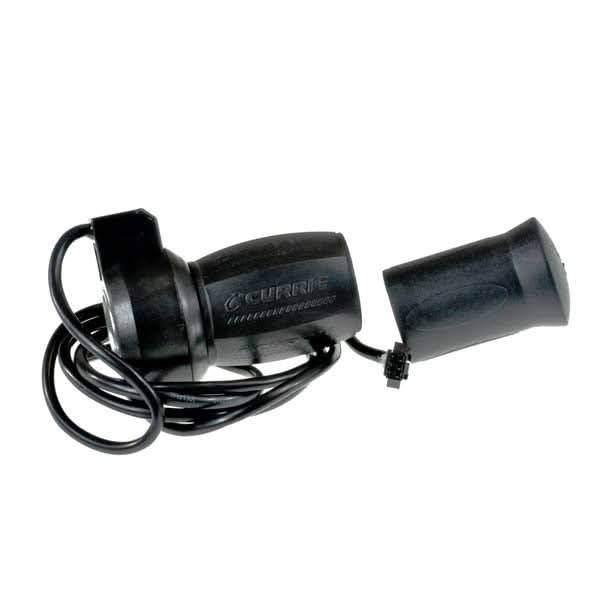

Currie Twist Grip Throttle - 3 Pin Non-Diagnostic (Schwinn, GT, IZIP, & Mongoose Scooters)

Schwinn, GT, IZIP, & Mongoose electric scooter twist grip throttle from Currie Technologies.

Compatible with all Currie scooters and choppers factory equipped with the non-diagnostic throttle controller. Not compatible with 6-pin or 5-pin diagnostic twist grip throttles from Currie Technologies.

Please note that this throttle does not come with the original 3-pin connector. You will need to splice these wires to your scooter's three throttle wires, see wiring instructions below.

Note: "3-Pin" refers to the number of pins in the connector end that inserts into the controller.

Throttle Wire Color to Controller Wire Color (Description)

Red to Red (4.5 - 6.0 Volts Power)

Black to Black (Ground)

Green or Blue to Green or Blue (Speed Signal)

Yellow to Yellow (Optional Battery Level Indicator)
