CT-201C6-3 / HB2430TYD-FS Control Module with 5-Wire Throttle Connector for Razor E300, Versions 8-10 and 12

Razor CT-201C6-3 (silver case) or HB2430TYD-FS (black case) control module for Razor E300 electric scooters, versions 8 through 10 and version 12 only.

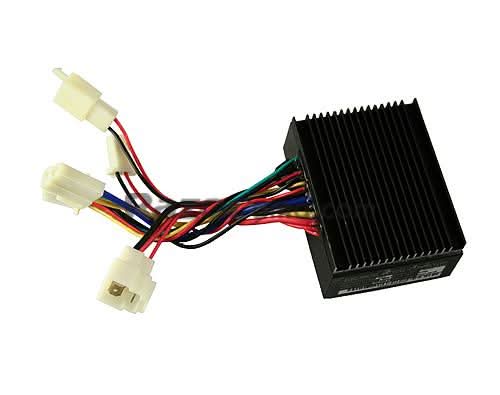

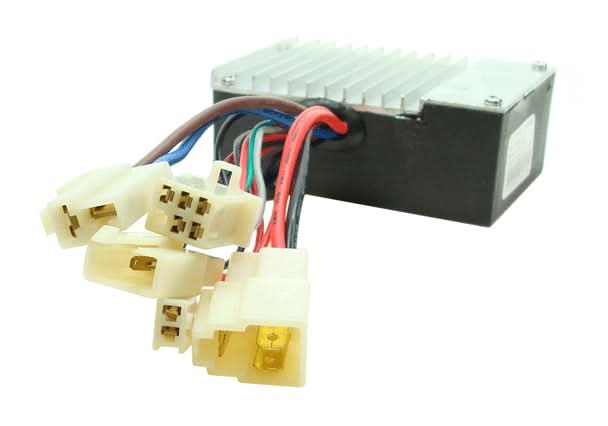

This controller may come with model number CT-201C6-3 or HB2430TYD-FS. Model numbers vary based on the factory that produced the controller, and are interchangeable. Depending on the controller model number, the case may be silver or black. Controller has five sets of wires with harnesses (14 wires total).

The wiring diagrams for this part can be found at the following links:

Razor E300 Wiring Diagram (Versions 8-9)

Razor E300 Wiring Diagram (Versions 10 & 12)

Note: Model versions can be determined based on the product ID code on your Razor product. The product ID code can be found on the battery cover and/or on the bottom of the frame. The 7th and 8th numbers in your product ID code are the version number of your Razor product (e.g. "01" = Version 1, "02" = Version 2, etc.).

Razor: W13112000160

⚠ WARNING California Residents: Proposition 65 Warning

Voltage: 24V
Maximum Current: 29-30A
Deficiency Voltage Protect: 20.5V +/- 0.5V
