ELEASMB7219 Control Box for Pride LC-525 and LL-770 series & Mega Motion LC-100 Lift Chairs
ELEASMB7219 Control Box for Pride LC-525 and LL-770 series & Mega Motion LC-100 Lift Chairs is backordered and will ship as soon as it is back in stock.
Free Shipping
Free Shipping
- US domestic ship to addresses only.
- Does not include expedited shipping services.
ELEASMB7219 Control Box for Pride LC-525 and LL-770 series & Me...
Key Features
- Direct replacement for Pride ELEASMB7219 heat & massage control box
- Fits Pride LC-525 series, LL-770 series & Mega Motion LC-100 lift chairs with heat & massage
- Serial number specific: for chairs with serial LB410312004F30 and later
- Controls back & base lift motors, back & base heat, and 4 massage zones
- 25-pin hand control port works with the ELEASMB7220 hand control
- Plug-in swap for a failed control box, no rewiring required
Description
Description
ELEASMB7219 Heat & Massage Control Box — Pride LC-525, LL-770 & Mega Motion LC-100 Lift Chairs
Replace a dead or failing control box on a Pride or Mega Motion lift chair with heat and massage. This is the OEM deluxe heat/massage control box for infinite position (dual motor) chairs in the Pride LC-525 series, LL-770 series, and Mega Motion LC-100. It powers both lift motors, the heat pads, and the four massage zones, all run from the hand control.

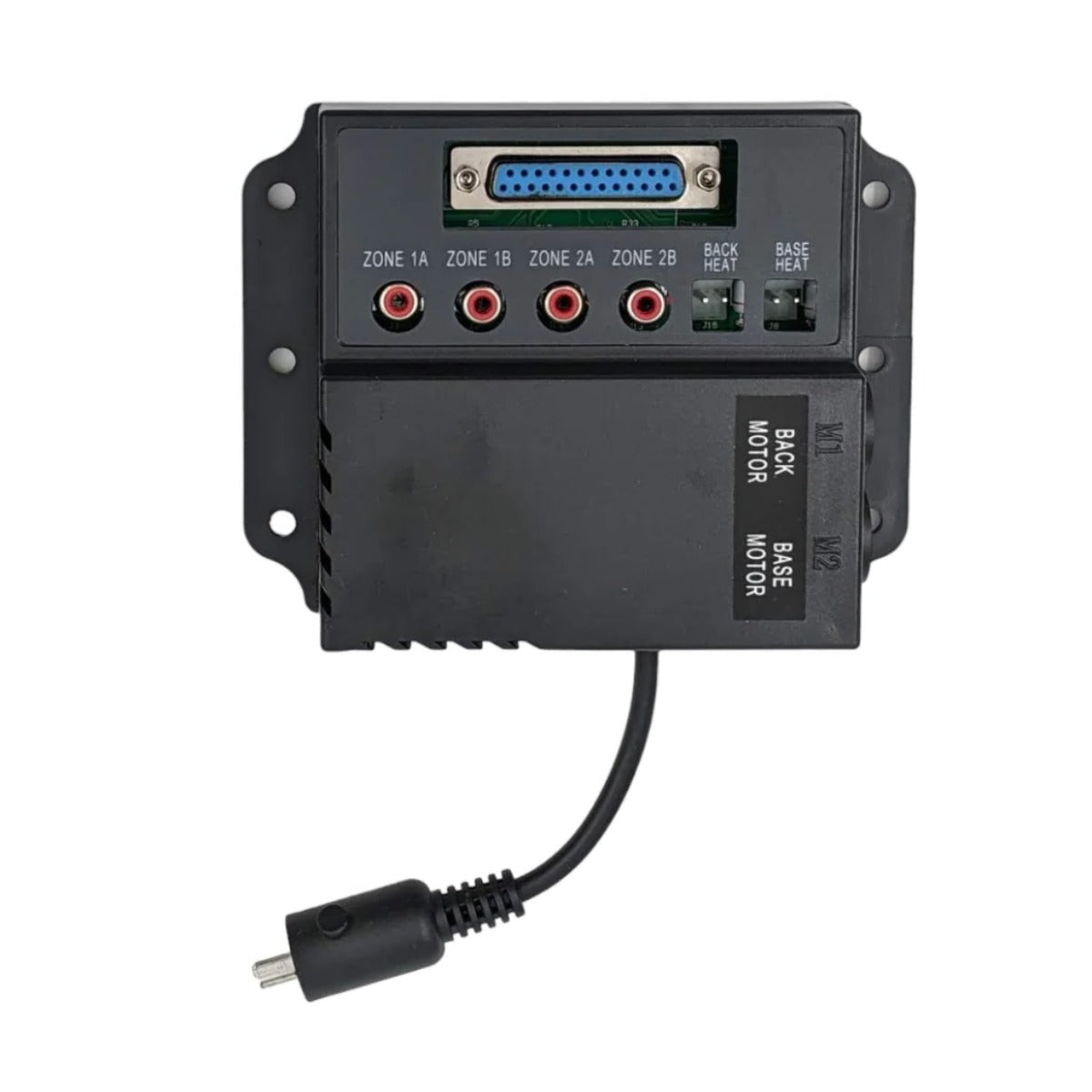

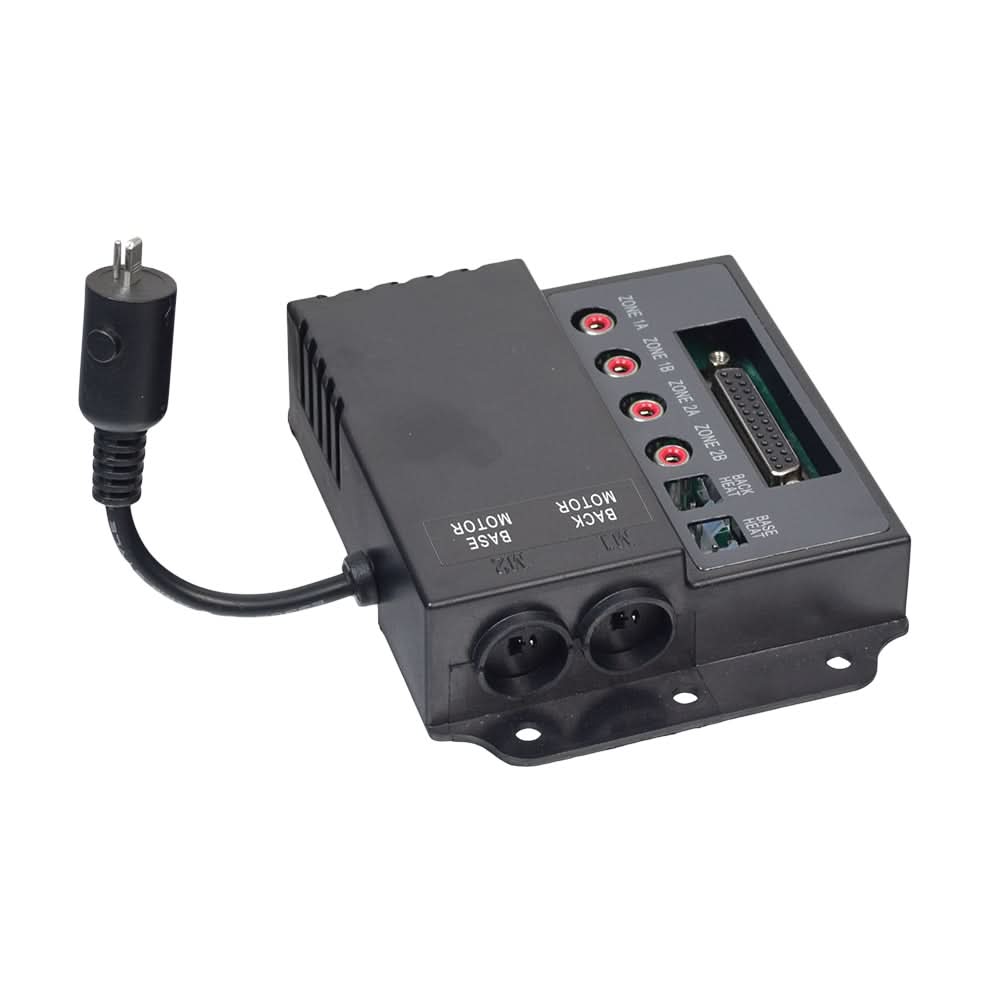

The box has labeled ports for the back motor (M1), base motor (M2), back heat, base heat, and massage zones 1A, 1B, 2A, and 2B, plus a 25-pin port for the hand control. Plug your chair's existing connections into the matching ports to restore lift, recline, heat, and massage without replacing the whole chair.
Note: This part is serial number specific. It fits chairs manufactured with serial number LB410312004F30 and later. The hand control is not included; if you need both, see the ELEASMB7331 Hand Control & Control Box combo pack, or the ELEASMB7220 hand control on its own.
Pride Mobility Part Number: ELEASMB7219
