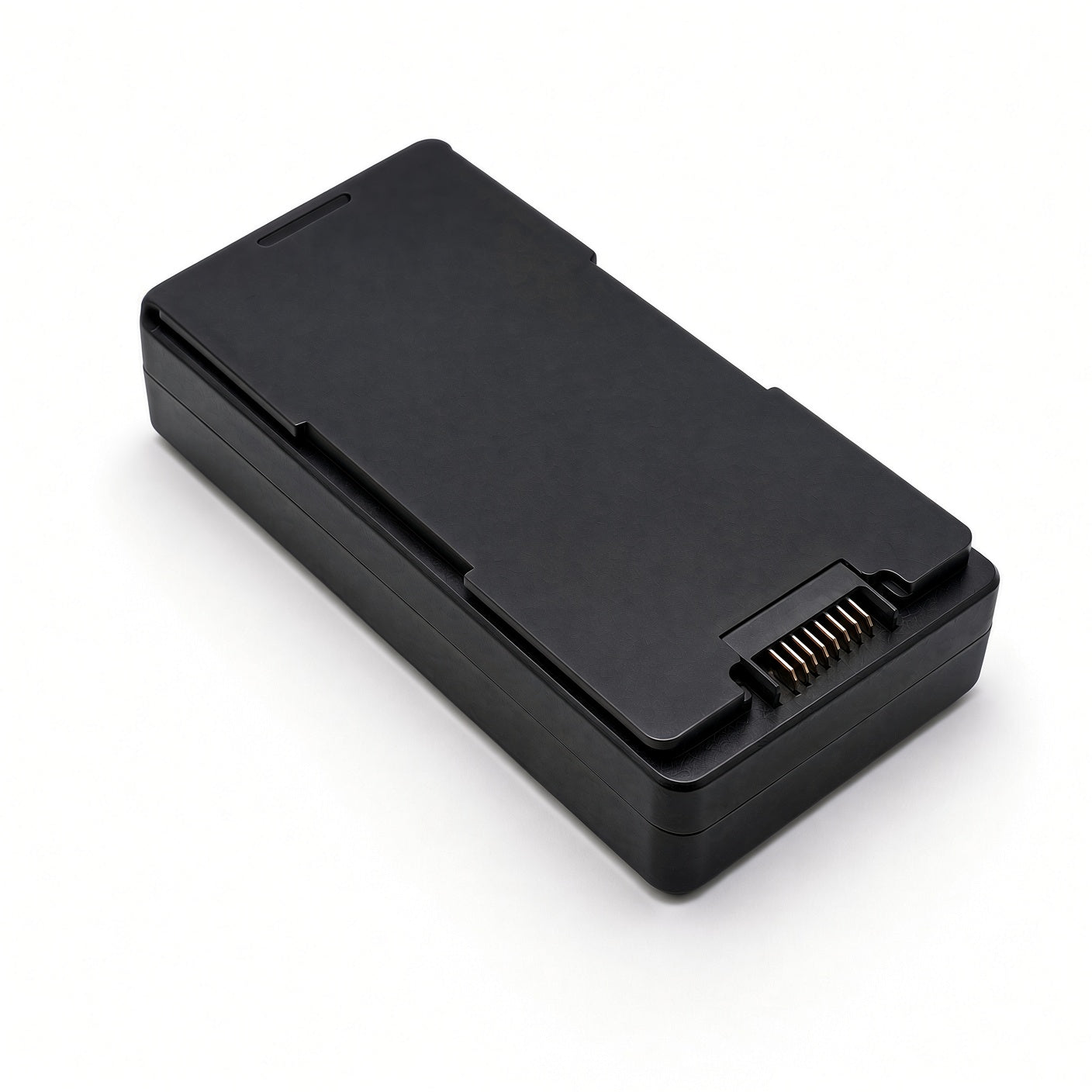

BAT1707202 - Lithium Backup Battery Pack (ZB-B1500-3S) for Pride VivaLift!, Mega Motion & Sitting Pretty Lift Chairs

This genuine Pride BAT1707202 lithium battery pack (ZB-B1500-3S) provides backup power for Pride, Mega Motion, and Sitting Pretty lift chairs. It attaches to the chair's transformer and keeps you from getting stuck in your lift chair if the power goes out. Replace it if your backup battery no longer holds a charge or is missing.

The battery slides onto the Pride transformer (ZB-A290020-U), which is sold on its own as CTL1707200 or with a battery included as ELE1707199. It fits most Pride VivaLift! lift chairs, including the Atlas, Atlas Plus, Elegance, Escape, Legacy, Metro, Perfecta, Radiance, Sierra, Tranquil, Urbana, and Urbana 2; the Mega Motion iNFI Attain (MM-3603), Lay-Flat Chaise Lounger (MM-3702), Trio Grande (MM-5300), Trio Elevato (MM-5401), iNFI Elevato (MM-5640), and iNFI Immerse (MM-8945 and MM-8955); and the Sitting Pretty Evolution Collection (LC-435). This listing is for the battery only; the transformer and AC power cord are not included.

The ZB-B1500-3S is a 10.8V, 1500mAh (16.2Wh) lithium pack. It charges from the transformer at 24V-35VDC (0.5A) and puts out 21V at 2A to run the lift motor. It's built for short bursts of use, with a maximum 10% duty cycle and up to 2 minutes of continuous run time at 3.5A, which is enough to get you safely in or out of the chair until power returns.

Some iNFI Immerse (MM-8955) chairs use the larger BAT2104332 battery instead, so match the part number on your old battery before ordering.

Pride Mobility Part Number: BAT1707202

⚠ WARNING California Residents: Proposition 65 Warning

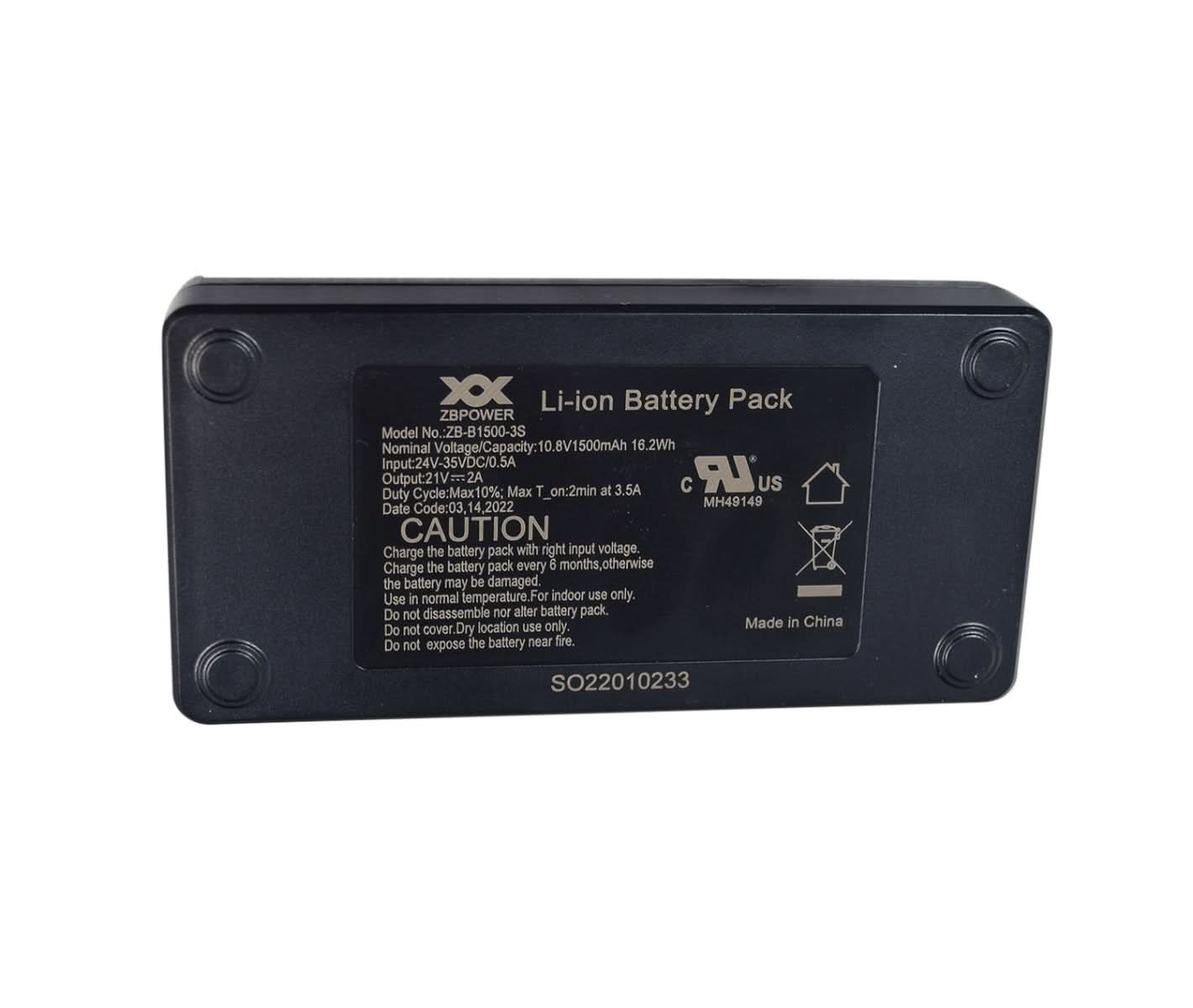

• Manufacturer: ZB Power
• Model: ZB-B1500-3S
• Nominal Voltage/Capacity: 10.8V 1500mAh 16.2Wh
• Input: 24V-35VDC / 0.5A
• Output: 21V 2A
• Duty Cycle: Max 10%; Max T_on: 2 min at 3.5A
