MOT1707191 Back Motor for Pride VivaLift Lift Chairs with Blue 5-Pin Connector
MOT1707191 Back Motor for Pride VivaLift Lift Chairs with Blue 5-Pin Connector is backordered and will ship as soon as it is back in stock.
Free Shipping
Free Shipping
- US domestic ship to addresses only.
- Does not include expedited shipping services.
MOT1707191 Back Motor for Pride VivaLift Lift Chairs with Blue 5-Pi...
Key Features
- Match MOT1707191 or LMD6208B1-3 on the motor you are replacing.
- Replaces LMD6208B-S-U-3
Description
Description
What this motor does

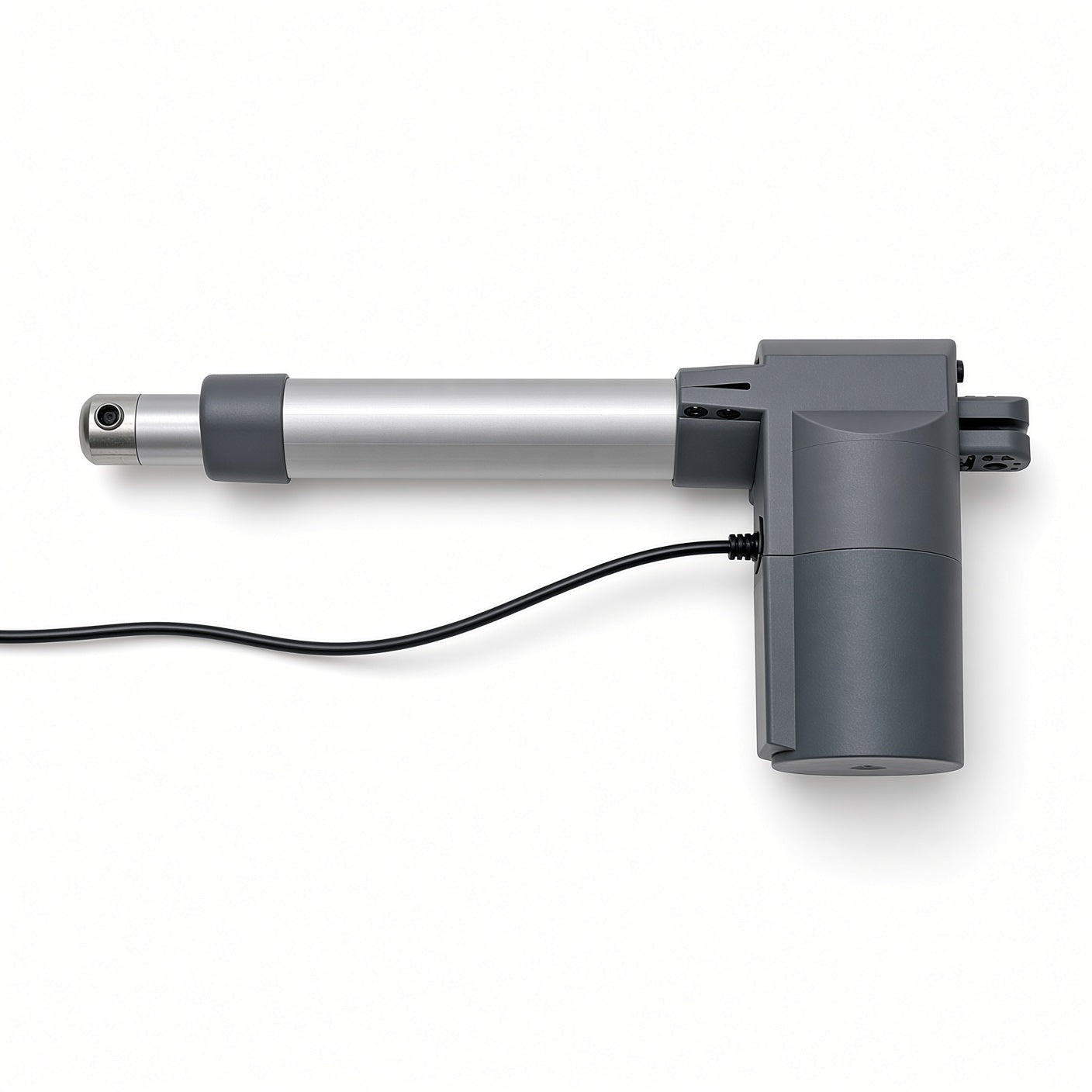

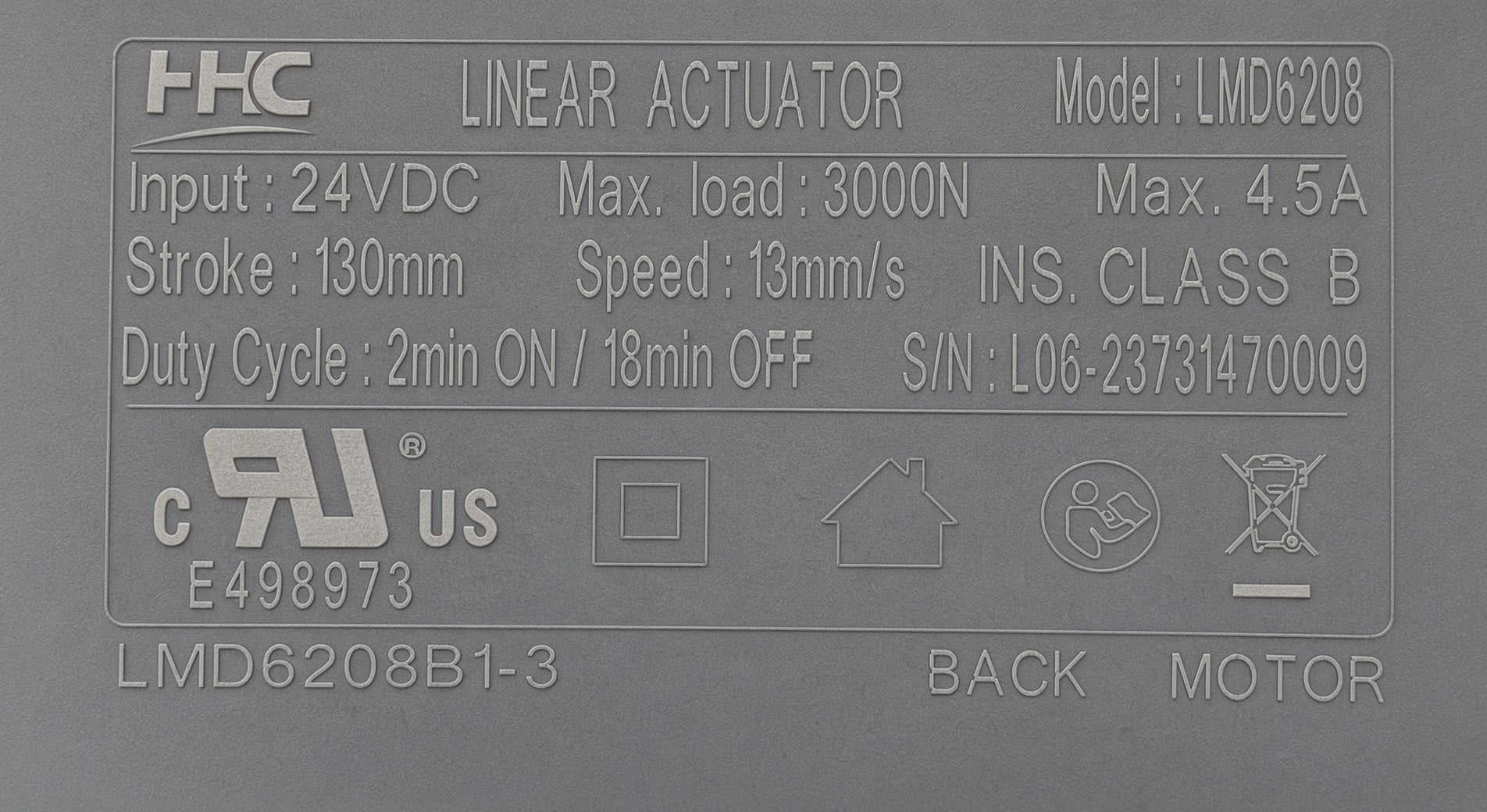

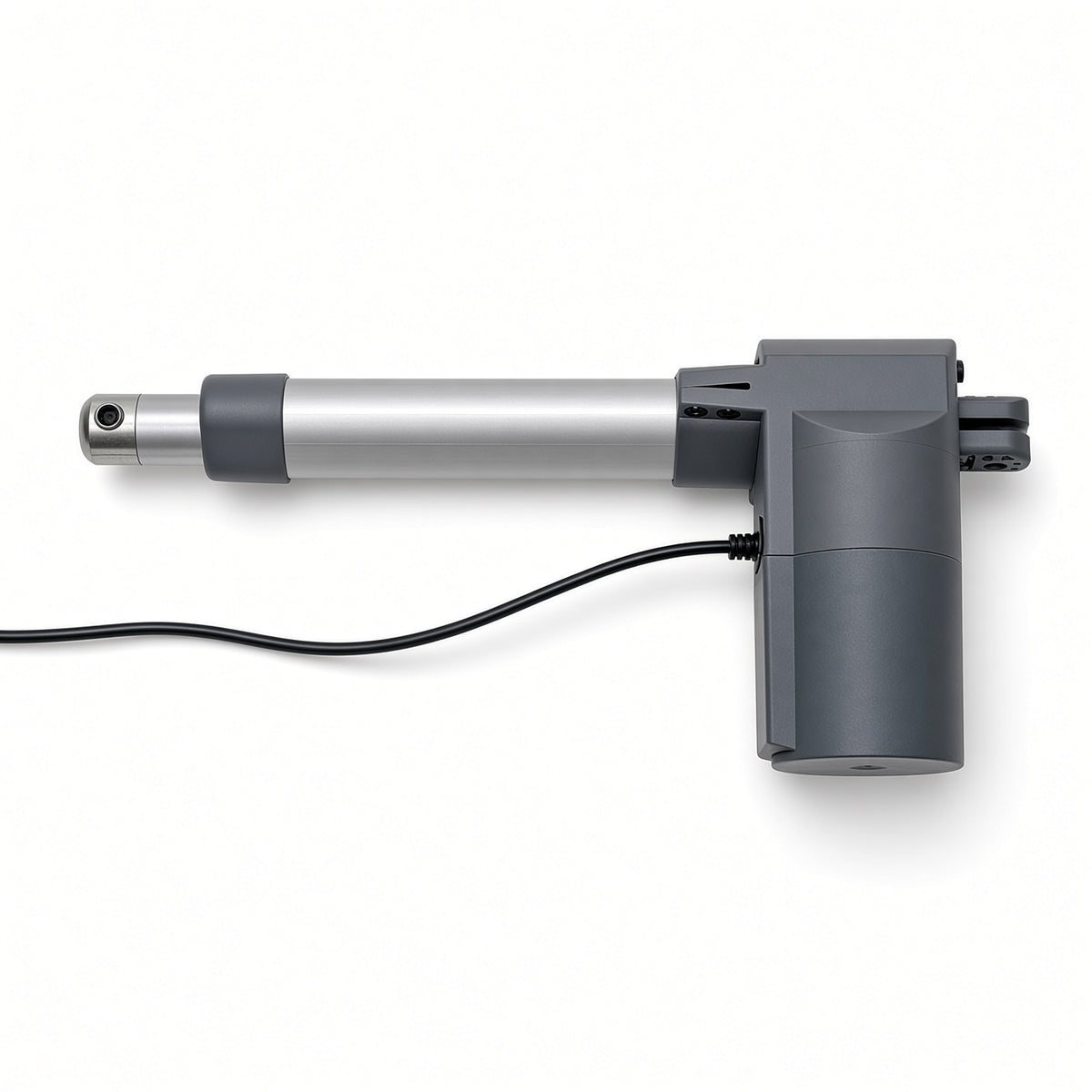

This is the back / recline actuator on Pride VivaLift power lift chairs. It moves the back, not the lift frame. The stamped plate reads BACK MOTOR.
Connector

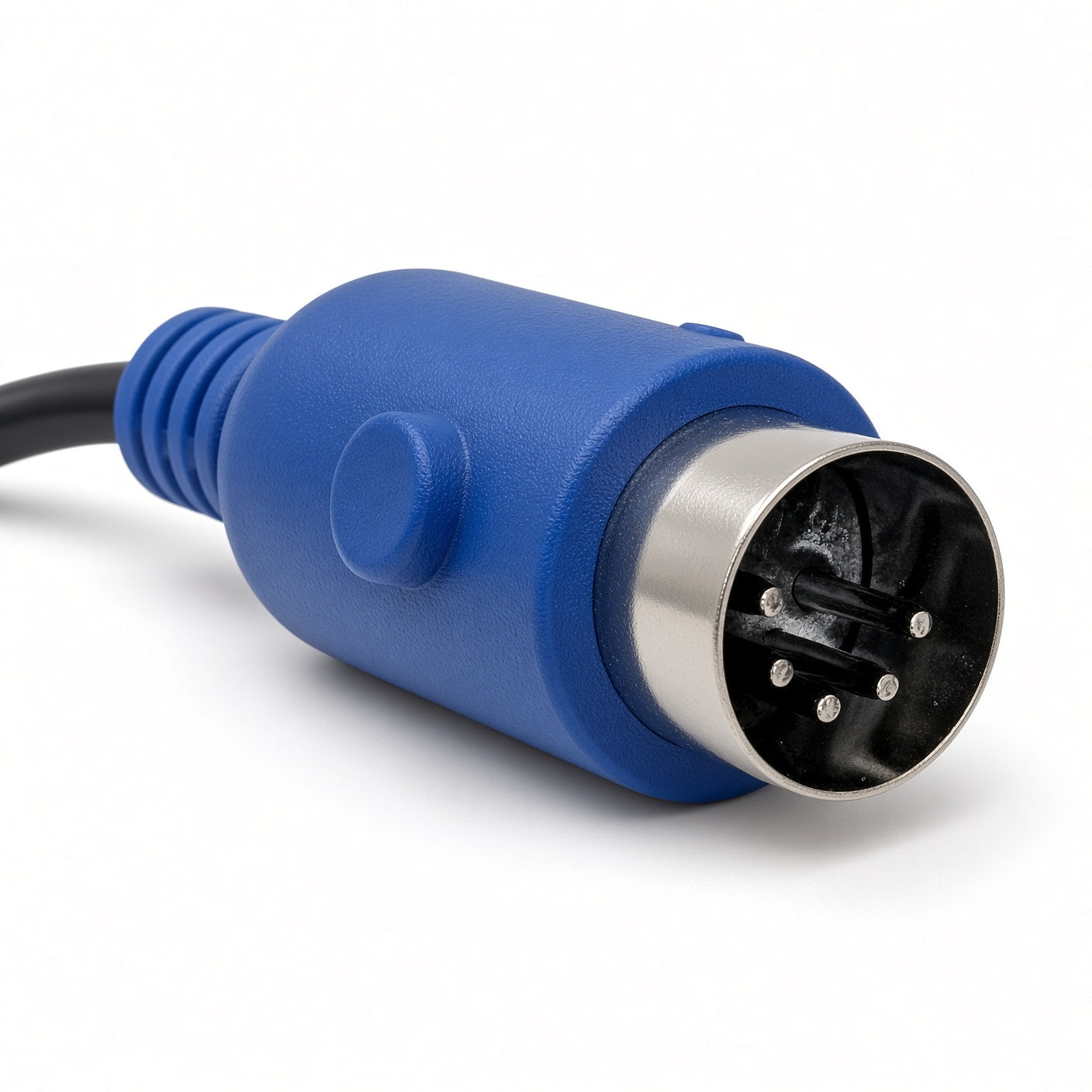

Blue 5-pin plug. It connects to the VivaLift motor control box. If the chair has no lift or recline, test the CTL1707193 motor control box before you replace both parts.
Before you order
Read the tag on the motor you are pulling. You want MOT1707191 or LMD6208B1-3. Unplug the chair from the wall before you remove clevis pins. These actuators are 10% duty cycle (2 min on / 18 min off), not continuous-duty.
Pride Mobility Part Number: MOT1707191
⚠ WARNING California Residents: Proposition 65 Warning
Reviews (0)
Reviews (0)
Specifications
Specifications
Brand: FBS / HHC / Moto
Pride part number: MOT1707191
Manufacturer model: LMD6208 / LMD6208B1-3
Function: Back motor
Input: 24 V DC, 4.5 A max
Stroke: 130 mm (5.1 in)
Speed: 13 mm/s
Max load: 3000 N
Duty cycle: 2 min on / 18 min off
Insulation: Class B
Connector: Blue 5-pin
Certification: cRUus E498973
Control box: CTL1707193
MSP SKU: P49-7009
