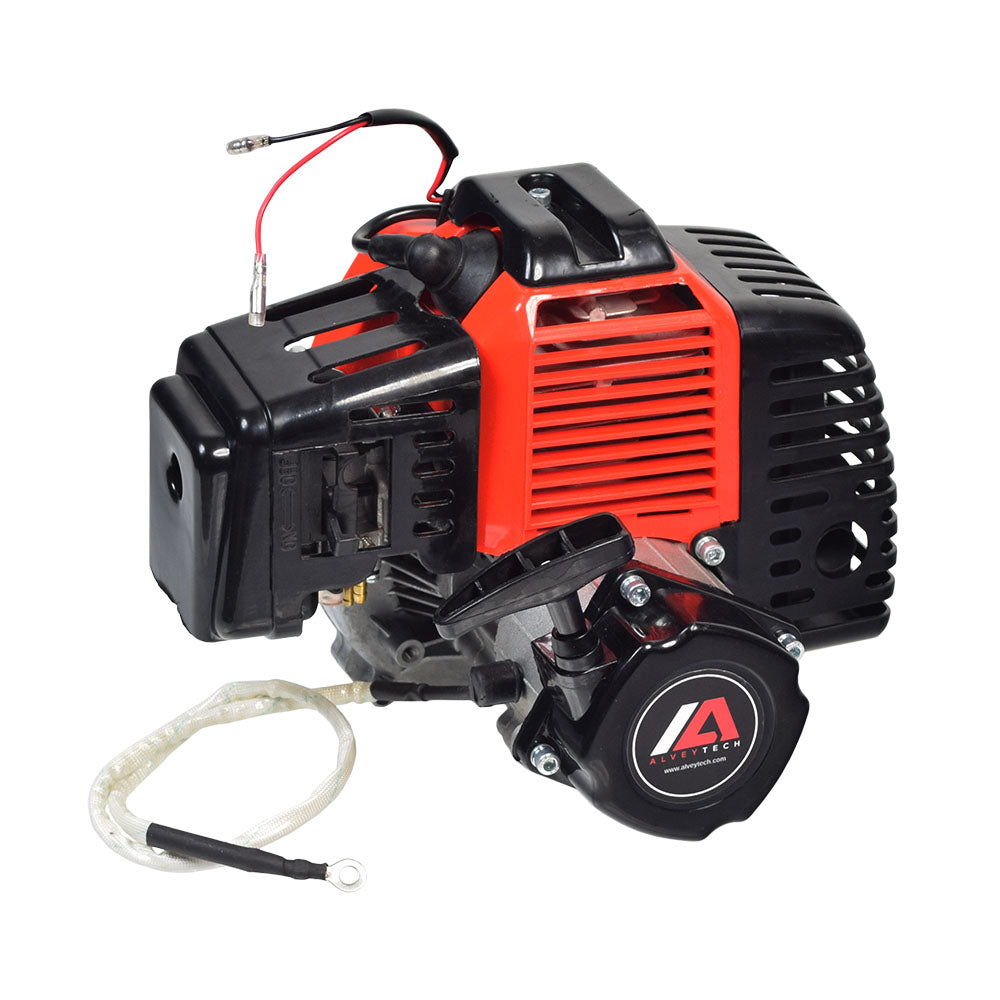

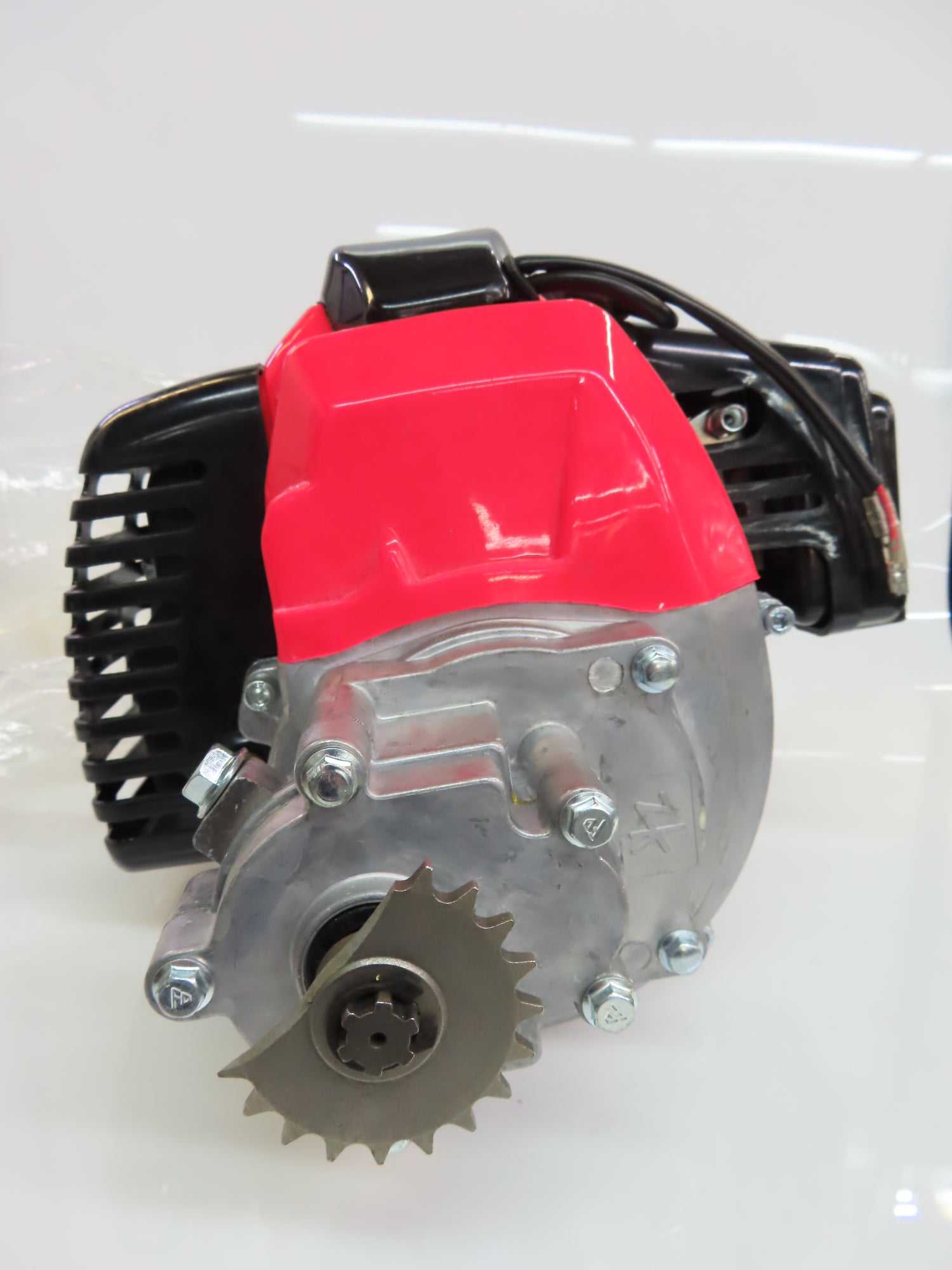

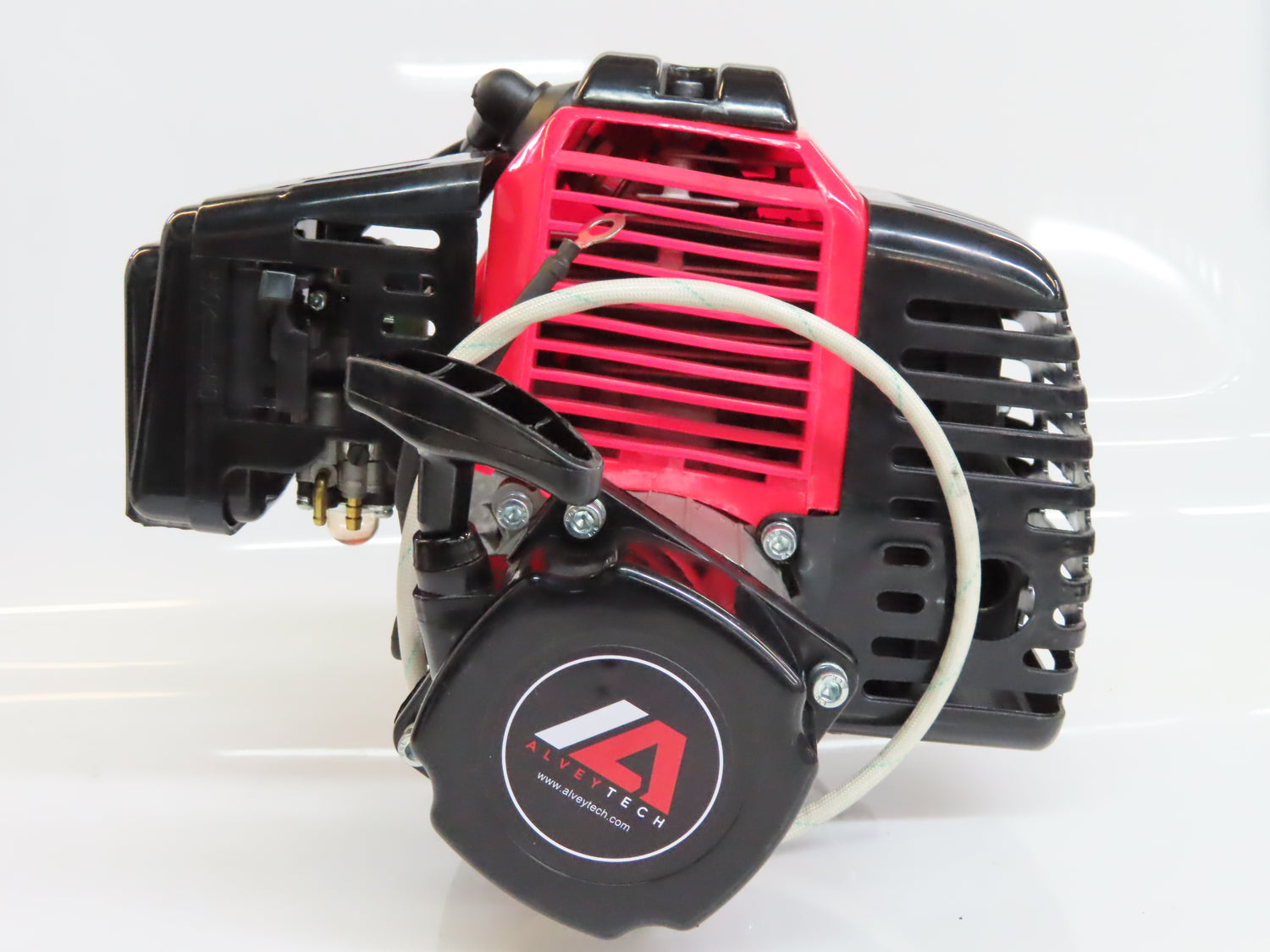

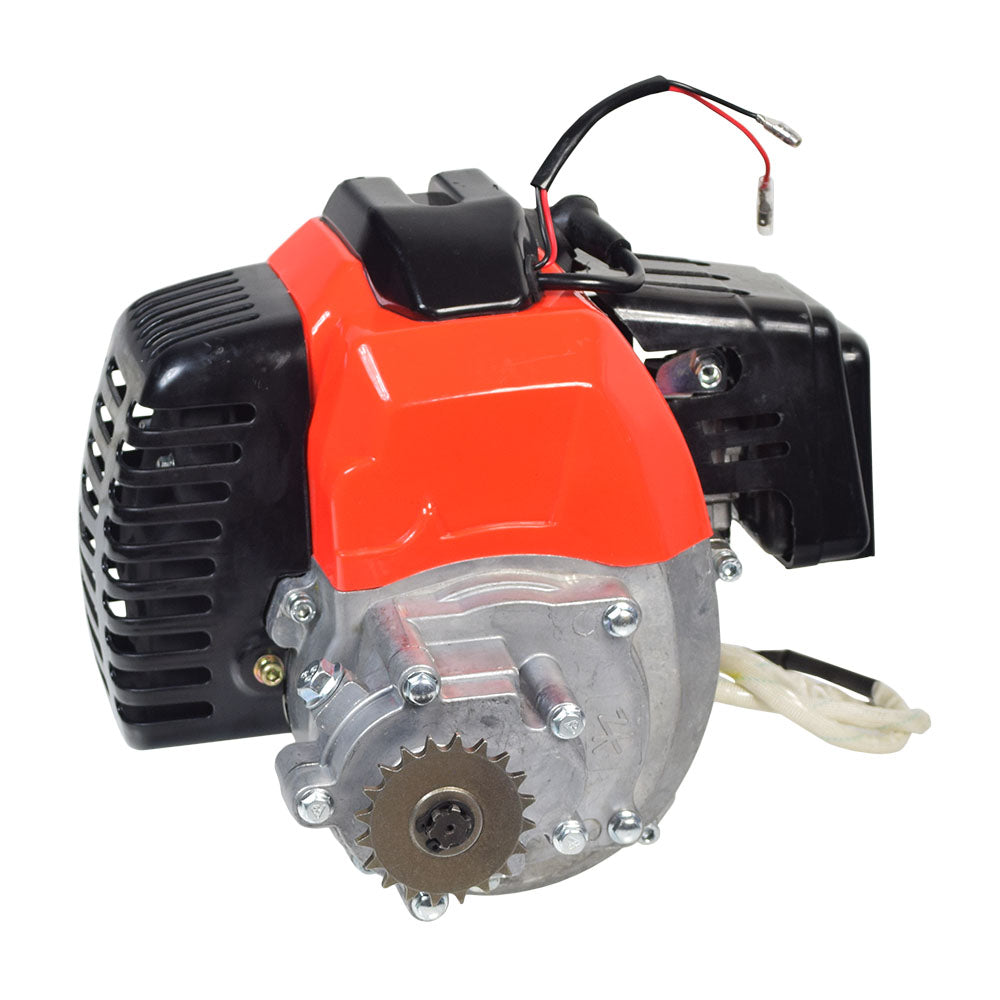

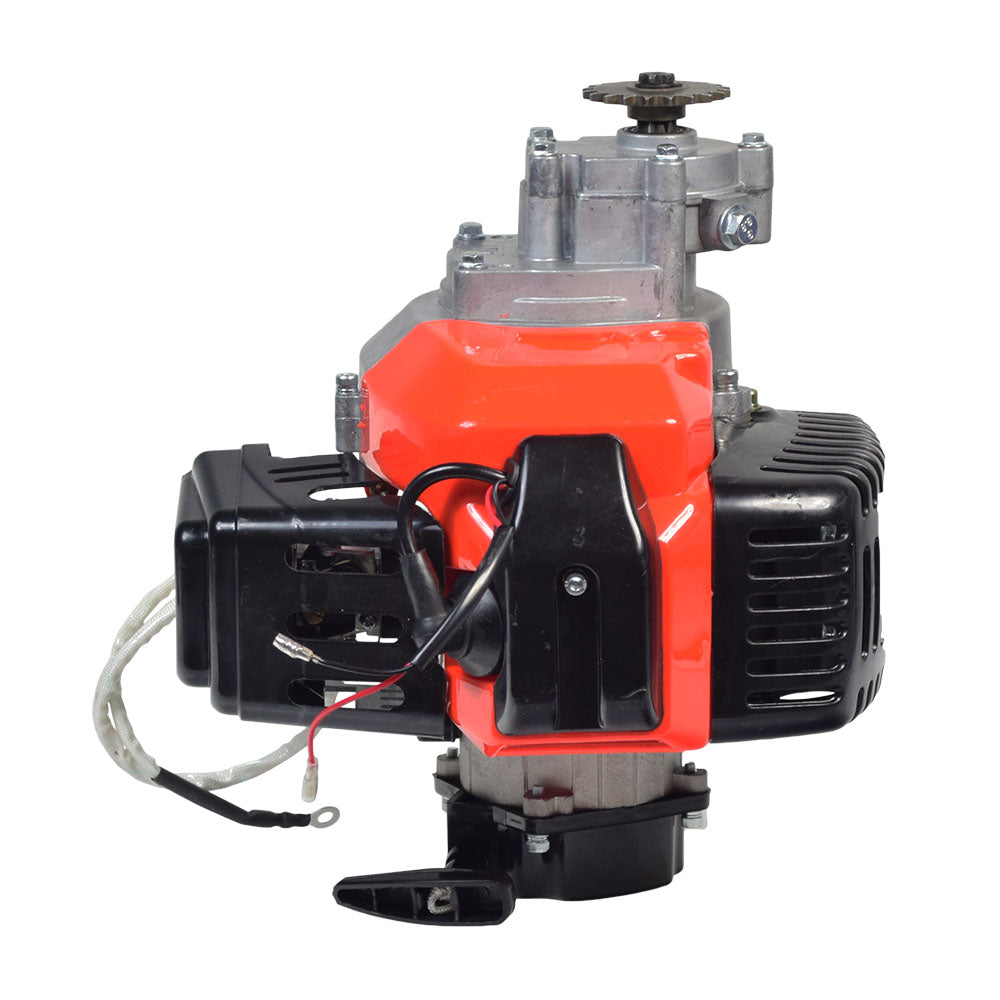

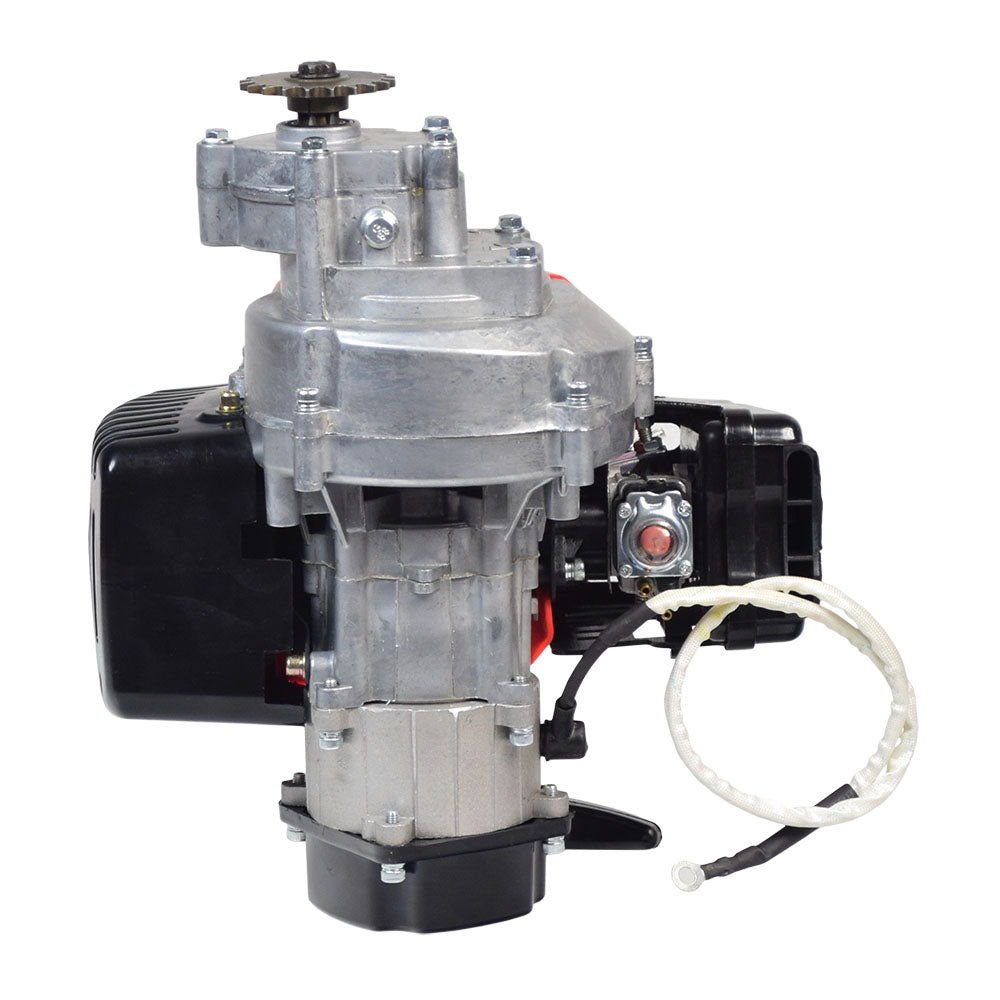

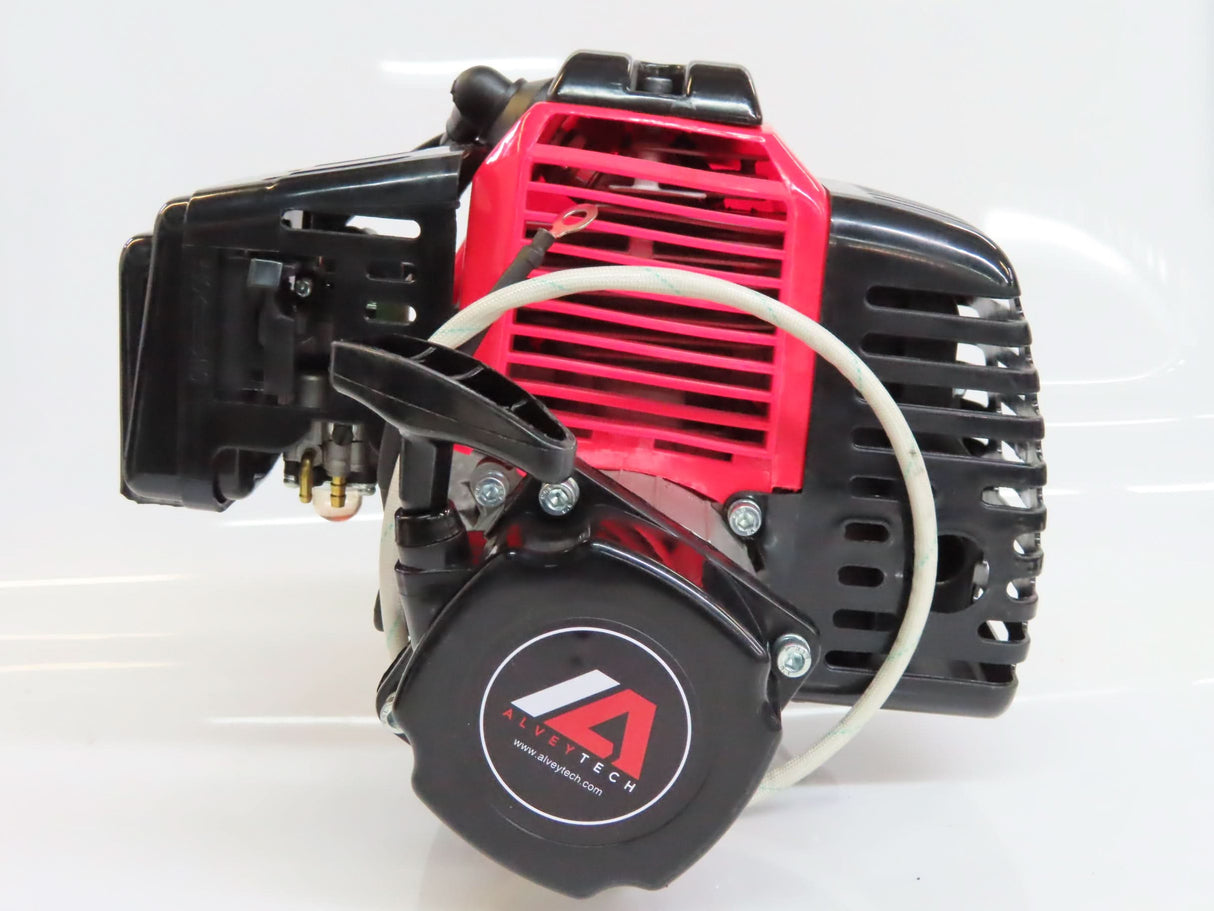

49cc/52cc Scooter Engine with Electric Start (Blemished)

Complete 49cc gas scooter engine with electric and pull start. This engine is identical to 52cc marketed gas scooter engines.

Fits the majority of gas scooters, pocket bikes, and mini choppers configured with electric start. High-quality replacement engine. With the transmission attached, this engine rotates in a clockwise direction when looking at the face of the sprocket.

This engine includes a gear reduction transmission, muffler, air filter, GS Moon pull start, electric starter, clutch pad assembly, and carburetor.

Compatible gas scooter parts for this engine are available at the links below:

Carburetor
Scooter Carburetor for 43cc, 49cc, & 52cc Engines with 15 mm Intake

Ignition Coil
Ignition Coil for 2-Stroke Engines 49cc/52cc with 70mm Mounting Hole Spacing

Exhaust Pipe
Chrome Exhaust Pipe for 33cc, 36cc, 43cc, 49cc & 52cc Engines with 1-9/16" Mounting Holes

Exhaust Muffler Cover
Exhaust Muffler Cover for 49cc/52cc Scooter Engines

Electric Starter
12 Volt Electric Starter for 43cc, 49cc, & 52cc 2-Stroke Engines

Transmission
Standard Scooter Transmission with 20-Tooth (8mm 05T) Chain Sprocket

Mounting Brackets
Engine Mount for 33cc - 52cc 2-Stroke Engines

Two Shoe Clutch Assembly
Clutch Pad Assembly with 2 Shoes

Pull Start
GS Moon Pull Start

PLEASE NOTE:
Note: The transmission is sent without transmission fluid and must be filled by the user. We recommend 80W-85 transmission or gear oil.

This scooter engine is compatible with all 49cc and 52cc applications using OEM engines that visually look like the detailed picture on the item page. This engine is not compatible on any Bladez brand gas scooters.

This 2-stroke 49cc engine is used quite frequently on custom projects and applications. Please ensure this scooter engine will provide the form, fit, and function needed on your custom scooter, go-kart, gas powered bicycle, or other personal transportation vehicle prior to ordering.

⚠ WARNING California Residents: Proposition 65 Warning

Fuel/Oil Mixture Ratio: 25:1

Bottom Mounting Brackets: 10.3 cm

Top Through Hole Diameter M.B.: 0.161"

Bottom Through Hole Diameter M.B.: 0.245"

Exhaust Diameter: 0.589"

White Electric Start Power Wire Length: 75 cm

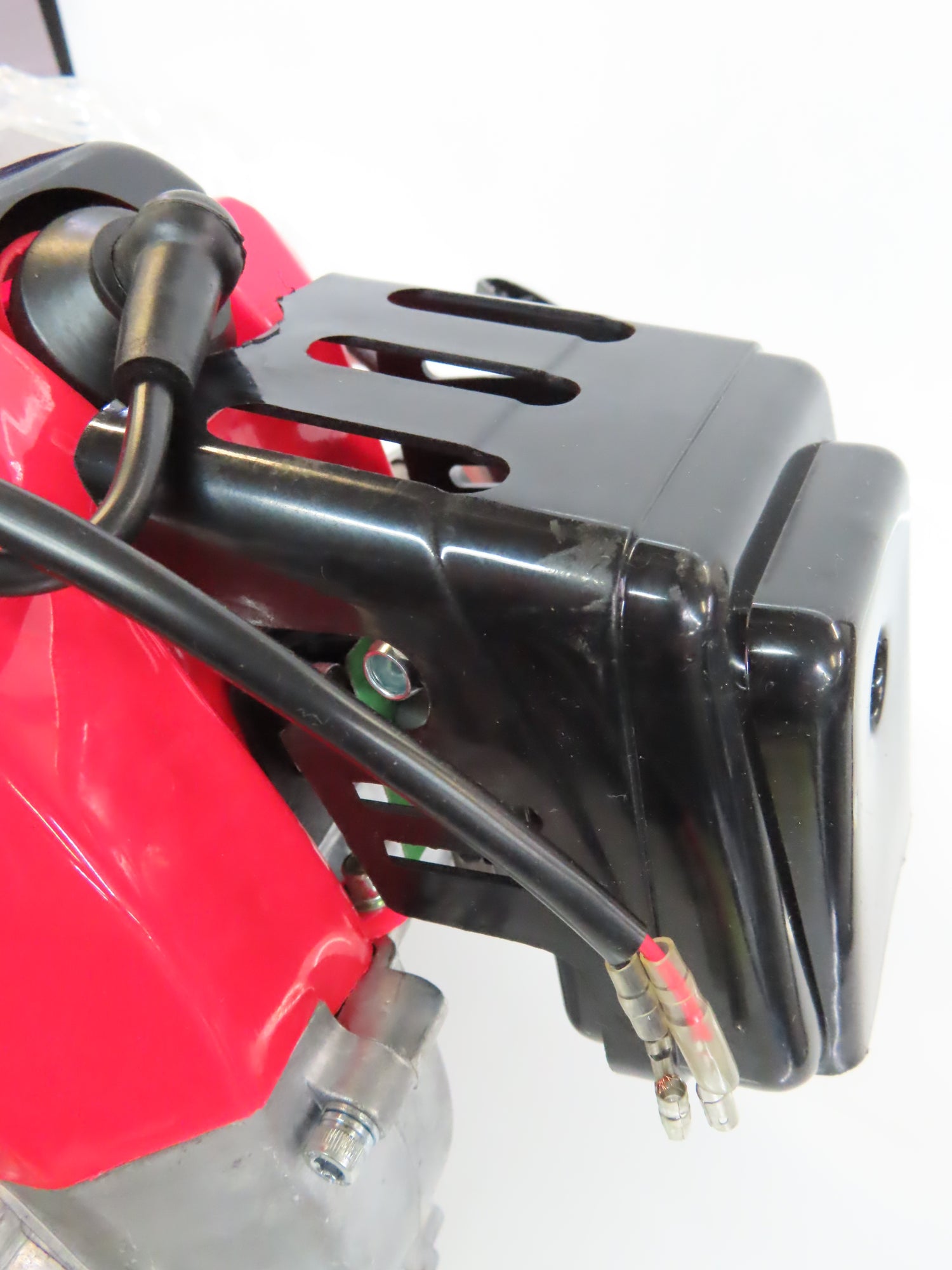

Wiring: Large white wire: electric start. Small black/red wires: kill switch

Length: 26 cm

Width: 23 cm

Height: 19 cm

Clutch Mounting Hole Distance: 7.3 cm

Clutch Mounting Hole Diameter: 0.289"

Clutch Pad: 2 Shoe

Rotation: Clockwise

Carburetor Hole Diameter: 0.213"

Pull Start Mounting Hole Distance: 7.3 cm

Weight: 10.30 lbs
