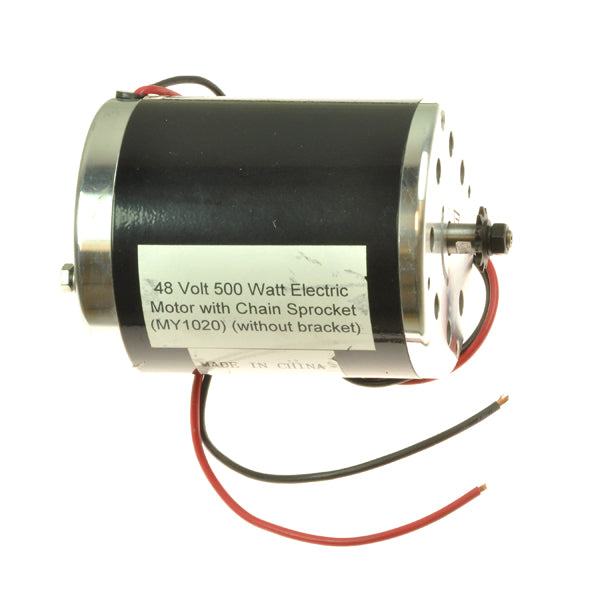

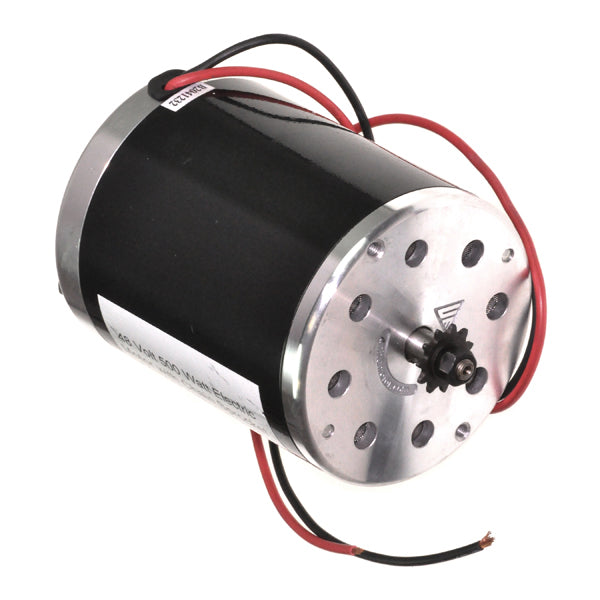

48 Volt 500 Watt Electric Motor with 11 Tooth for #25 Chain Sprocket

Here is a 48 Volt 500 Watt electric motor with 11 teeth for #25 chain sprocket as found on electric scooters and bikes. The #25 is the most commonly found size of chain on today's recreational scooter models.

Our motor is almost functionally and dimensionally identical with the 48 Volt 500 Watt Electric Motor with 11 Tooth 8 mm 05T Chain Sprocket (MY1020) that we also sell. The only difference between these two electric motors is the chain sprocket; this example is a perfect fit for the very common #25 size.

If you need a 48 Volt, 500 Watt electric motor for a homebuilt or custom project, then this is the motor for you.

Note: This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires.

⚠ WARNING California Residents: Proposition 65 Warning

Type: Brush
Voltage: 48 Volt DC
Rated Speed: 2500-3000 Rpm
Rated Current: 13.4 Amp
Sprocket: 11 teeth for #25 Chain
Output: 500 Watts
Weight: 9.25 Lb
Sprocket: Removable Bolt Sprocket
Case Length: 5-5/16" (135 mm)
Case Diameter: 4-1/4" (108 mm)
Drive Shaft Length: 1" (25 mm)
Drive Shaft Diameter: 5/16" (8 mm)
Mounting Hole Distance: 3-3/4" (95 mm)
