4 Key Keypad for Dynamic A-Series Joystick Controllers
$79.99
Unit price
/
Unavailable
Save 10% with coupon code: MONSTER10
4 Key Keypad for Dynamic A-Series Joystick Controllers is backordered and will ship as soon as it is back in stock.
Free Shipping
Free Shipping
- US domestic ship to addresses only.
- Does not include expedited shipping services.
Description
Description

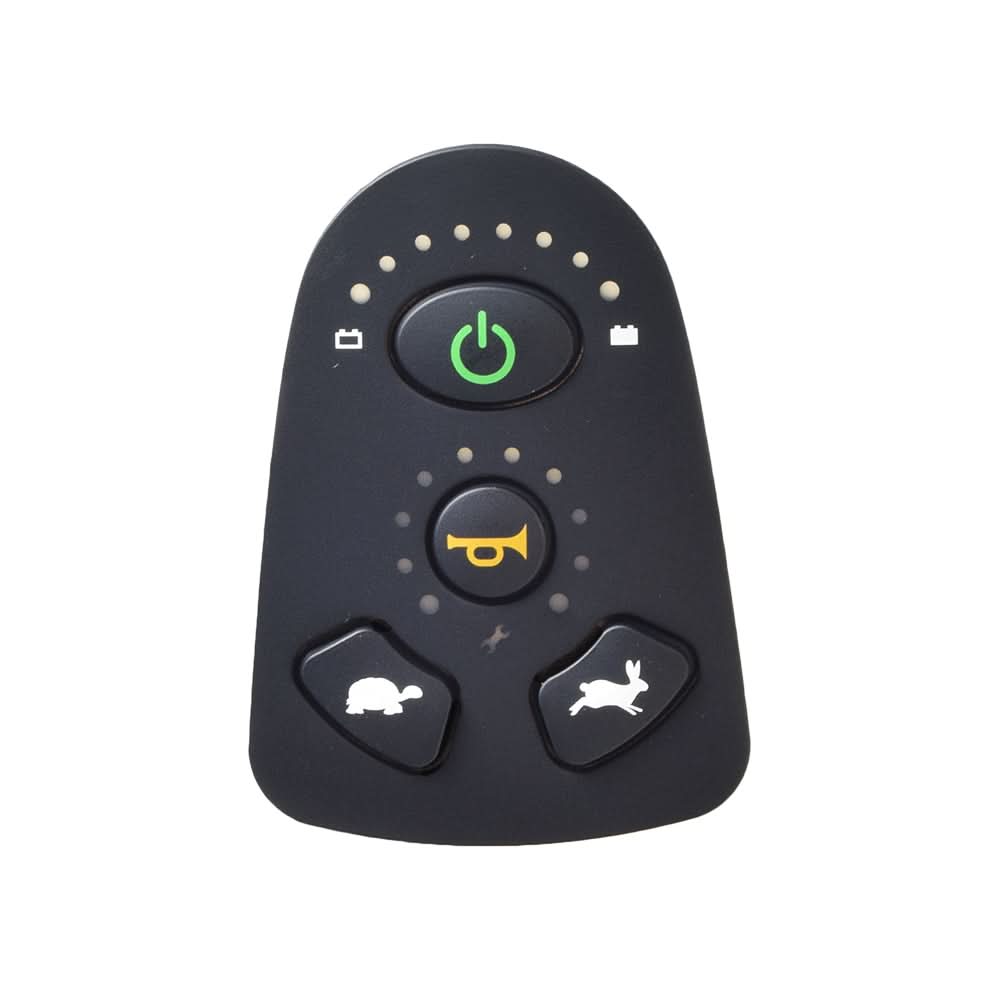

Replacement stick-on keypad for the Dynamic A-Series joystick controller used with all ActiveCare power chair models, some versions of the Invacare Pronto M41, and others.
Includes 4 keys (buttons) as follows: power, horn, rabbit, and turtle.
The Dynamic A-Series is a high quality, yet cost-effective, 50 amp integrated controller for power wheelchairs. It offers class-leading drive performance and is ideal for lightweight or folding chairs and drive only applications.
Installation Instructions:
1. Ensure the wheelchair power is turned off.
2. Pull the gray collar back and disconnect the joystick cable from the joystick.
3. Peel up and remove the existing, damaged keypad from the joystick face plate.
4. Inspect the joystick contacts, face plate, and joystick housing for corrosion and/or damage.
5. Using an alcohol prep pad, remove any adhesive from the joystick face plate.
6. Ensure no adhesive remains around the rim of the joystick face plate.
7. Gently remove any adhesive that may have collected in the lighting or contact cutouts of the joystick face plate.
8. After cleaning, set the joystick aside for ten minutes to allow all alcohol to evaporate from the joystick face plate.
9. Inspect once more for adhesive lumps or residue. If necessary, repeat steps 5-8 to clean the joystick face again if adhesive is present.
10. Remove the backing from the new keypad.
11. Align the bottom edge of the keypad with the bottom edge of the joystick face plate. Ensure the keypad is properly aligned with the joystick face plate before installing. The overlay is not repositionable.
12. Working from the bottom up, gently press the keypad completely into the joystick face plate.
13. Firmly press the keypad into the joystick face plate ensuring proper seal between the adhesive and joystick face plate.
14. Ensure the keypad is completely seated into the joystick face plate and no air pockets or ripples are present around the edge of the keypad.
15. Connect the joystick cable to the joystick.
16. Turn on wheelchair power and test the joystick functions.
17. If the joystick does not function properly, you may have a faulty joystick.
ActiveCare: DC GLA81043
Invacare: 1165880
⚠ WARNING California Residents: Proposition 65 Warning
Includes 4 keys (buttons) as follows: power, horn, rabbit, and turtle.
The Dynamic A-Series is a high quality, yet cost-effective, 50 amp integrated controller for power wheelchairs. It offers class-leading drive performance and is ideal for lightweight or folding chairs and drive only applications.
Installation Instructions:
1. Ensure the wheelchair power is turned off.
2. Pull the gray collar back and disconnect the joystick cable from the joystick.
3. Peel up and remove the existing, damaged keypad from the joystick face plate.
4. Inspect the joystick contacts, face plate, and joystick housing for corrosion and/or damage.
5. Using an alcohol prep pad, remove any adhesive from the joystick face plate.
6. Ensure no adhesive remains around the rim of the joystick face plate.
7. Gently remove any adhesive that may have collected in the lighting or contact cutouts of the joystick face plate.
8. After cleaning, set the joystick aside for ten minutes to allow all alcohol to evaporate from the joystick face plate.
9. Inspect once more for adhesive lumps or residue. If necessary, repeat steps 5-8 to clean the joystick face again if adhesive is present.
10. Remove the backing from the new keypad.
11. Align the bottom edge of the keypad with the bottom edge of the joystick face plate. Ensure the keypad is properly aligned with the joystick face plate before installing. The overlay is not repositionable.
12. Working from the bottom up, gently press the keypad completely into the joystick face plate.
13. Firmly press the keypad into the joystick face plate ensuring proper seal between the adhesive and joystick face plate.
14. Ensure the keypad is completely seated into the joystick face plate and no air pockets or ripples are present around the edge of the keypad.
15. Connect the joystick cable to the joystick.
16. Turn on wheelchair power and test the joystick functions.
17. If the joystick does not function properly, you may have a faulty joystick.
ActiveCare: DC GLA81043
Invacare: 1165880
⚠ WARNING California Residents: Proposition 65 Warning
Reviews (4)
Reviews (4)
Specifications
Specifications
Compatibility
Compatibility
- ActiveCare Medical Catalina
- ActiveCare Medical Cobalt
- ActiveCare Medical Cobalt X23
- ActiveCare Medical Intrepid P22
- ActiveCare Medical Intrepid
- ActiveCare Medical Medalist P22
- ActiveCare Medical Medalist
- ActiveCare Medical Renegade P24
- ActiveCare Medical Renegade
- ActiveCare Medical Wildcat 450
- ActiveCare Medical Wildcat
- Invacare Pronto M41 with SureStep
