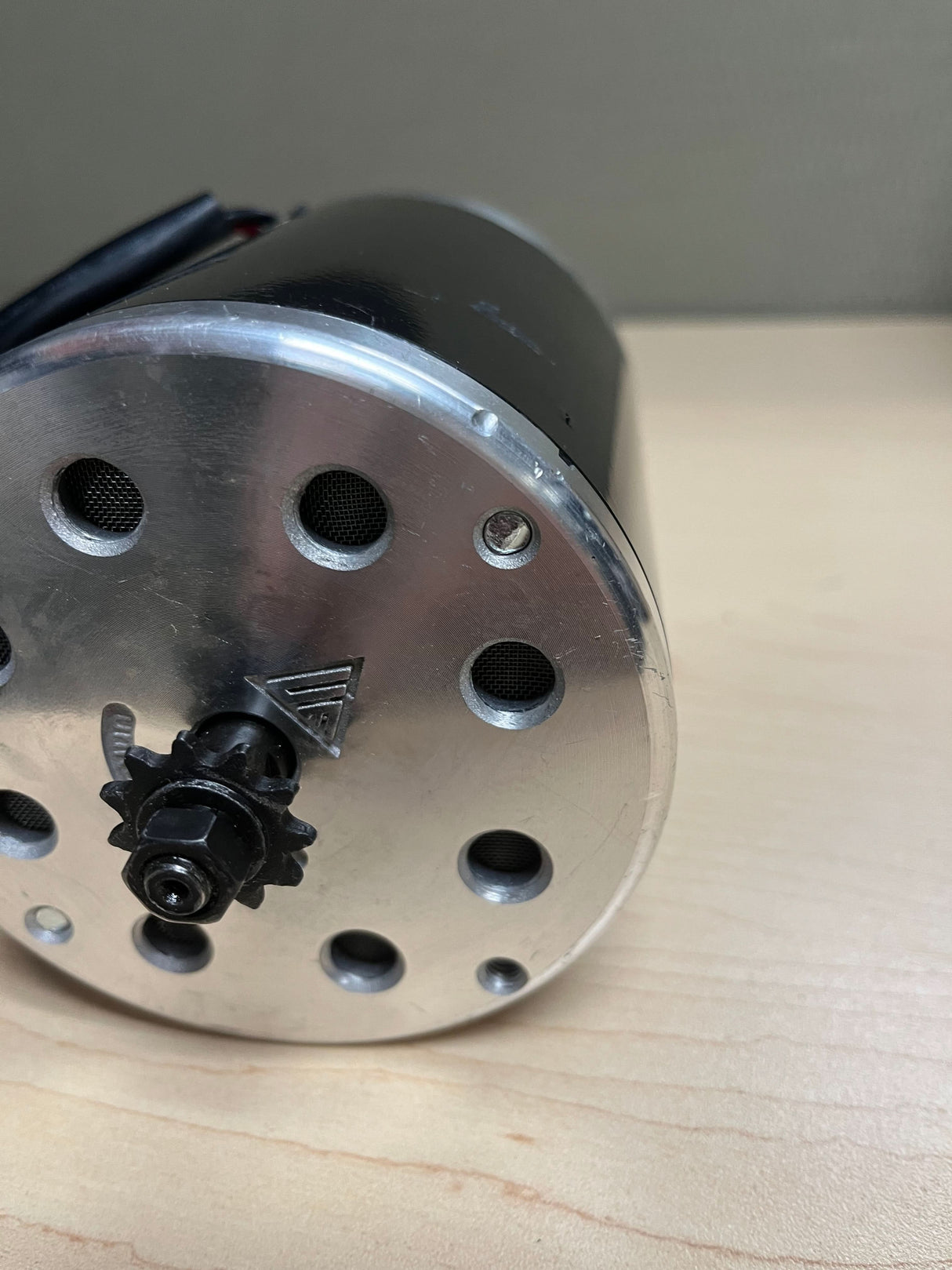

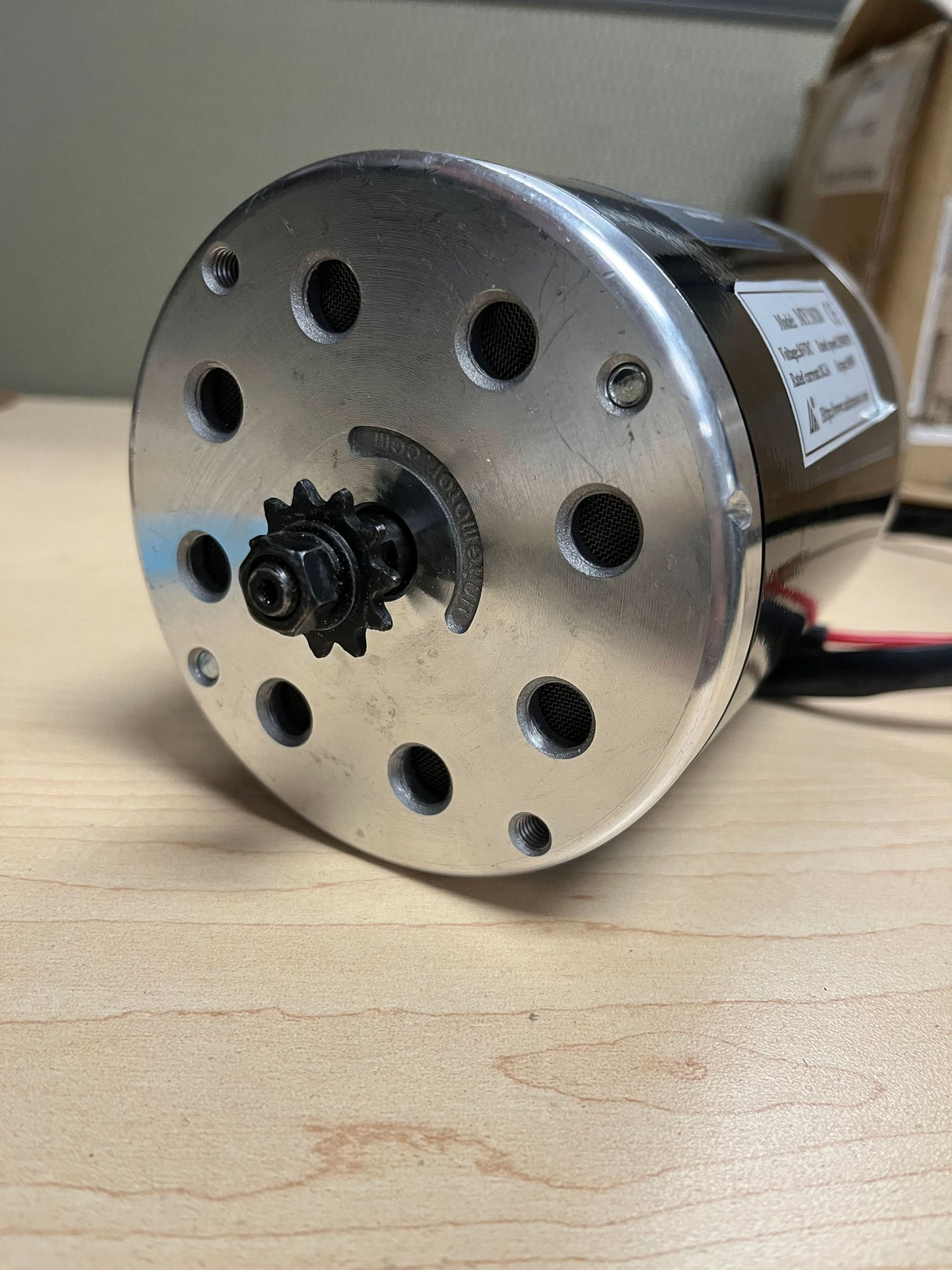

36 Volt 500 Watt MY1020 Electric Motor with #25 Chain Sprocket for Scooters, Dirt Bikes, & Go-Karts (Blemished)
36 Volt 500 Watt MY1020 Electric Motor with #25 Chain Sprocket for Scooters, Dirt Bikes, & Go-Karts (Blemished) is backordered and will ship as soon as it is back in stock.
Free Shipping
Free Shipping
- US domestic ship to addresses only.
- Does not include expedited shipping services.
Key Features
- Note: This motor has some minor scratches and scuffing on the motor case.
- 36 volt 500 watt
- 11 tooth #25 chain sprocket
- Left or right rotation by reversing wires
- MY1020 motor for scooters, dirt bikes, & go-karts
- 2500-3000 RPM
Description
Description
Note: This motor has some minor scratches and scuffing on the motor case.
Our 36 volt 500 watt MY1020 electric scooter motor with #25 chain sprocket is a high powered 36 volt motor is compatible with many brands of branded and generic electric scooters, dirt bikes, and go-karts, including the Minimoto Go-Kart, Razor MX500, and the X-Treme X-560.
Note: This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires.
Razor: W15128190030
Minimoto: 23291-MIS-010.
⚠ WARNING California Residents: Proposition 65 Warning
Reviews (0)
Reviews (0)
Specifications
Specifications
Model: MY1020
Type: Brush
Voltage: 36 volt DC
Torque: 1.90 N-m
Rated speed: 2500 RPM
Rated Current: 18.3 amp
Sprocket: 11 tooth #25 chain sprocket
Output: 500 watts
Case Length: 5-5/16" (135 mm)
Case Diameter: 4-1/4" (108 mm)
Drive Shaft Length: 1" (25 mm)
Drive Shaft Diameter: 5/16" (8 mm)
Mounting Hole Distance: 3-3/4" (95 mm)
