Unite Motor  |  SKU: C80-8749  | Razor: 13112099030

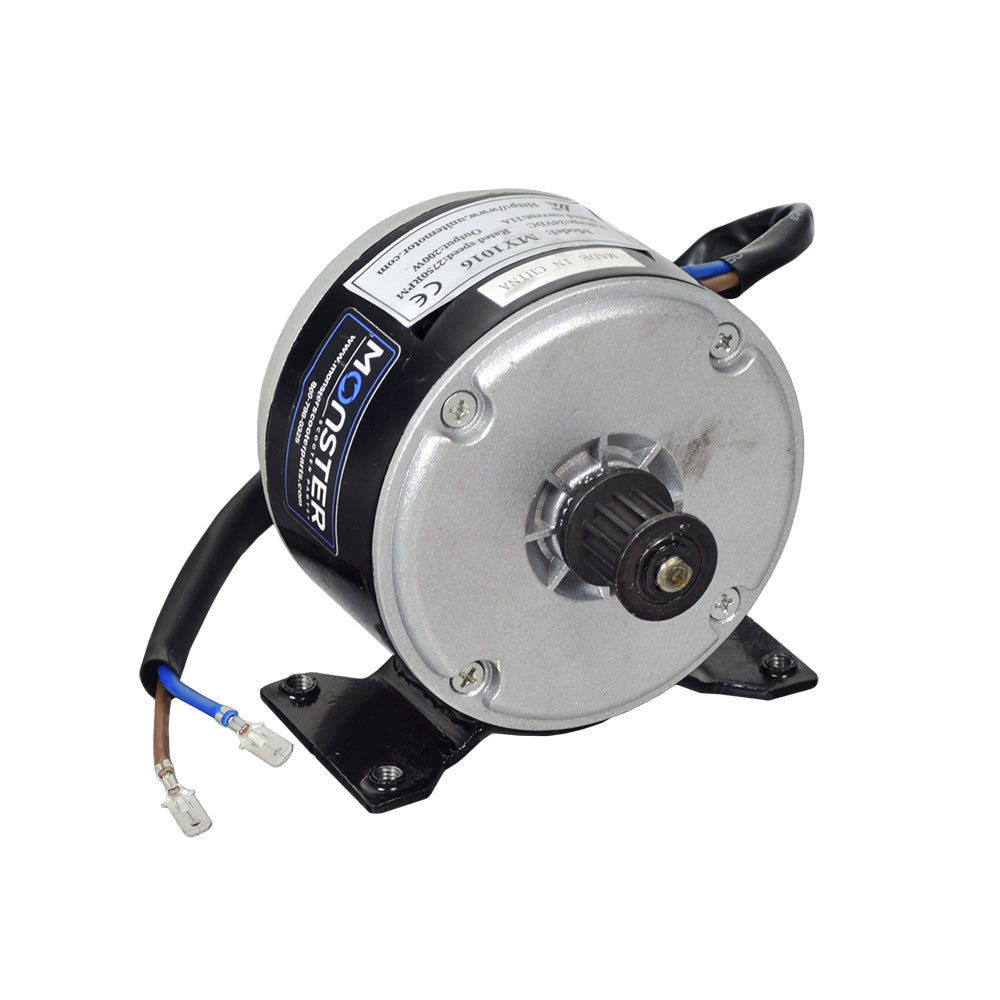

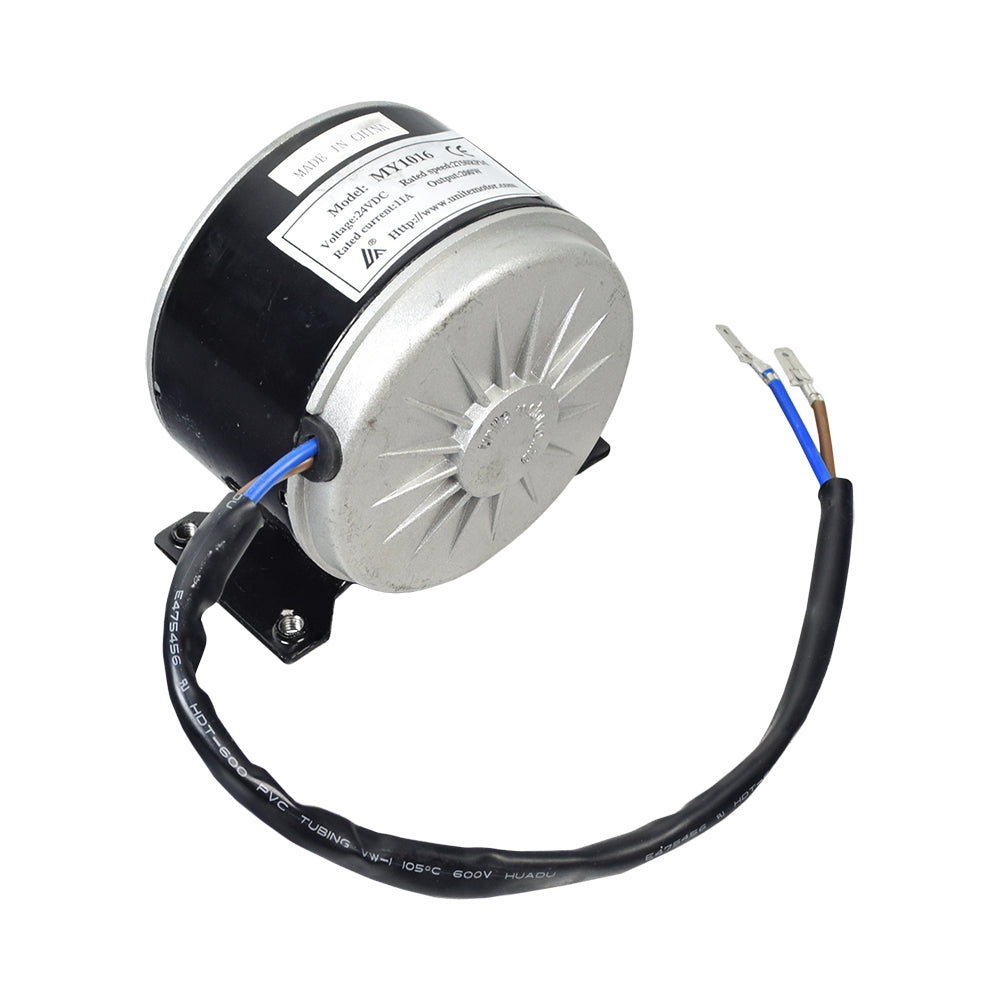

24 Volt 200 Watt MY1016 Electric Motor with 5M Belt Sprocket and Bracket

$36.54 $42.99

Veterans Day Sale - Save 11% with Coupon Code: VET11

This item has a 30 day warranty. Warranty Policy

Free Shipping

  • US domestic ship to addresses only.
  • Does not include expedited shipping services.
Key Features
  • 24 volt 200 watt

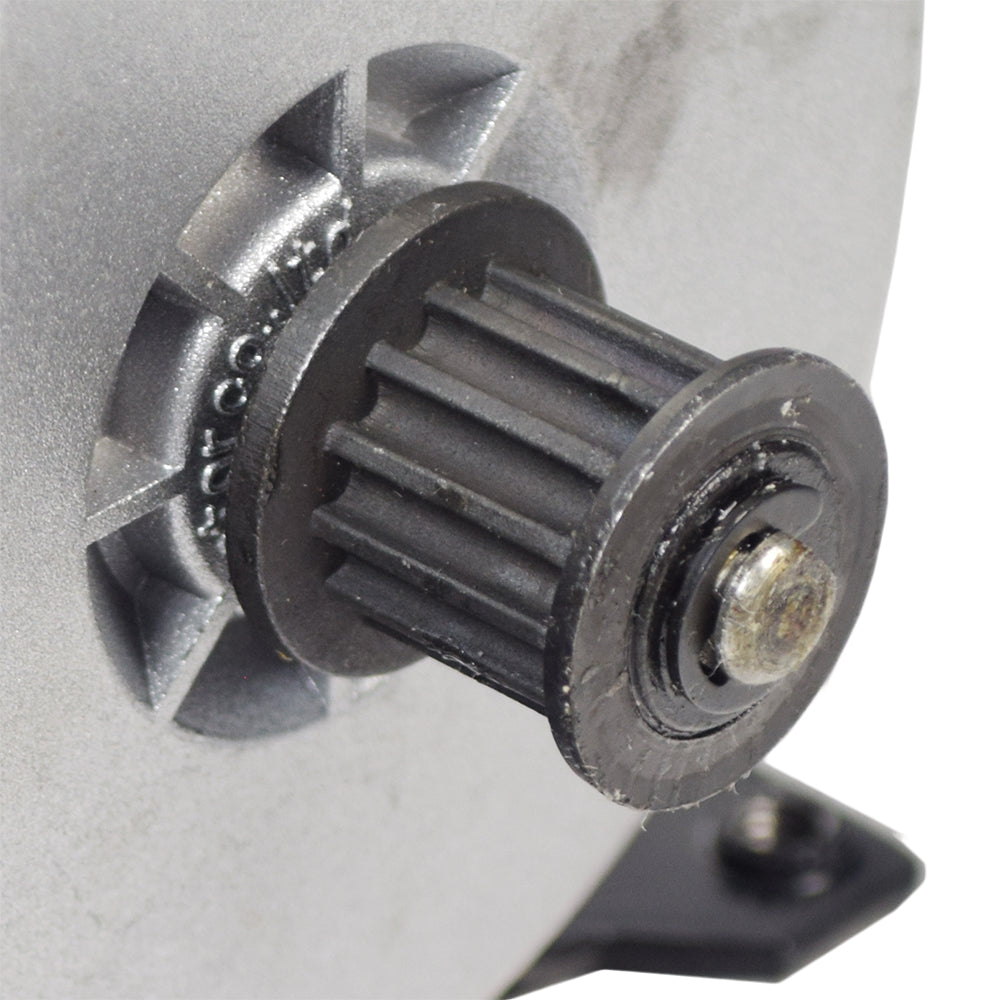

  • 5M belt sprocket
  • 2750 RPM
  • MY1016 motor
  • Bracket included

Description

24 volt 200 watt MY1016 electric motor is a small, powerful, and affordable scooter motor that is a wise choice for your custom build or home garage scooter project.

This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires.

Razor: 13112099030

⚠ WARNING California Residents: Proposition 65 Warning

Reviews (0)

Specifications

Model: MY1016
Type: Brush
Voltage: 24 volt DC
Torque: 0.68 N-m
Rated Speed: 2750 RPM +/- 5%
Rated Current: 11.0A
Sprocket: 5M belt
Output: 200 watts
Case Length: 2-13/16" (71 mm)
Case Diameter: 3-7/8" (99 mm)
Bolt Hole Distance (Adjacent): 3-9/16" (90 mm)
Bolt Hole Distance (Cross Bracket): 1-9/16" (40 mm)
