Monster Scooter Parts | SKU:
X98-0829
Electric Scooter Parts: 24 Volt 500W Universal Voltage & Speed Controller
$17.25
$22.99
Unit price
/
Unavailable
Electric Scooter Parts: 24 Volt 500W Universal Voltage & Speed Controller is backordered and will ship as soon as it is back in stock.
$10 off orders $50+ with coupon code: TENOFF
Free Shipping
Free Shipping
- US domestic ship to addresses only.
- Does not include expedited shipping services.
Electric Scooter Parts: 24 Volt 500W Universal Voltage & Speed ...
$17.25
$22.99
Unit price
/
Unavailable
Description
Description

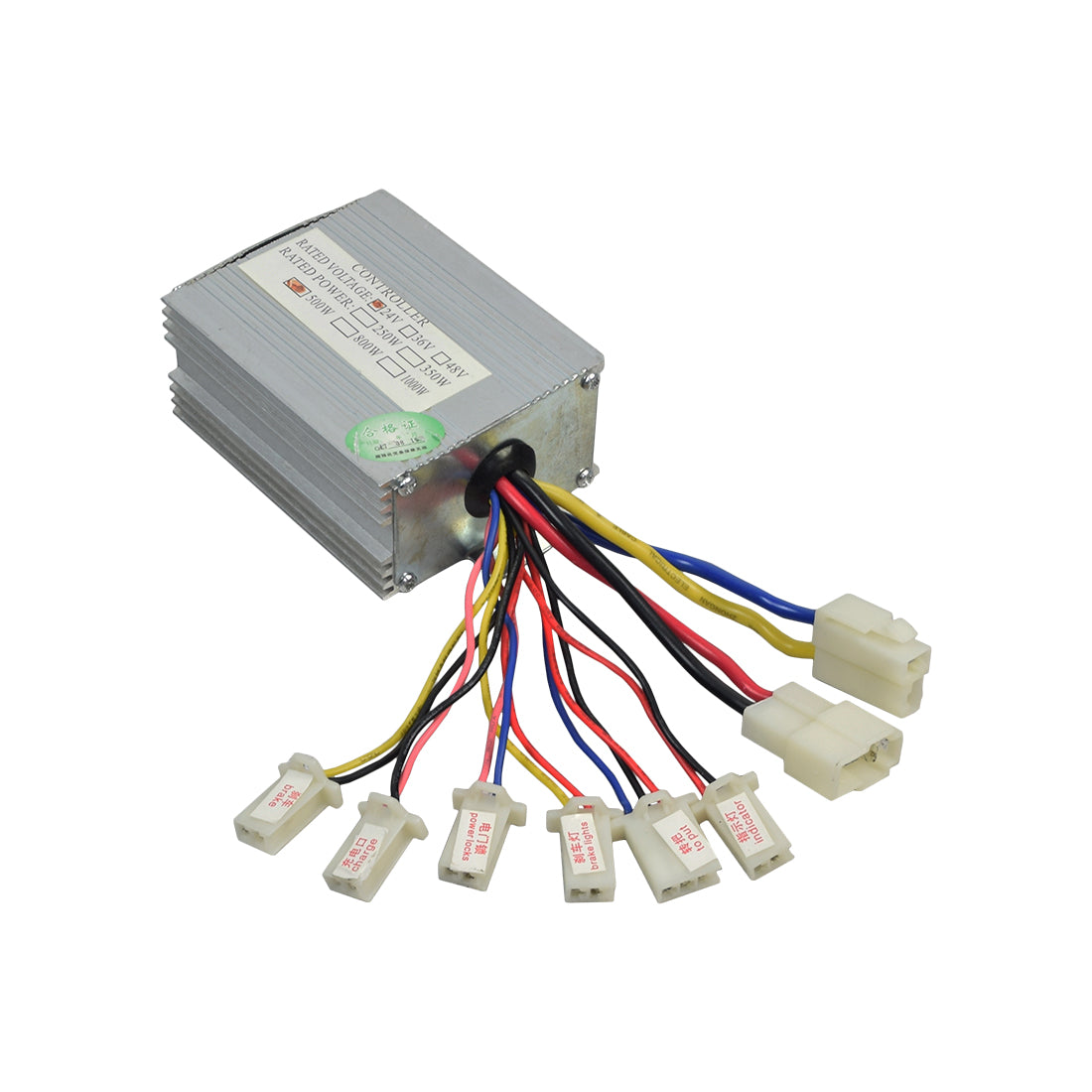

24 Volt 500 Watt voltage/speed controller for electric scooters, bikes, go karts, and mopeds.
This controller comes with the most common wiring connections found on electric scooters, and is compatible with a wide range of applications and electric scooter parts. However, depending on your make and model, you may need to cut and splice a few but not all of the wires.
Compatible on most 24 Volt products equipped with 180-500 Watt motors.
Controller connections as follows:
Battery Connector (Black & Red Wires, Thick)
Battery wiring. Black to Black, Red to Red.
Motor Connector (Blue & White Wires, Thick)
Motor wiring. Blue (controller) to Blue (existing wiring), White (controller) to White/Yellow/Brown (existing wiring).
Charge Connector (Black and Red Wires, Thin)
Battery charger connector. Black to Black, Red to Red.

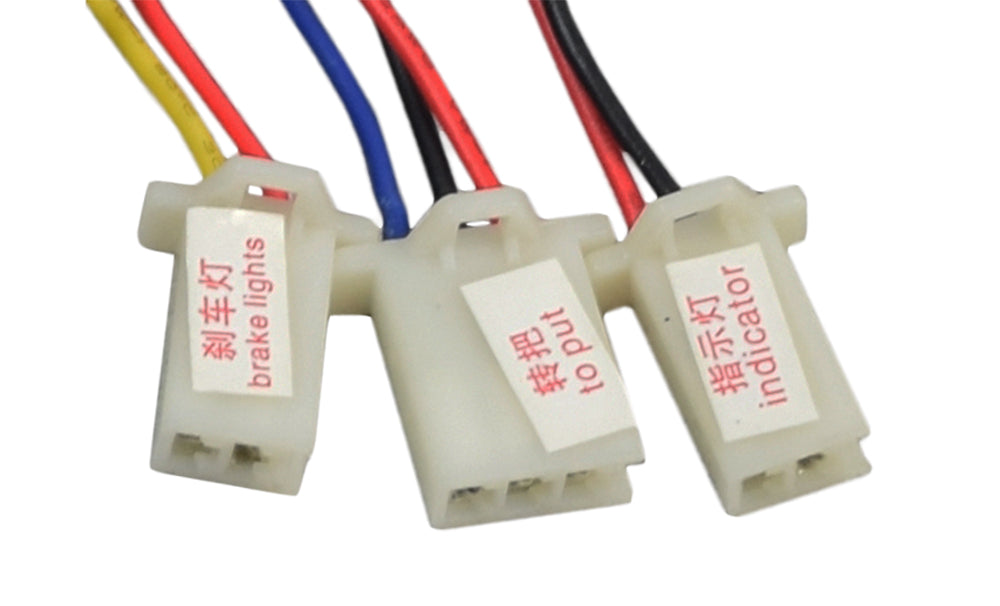

Derailleur Connector (Red, Black, & Blue Wires, Thin)
Hand throttle connector, 3-wire. Plug your 3-wire hand throttle wires into the three prongs on this connector. Your product's throttle wiring may be included in an existing 6 pin connector on your wiring harness. Black to Black, Red to Red, Blue to the third wire on your hand throttle (Blue or Green or other).
Lock Connector (Blue & Red Wires, Thin)
Key switch connector. Connect to your product's "lock" connector, or hard wire to your key switch wiring. Wire color connection not critical, but Blue to Blue, Red to Red if they match.
Brake Connector (Black & Yellow Wires, Thin)
Brake connector. Your product's brake wires may be included in an existing 6 pin connector on your wiring harness. Black to Black/Red and Yellow to Yellow.
Brake Signal Connector (Black & Red Wires, Thin)
Brake light connector. Black to Black, Red to Red.
PLEASE NOTE:
Due to the delicate nature of voltage controllers, and the care that must be taken when making wiring connections, it is Monster Scooter Parts company policy that all voltage and speed controller sales are final. Please ensure you are comfortable making delicate wiring connections and cutting and splicing wires prior to ordering. Our entire return policy can be viewed at the link below:
Monster Scooter Parts Return Policy
⚠ WARNING California Residents: Proposition 65 Warning
This controller comes with the most common wiring connections found on electric scooters, and is compatible with a wide range of applications and electric scooter parts. However, depending on your make and model, you may need to cut and splice a few but not all of the wires.
Compatible on most 24 Volt products equipped with 180-500 Watt motors.
Controller connections as follows:
Battery Connector (Black & Red Wires, Thick)
Battery wiring. Black to Black, Red to Red.
Motor Connector (Blue & White Wires, Thick)
Motor wiring. Blue (controller) to Blue (existing wiring), White (controller) to White/Yellow/Brown (existing wiring).
Charge Connector (Black and Red Wires, Thin)
Battery charger connector. Black to Black, Red to Red.
Derailleur Connector (Red, Black, & Blue Wires, Thin)
Hand throttle connector, 3-wire. Plug your 3-wire hand throttle wires into the three prongs on this connector. Your product's throttle wiring may be included in an existing 6 pin connector on your wiring harness. Black to Black, Red to Red, Blue to the third wire on your hand throttle (Blue or Green or other).
Lock Connector (Blue & Red Wires, Thin)
Key switch connector. Connect to your product's "lock" connector, or hard wire to your key switch wiring. Wire color connection not critical, but Blue to Blue, Red to Red if they match.
Brake Connector (Black & Yellow Wires, Thin)
Brake connector. Your product's brake wires may be included in an existing 6 pin connector on your wiring harness. Black to Black/Red and Yellow to Yellow.
Brake Signal Connector (Black & Red Wires, Thin)
Brake light connector. Black to Black, Red to Red.
PLEASE NOTE:
Due to the delicate nature of voltage controllers, and the care that must be taken when making wiring connections, it is Monster Scooter Parts company policy that all voltage and speed controller sales are final. Please ensure you are comfortable making delicate wiring connections and cutting and splicing wires prior to ordering. Our entire return policy can be viewed at the link below:
Monster Scooter Parts Return Policy
⚠ WARNING California Residents: Proposition 65 Warning
Reviews (2)
Reviews (2)
Specifications
Specifications
Voltage: 24 Volts
Current: 21 Amps maximum
