Unite Motor | SKU:
C80-8751-X01
24 Volt 500 Watt MY1020 Electric Motor with 11 Tooth 8mm 05T Chain Sprocket (Blemished)
$84.99
Unit price
/
Unavailable
24 Volt 500 Watt MY1020 Electric Motor with 11 Tooth 8mm 05T Chain Sprocket (Blemished) is backordered and will ship as soon as it is back in stock.
This item is not returnable. Return Policy
Free Shipping
Free Shipping
- US domestic ship to addresses only.
- Does not include expedited shipping services.
Key Features
- 24 volt 500 watt
- 11 tooth 8 Mm 05T chain sprocket
- Left or right rotation by reversing wires
- MY1020 motor
- 2500 RPM
Description
Description

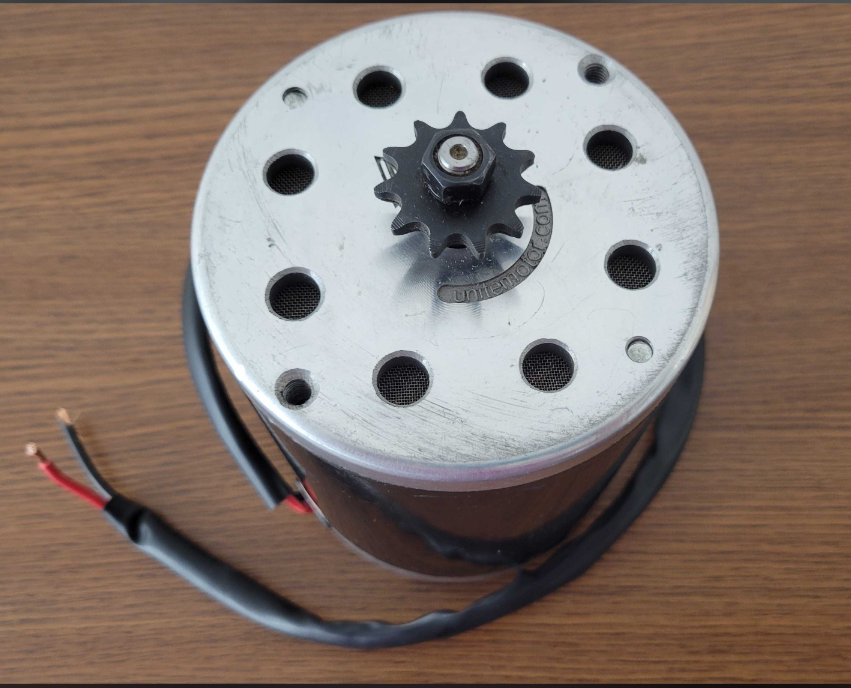

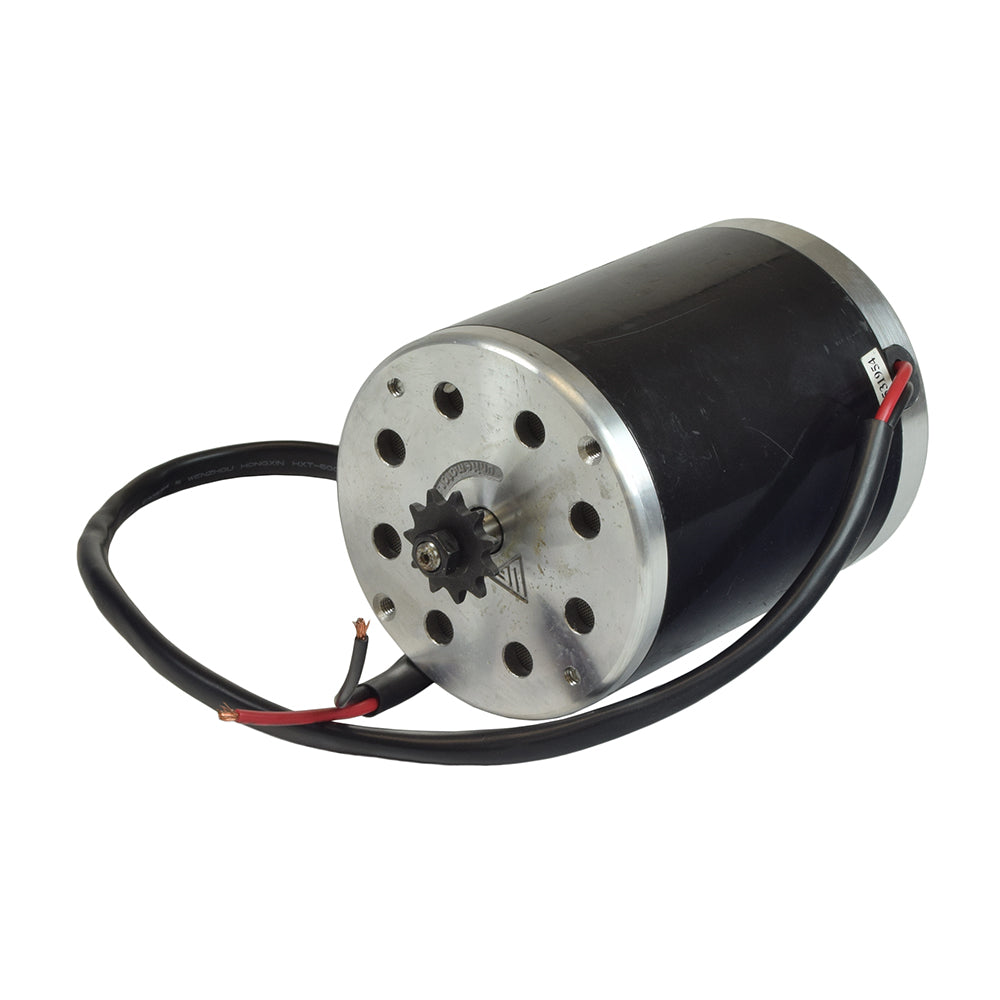

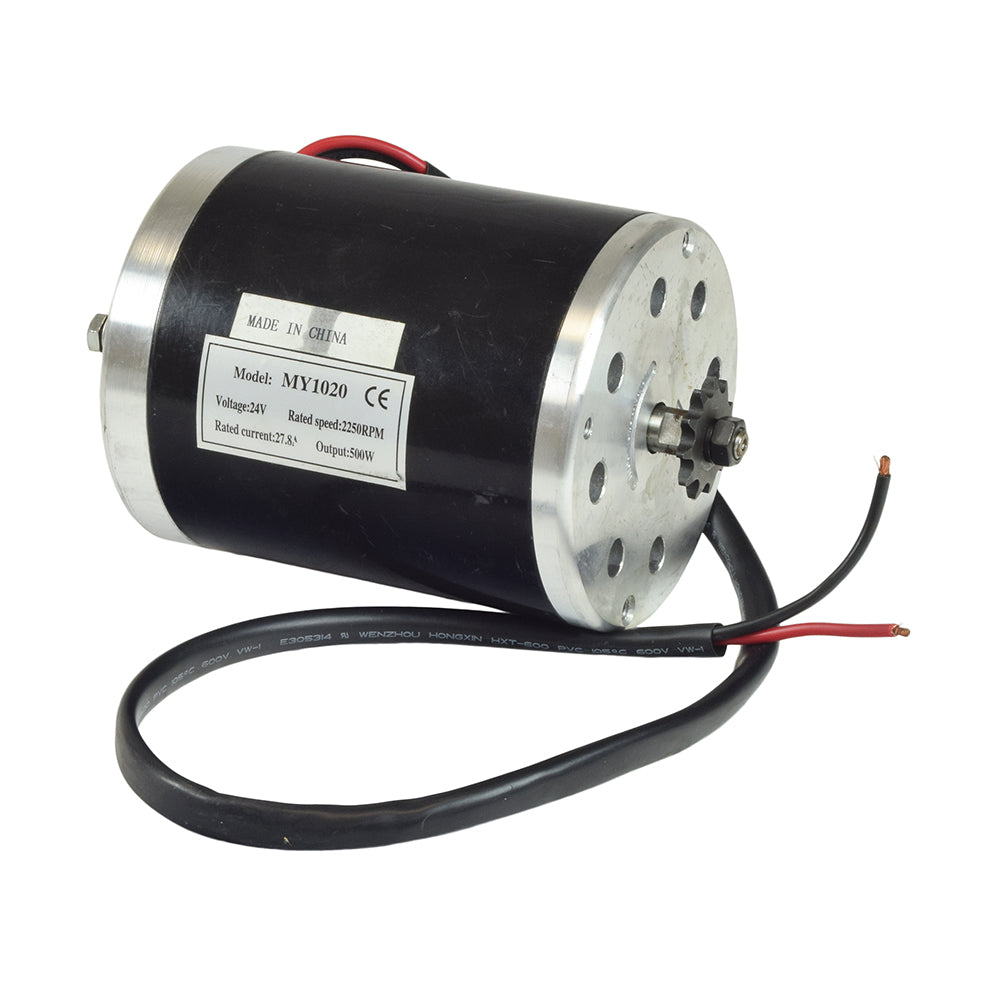

24 volt 500 watt MY1020 electric scooter and bike motor with 11 tooth 8 mm 05T chain sprocket.

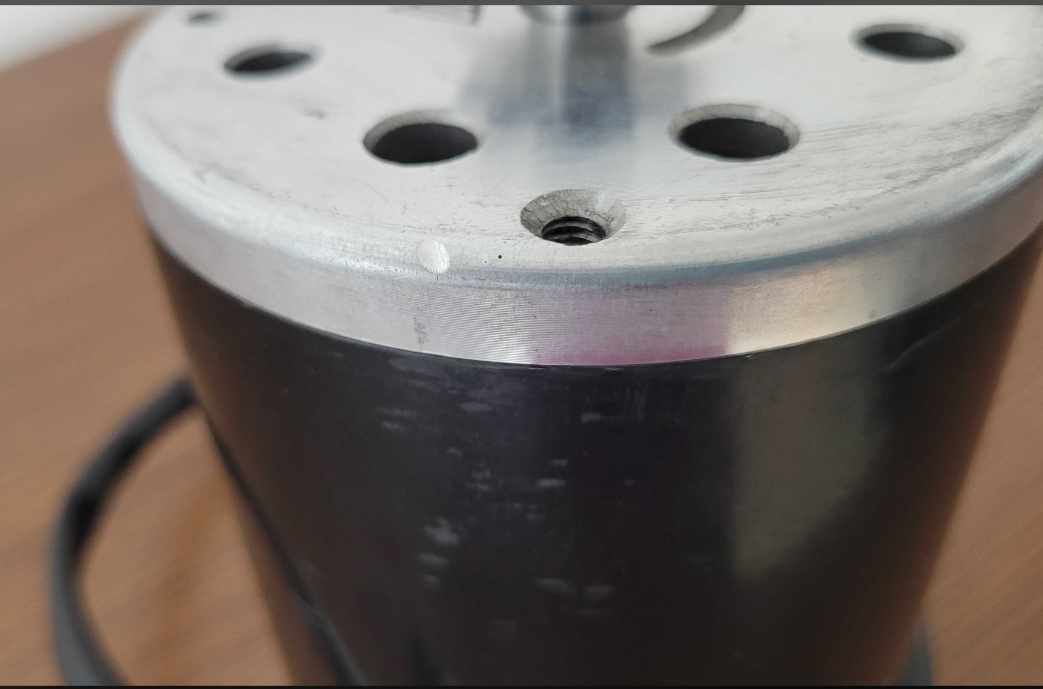

Two mounting holes on each front and rear face, four mounting holes total. Mounting hole center to center distance is 3-3/4".
Note: This 24V motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's black and red power wires.
⚠ WARNING California Residents: Proposition 65 Warning
Two mounting holes on each front and rear face, four mounting holes total. Mounting hole center to center distance is 3-3/4".
Note: This 24V motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's black and red power wires.
⚠ WARNING California Residents: Proposition 65 Warning
Reviews (0)
Reviews (0)
Specifications
Specifications
Model: MY1020
Type: Brush
Voltage: 24 volt DC
Rated Speed: 2500 RPM
Torque: 1.90 N-m
Rated Current: 27.4 Amp
Sprocket: 8 Mm 05T Chain, 11 Tooth
Output: 500 watts
Case Length: 5-5/16" (135 mm)
Case Diameter: 4-1/4" (108 mm)
Drive Shaft Length: 1" (25 mm)
Drive Shaft Diameter: 5/16" (8 mm)
Mounting Hole Distance: 3-3/4" (95 mm)
